Product	VC-231G
Hardware Specifications
LAN Ports	1 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Port	1 x VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port	Additional splitter for POTS connection
Dimensions (W x D x H)	97 x 70 x 26 mm
Weight	184g
Power Requirements	DC 5V, 2A external power

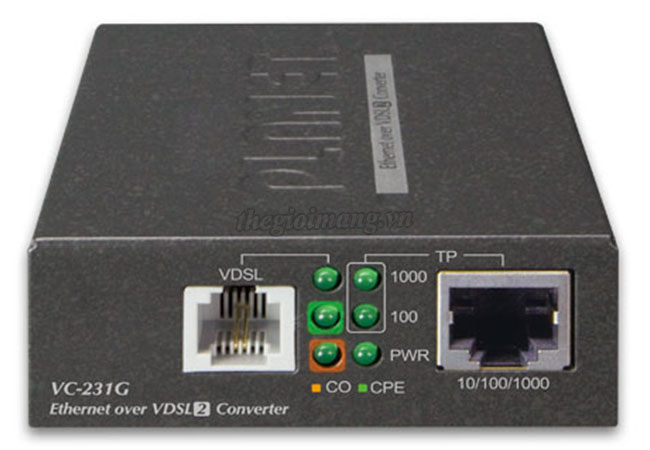

LED Indicators	1 x power: Green 1 x 1000BASE-T LNK/ACT: Green 1 x 100BASE-TX LNK/ACK: Green 1 x VDSL:Green 1 x CO: Green 1 x CPE: Green
Housing	Metal

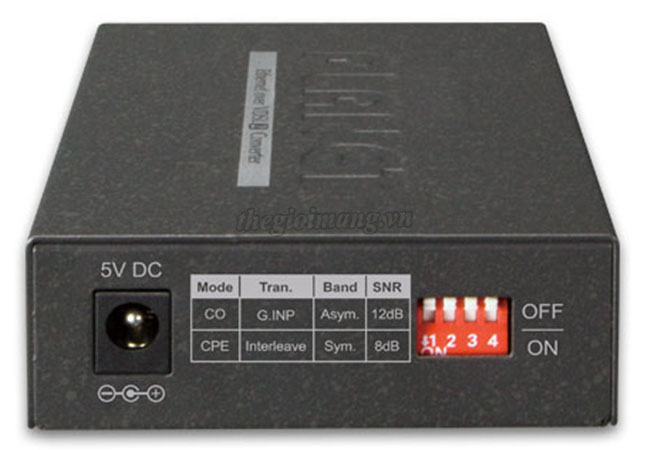

DIP Switch & Functionality	4-position DIP switch CO or CPE mode selectable Selectable G.INP and interleaved mode Selectable target Band plan Selectable target SNR mode
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Maximum Packet Size	1522bytes
System Specifications
VDSL Compliance	VDSL-DMT: ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.vectoring ITU-T G.998 G.INP
ADSL Compliance	Capable of ADSL2/2+ standard: ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbp
Performance*(Downstream/Upstream)	CO, Interleave, Asym, 8dB: 　200M -> 190Mbps/87Mbps 　400M -> 161Mbps/60Mbps 　600M -> 118Mbps/36Mbps 　800M -> 59Mbps/24Mbps 　1000M -> 47Mbps/7Mbps 　1200M -> 39Mbps/4Mbps 　1400M -> 25Mbps/4Mbps CO, Interleave, Sym, 8dB: 　200M -> 147Mbps/139Mbps 　400M -> 112Mbps/110Mbps 　600M -> 75Mbps/73Mbps 　800M -> 44Mbps/44Mbps 　1000M -> 26Mbps/25Mbps 　1200M -> 24Mbps/13Mbps 　1400M -> 20Mbps/9Mbps G.INP, ASym, 8dB: 　200M -> 197Mbps/101Mbps 　400M -> 168Mbps/65Mbps 　600M -> 109Mbps/34Mbps 　800M -> 65Mbps/20Mbps 　1000M -> 53Mbps/7Mbps 　1200M -> 44Mbps/4Mbps 　1400M -> 28Mbps/4Mbps G.INP, sym, 8dB: 　200M -> 150Mbps/150Mbps 　400M -> 117Mbps/117Mbps 　600M -> 77Mbps/77Mbps 　800M -> 43Mbps/43Mbps 　1000M -> 29Mbps/28Mbps 　1200M -> 27Mbps/15Mbps 　1400M -> 22Mbps/10Mbps CO, Interleave, Asym, 12dB: 　200M -> 178Mbps/84Mbps 　400M -> 143Mbps/53Mbps 　600M -> 99Mbps/32Mbps　　800M -> 48Mbps/22Mbps 　1000M -> 41Mbps/5Mbps 　1200M -> 33Mbps/3Mbps 　1400M -> 23Mbps/3Mbps CO, Interleave, Sym, 12dB: 　200M -> 135Mbps/127Mbps 　400M -> 96Mbps/96Mbps 　600M -> 61Mbps/59Mbps 　800M -> 40Mbps/40Mbps 　1000M -> 23Mbps/18Mbps 　1200M -> 22Mbps/9Mbps 　1400M -> 16Mbps/7Mbps G.INP, Asym, 12dB: 　200M -> 185Mbps/89Mbps 　400M -> 148Mbps/54Mbps 　600M -> 95Mbps/32Mbps 　800M -> 58Mbps/14Mbps 　1000M -> 46Mbps/6Mbps 　1200M -> 37Mbps/3Mbps 　1400M -> 25Mbps/3Mbps G.INP, Sym, 12dB: 　200M -> 140Mbps/140Mbps 　400M -> 97Mbps/97Mbps 　600M -> 60Mbps/60Mbps 　800M -> 35Mbps/35Mbps 　1000M -> 26Mbps/21Mbps 　1200M -> 25Mbps/11Mbps 　1400M -> 18Mbps/8Mbps
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998
