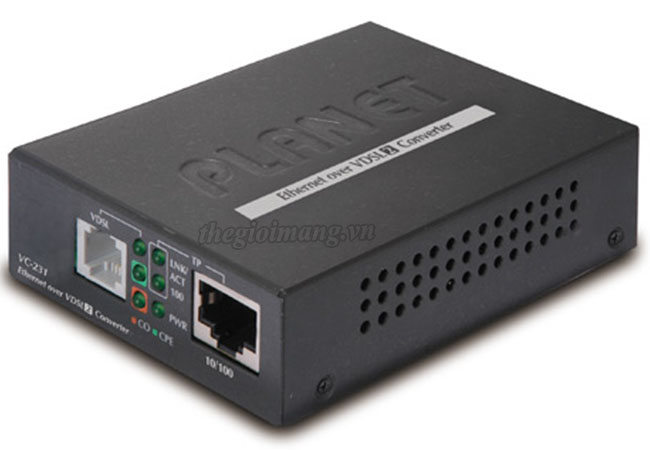

Converter Planet VC-231: Ethernet over VDSL2 Converter (1 x RJ45, 1 x VDSL2/RJ11,17a/30a)
Thiết bị Converter Planet VC-231
| Product | VC-231 |
|---|---|
| Hardware Specifications | |
| Ports | 10/100Base-TX: 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL: 1 RJ-11, female Phone Jack PHONE: Additional Splitter for POST connection |
| DIP Switch & Functionality | - 4 position DIP switch - CO / CPE mode select - Selectable fast and interleaved mode - Selectable target 17a / 30a profiles - Selectable target SNR mode |
| Encoding | • VDSL-DMT - ITU-T G.993.1 VDSL - ITU-T G.997.1 - ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) |
| LED Indicators | • One Power • 3 for RJ-11/VDSL2 • 2 for per RJ-45 10/100Base-TX port |
| Cabling | • Ethernet: 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) • VDSL: Twisted-pair telephone wires (AWG24 or better) up to 1.4km |
| Performance* (Downstream / Upstream) | • 17a profile: 300m -> 86/65Mbps 400m -> 86/52Mbps 600m -> 81/36Mbps 800m -> 72/19Mbps 1000m -> 60/9Mbps 1200m -> 59/6Mbps 1400m -> 50/2Mbps • 30a profile: 300m -> 100/100Mbps 400m -> 90/90Mbps 600m -> 61/40Mbps 800m -> 54/8Mbps |
| Power Requirements | 5V DC, 2A |
| Dimensions (W x D x H) | 97 x 70 x 26 mm |
| Weight | 199g |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K entries |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch fabric | 0.2Gbps |
| Throughput (packet per second) | 0.14Mpps |
| Network cables | 10/100Base-TX: • 2-Pair UTP Cat. 3,4, 5 (100meters, max.) • EIA / TIA-568 100-ohm STP (100meters, max.) |
| Standard Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T - G.993.1 (VDSL) - G.997.1 - G.993.2 VDSL2 (Profile 17a/30a) |
Giá chỉ mang tính tham khảo. Vui lòng liên hệ để có giá tốt nhất.
2,706,000 VNĐ
