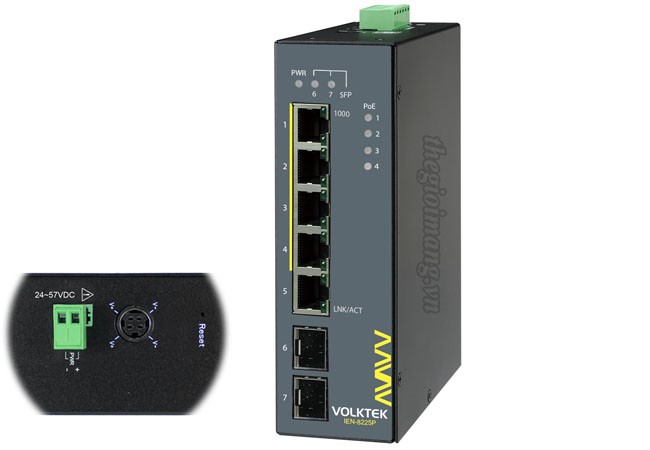

Volktek IEN-8225P-24V - 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek IEN-8225P-24V
| Model | IEN-8225P-24V |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45) 1 x 10/100/1000BASE-T (RJ45) 2x GbE SFP Slots |
| LED Panel | PWR, SFP, PoE, 1000, LNK/ACT |
| Performance | 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports 1,488,000 pps to 1000 Mbps ports Jumbo frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 14Gbps |
| Power | |
| Input Voltage | Adapter inputs: 24V~57V DC Terminal block inputs: 24V~57V DC |
| Connection | Teminal Block, Mini-DIN |
| Power Consumption | System: 14W PoE Power Budget: 120W |
| Mechanical and Environment | |
| Housing | Metal Case (IP30 protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 780 g |
| Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) |
Data sheet Voltek IEN-8225P-24V
| Features & Certifications | Volktek IEN-8225P-24V Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch |
|---|---|
| Features | |
| Functions | Flow Control, Storm Control, LLDP Filter, VLAN Passthru, Port Priority(p1), 802.1p/Tag QoS, EIP QoS (via TCP/UDP #), PROFINET QoS (via VLAN 0), GOOSE QoS (via Ether-type) |
| Certifications | |
| EMI | FCC Part 15 Subpart B Class A EN 55022 : class A EN 55011 : 2009 class A EN 61000-6-4 |
| EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Safety | UL 61010-1, UL 61010-2-201 |
| Optional Accessories | |
| Power Supply | IRA-160: 160W, 52V, Industrial Grade Power Adapter -30°C~60°C (-22°F~140°F) for 110V AC input -30°C~70°C (-22°F~158°F) for 220V AC input |
| GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500 m |
| GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10 km, 0°C~70°C (32°F~158°F) |
| GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10 km, 0°C~70°C (32°F~158°F) |
