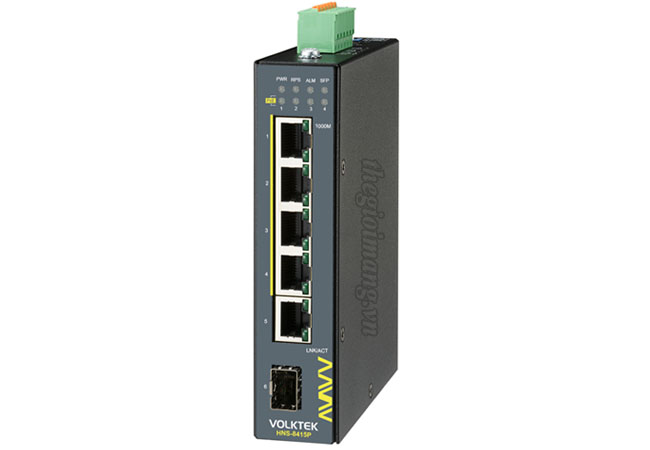

Volktek HNS-8415P - Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek HNS-8415P
| Model | HNS-8415P |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45) 1 x 10/100/1000BASE-T (RJ45) 1 x GbE SFP Slot |
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
| Features | |
| Performance | Max Jumbo Frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 12Gbps |
| Functions | VLAN Passthru |
| PoE+ Functions | Up to 4 IEEE 802.3at powered devices Supports PoE power up to 30W for each PoE port Auto detect powered device (PD) Remote Power Feeding up to 100m |
| Power | |
| Input Voltage | Primary inputs: 48~57VDC Redundant inputs: 48~57VDC |
| Connection | Teminal Block, Mini-DIN |
| Power Consumption | System: 10W PoE Power Budget: 120W |
| Alarm Relay | One relay output, 1A @ 24V DC |
| Mechanical and Environment | |
| Housing | Metal Case (IP30 protection) |
| Mounting Kit | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 515 g (1.14 lb) |
| Dimension (WxHxD) | 31 x 136 x 105 mm (1.22 x 5.36 x 4.13 in) |
VOLKTEK HNS-8415P
Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x GbE SFP Switch
Certifications:
● EMI:
● EMS:
● Shock: IEC 60068-2-27
● Freefall: IEC 60068-2-32
● Vibration: IEC 60068-2-6
Optional Accessories:
● Power Supply - IRA-160: 160W, 52V, Industrial Grade Power Adapter -30°C~60°C (-22°F~140°F) for 110V AC input / -30°C~70°C (-22°F~158°F) for 220V AC input
● GBM-104 - 1000BASE-SX 1.25G, Multi-mode SFP, 500m
● GBM-123TS - 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
● GBM-123RS - 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
