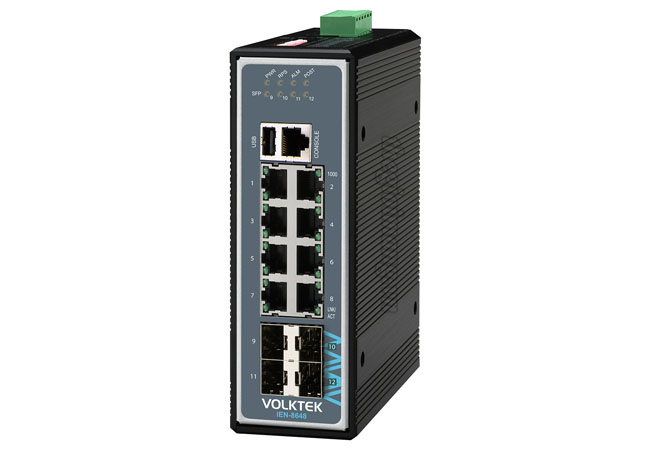

Thiết bị chuyển mạch Công nghiệp Volktek IEN-8648A
| Model | IEN-8648A |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation IEEE 802.1AB LLDP IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP IEEE 1588v2 PTP IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1X Port Authentication IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Interface | |
| Ports | 8 x 10/100/1000BASE-T (RJ45) 4 x Gigabit SFP Slots 1 x RJ45 Console Port 1 x USB Port |
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, POST, 1000, LNK/ACT |
| Features | |
| Performance | Jumbo frame Size: 10KBytes MAC Table Entries: 16K Active VLAN: 4K Switch Fabric: 24 Gbps L2 Forwarding Rate: 17.9 Mpps |
| Management | CLI, Telnet/SSH, HTTP/HTTPs, SNMP v1/v2c/v3, SNMP Trap, MVLAN, Firmware Upgradable, Configuration Backup/Restore, Syslog, SNTP, PTP, LLDP, UDLD, DHCP Client/Relay/Option82, e-mail Alarm, Server Control, Mirroring, DDM, SFP Info, Auto-Provisioning, RMON Statistics, ModbusTCP |
| Reliability | STP/RSTP/MSTP, Xpress Ring, ERPS v1/v2, Dual Homing, LACP, Static Trunk, Code Redundancy |
| VLAN | IEEE 802.1Q, GARP/GVRP, Port-based VLAN, MAC-based VLAN, IP-based VLAN, Protocol-based VLAN, QinQ |
| Traffic Control | IGMP Snooping/Throttling, IGMP Proxy/Filter, MLD, MVR, QoS, Flow Control, Rate Limit, Storm Control, Traffic Monitor, Port Isolation, Loop Detection, Static Route |
| Security | ACL, SSH, HTTPs, SNMPv3, Port-based 802.1x, TACACS+, Port Security, MAC Search, Refusal MAC, Sticky MAC, Static MAC, DHCP Snooping, DHCP Sever Screening, ARP Inspection, BPDU Guard/Filter, Root Guard, Managed Hos |
| Power | |
| Input Voltage | Primary inputs: 12~60VDC Redundant inputs: 12~60VDC |
| Power Consumption | System : 18W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 955 g (2.1 lb) |
| Dimension (WxHxD) | 50 x 161.5 x 120 mm (1.97 x 6.4 x 4.72 in) |
Volktek IEN-8608A
Hardware Features
Product Highlights
• Modbus TCP industrial protocol
• Port-based VLAN with GVRP feature to provide better control of subnetworks
• SNMP v1/v2c/v3 and RMON for device management
• Xpress Ring, STP, RSTP for recovery in milliseconds and Dual Homing
• Traffic and Storm Control with QoS, IGMP Snooping for filtering traffic
• Redundant Power Input & Relay Output Alarm
• MDI/MDI-X for plug-and-play
• EMS, ESD, Surge & Burst Protection
• Shock, Freefall and Vibration Proof
• Operating temperature range between -40°C to 75°C
• USB Support for configuration and to save backups
