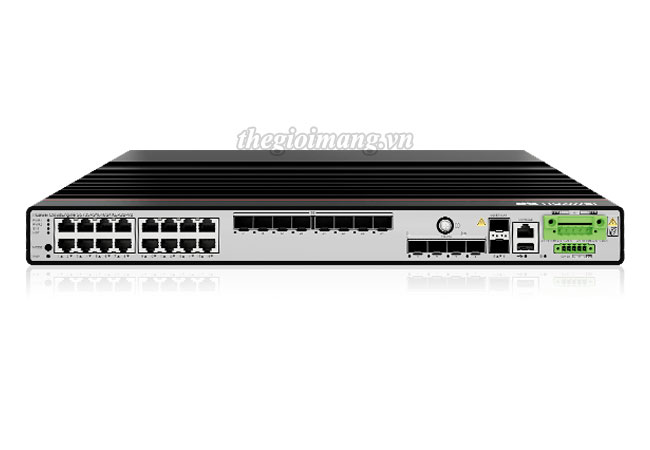

Switch Huawei CloudEngine S5735I-S16T8S4XE-QD-V2 Industry :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735I-S16T8S4XE-QD-V2
| Model | S5735I-S16T8S4XE-QD-V2 |
| Fixed port | • 16 x 10/100/1000Base-T ports, 8 x GE SFP ports, 4 x 10GE SFP+ ports, 2 x 12GE dedicated stack ports, 1 x DI/DO port |
| Console port | • 1 x RS485 |
| Alarm port | • 1 x DI (Monitoring alarm input port), 1 x DO (Shorts and Opens alarm output port) |
| Forwarding Performance | • 132 Mpps |
| Switching Capacity | • 176 Gbit |
| MAC address table | • IEEE 802.1d compliance • 32K MAC entries • MAC address learning and aging • Static, dynamic, and blackhole MAC address entries • Packet filtering based on source MAC addresses |
| VLAN | • 4094 VLANs • Voice VLAN • MUX VLAN • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports • VLAN Stacking, VLAN mapping |
| IP routing | • Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 |
| Dimensions (H x W x D) | • 43.6 mm x 442 mm x 335 mm |
| Mounting | • Rack-mounted |
| Weight (with packaging) | • 7.58kg |
| IP level | • IP40 |
| Power supply type | • Built-in Dual DC |
| Rated voltage range | • DC input: 24V DC～48V DC |
| Maximum voltage range | • DC input: 18V DC～60V DC |
| Maximum power consumption | • 38 W |
| Typical power consumption (30% of traffic load) | • 21.1 W |
| Operating temperature | • 0–1800 m altitude, industry optical modules • -40°C to +65°C (installed in the sealing cabinet) • -40°C to +70°C (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) • -40°C to +75°C (installed in the ventilation cabinet shipped with fans running at a speed of at least 200 LFM) |
| Storage temperature | • -40°C～+85°C |
| Power supply surge protection | • ±2 kV in differential mode, ±4 kV in common mode |
| Noise under normal temperature (27°C, sound power) | • Noise-free (no fans), < 30 dB(A) |
| Relative humidity | • 5% to 95%, noncondensing |
| Heat dissipation | • Natural heat dissipation |
CloudEngine S5735I-S16T8S4XE-QD-V2 : 16*10/100/1000BASE-T ports, 8*GE SFP ports,4*10GE SFP+ ports, 2*12.5GE stack ports, Rack Mounting, Dual DC 18-60V power, Fanless
Data sheet Huawei CloudEngine S5735I-S-V2 Series Industry Switches
