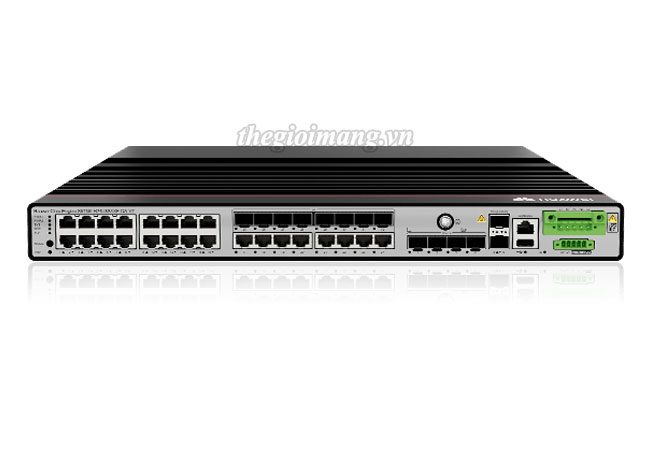

Switch Huawei CloudEngine S5735I-H24U8S4XE-QA-V2 Industrial :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735I-H24U8S4XE-QA-V2
| Model | S5735I-H24U8S4XE-QA-V2 |
| Fixed port | • 24 x 10/100/1000Base-T Ethernet ports, 8 x 100/1000BASE-X SFP ports, 4 x 1/10GE SFP+ ports, 2 x 12GE stack ports, 1 x DI, 1 x DO |
| Forwarding Performance | • 144 Mpps |
| Switching Capacity | • 192 Gbit/s |
| MAC address table | • IEEE 802.1d compliance • 32K MAC entries • MAC address learning and aging • Static, dynamic, and blackhole MAC address entries • Packet filtering based on source MAC addresses |
| VLAN | • 4094 VLANs • Voice VLAN • MUX VLAN • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports • VLAN Stacking, VLAN mapping |
| IP routing | • Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 |
| Console port (RJ45) | • Supported |
| Alarm port | • 1 x DI (Monitoring alarm input port), 1 x DO (Shorts and Opens alarm output port) |
| Dimensions (H x W x D) | • 43.6 mm x 442 mm x 360 mm |
| Mounting | • Rack-mounted |
| Weight (with packaging) | • 8.0kg |
| IP level | • IP40 |
| Power supply type | • Built-in Dual AC |
| Rated voltage range | • AC input: 110V/240V AC • HVDC input: 240V DC |
| Maximum voltage range | • AC input: 100V~290V AC • HVDC input: 190V~290V DC |
| Maximum power consumption | • 58 W (without PD) • 195 W (PD power consumption of 130W with single power supply) • 333 W (PD power consumption of 250W with dual power supply) |
| Typical power consumption (30% of traffic load) | • 47.4 W |
| PoE power consumption | • Single power supply input: 130 W • Dual power supply input: 250 W (60℃@No wind) 320 W (50℃@No wind) |
| Operating temperature | • 0–1800 m altitude, industry optical modules: • -40°C to +60°C (installed in the sealing cabinet) • -40°C to +70°C (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) • -40°C to +75°C (installed in the ventilation cabinet shipped with fans running at a speed of at least 200 LFM) |
| Storage temperature | • -40°C to +85°C |
| Power supply surge protection | • ±6 kV in differential mode, ±4 kV in common mode |
| Noise under normal temperature (27°C, sound power) | • Noise-free (no fans), < 30 dB(A) |
| Relative humidity | • 5% to 95%, noncondensing |
| Heat dissipation | • Natural heat dissipation |
CloudEngine S5735I-H24U8S4XE-QA-V2 : 24*10/100/1000BASE-T ports(8*POE++&16*POE+), 8*GE SFP ports,4*10GE SFP+ ports, 2*12.5GE stack ports, Rack Mounting, Dual AC power, Fanless
Data sheet Huawei CloudEngine S5735I-H-V2 Series TSN Industry Switches
