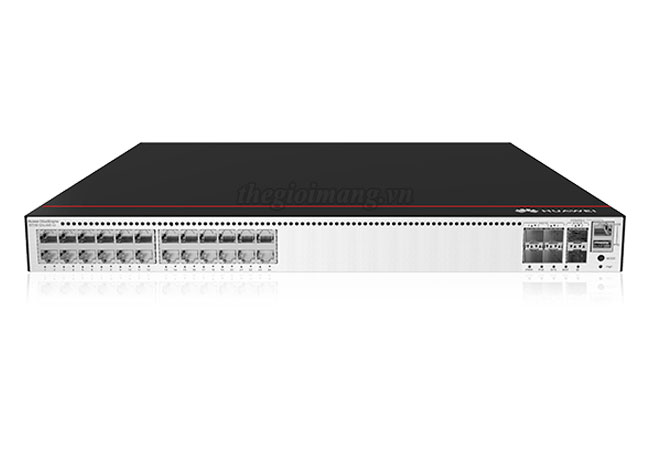

Huawei CloudEngine S5735I-S24U4XE-V2 Extended-Temperature Switch :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735I-S24U4XE-V2
| Model | CloudEngine S5735I-S24U4XE-V2 |
| Fixed port | 24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 stack ports, PoE++ |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm |
| Weight (with packaging) | 12.33 kg |
| Power supply type | • 600W AC PoE • 1000W AC PoE • 1000W DC PoE |
| Rated voltage range | • AC input: 100 V AC to 130 V, 200 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input: -48 V DC to -60 V DC |
| Maximum voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | • 81 W (without PD) • 1285 W(with PD,PD Power consumption of :1083 W） |
| Operating temperature | -40°C to +65°C (-40°F to 149°F) at an altitude of 0–1800 m (0–5906 ft.), mapping industrial optical modules |
| Storage temperature | -40°C to +75°C |
| Power supply surge protection | • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Service port surge protection | ±6 kV in common mode |
| Noise under normal temperature (27°C, sound power) | • Under normal temperature (sound power): ₀ 3*600W PoE AC 30% load: 50 dB(A) ₀ 3*1000W PoE AC 30% load: 49.9 dB(A) ₀ 3*100W PoE DC 30% load: 48.5 dB(A) • Under high temperature (sound power): ₀ 3*600W PoE AC 30% load: 54.9 dB(A) ₀ 3*1000W PoE AC 30% load: 54.8 dB(A) ₀ 3*100W PoE DC 30% load: 53.3 dB(A) • Under normal temperature (sound pressure): ₀ 3*600W PoE AC 30% load: 38 dB(A) ₀ 3*1000W PoE AC 30% load: 37.9 dB(A) ₀ 3*100W PoE DC 30% load: 36.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
CloudEngine S5735I-S-24U4XE-V2 : 24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 x 12GE stack ports, PoE++, without power module
Data sheet Huawei CloudEngine S5735I-S-V2 Series Extended-Temperature Switches
