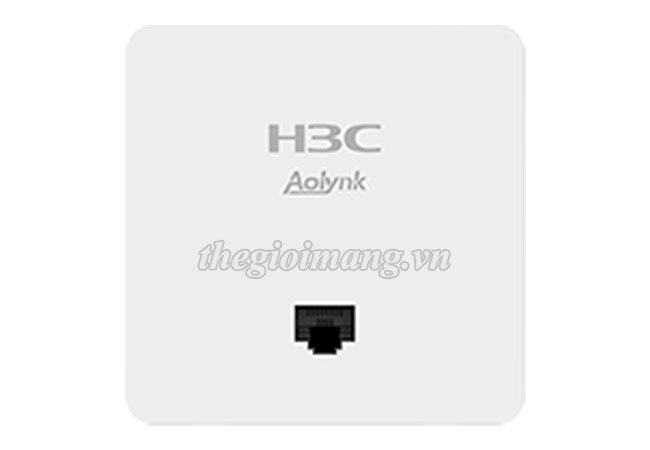

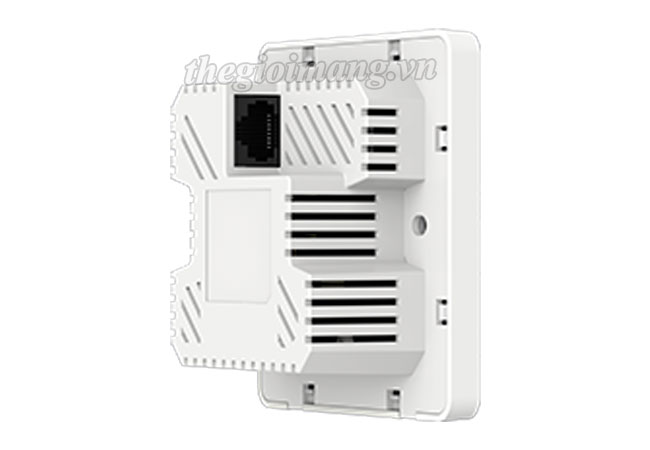

Bộ phát Wi-Fi 6 gắn tường H3C Aolynk UAP612MG-AX30
H3C Aolynk UAP612MG-AX30 là bộ truy cập không dây Access Point Wi-Fi 6 (802.11ax) dạng gắn tường, với thiết kế siêu mỏng 7,9mm, kích thước chuẩn 86mm và vỏ ngoài đa màu sắc (trắng, đen, vàng, xám), sản phẩm dễ dàng hòa hợp với các phong cách trang trí nội thất. UAP612MG-AX30 phù hợp cho các không gian như ký túc xá trường học, bệnh viện, khách sạn hay biệt thự, giải quyết vấn đề tín hiệu yếu trong các bố trí AP truyền thống, đồng thời giảm chi phí lắp đặt và vận hành. Điểm truy cập này hỗ trợ tốc độ tối đa 2976Mbps nhờ thiết kế hai băng tần (dual-radio) và bốn luồng (four-stream), cùng với các chế độ quản lý linh hoạt như quản lý đám mây và web cục bộ.
Thông số kỹ thuật
| Model | UAP612MG-AX30 |
| Hardware specifications | |
| Dimensions | • 86 mm × 86 mm × 37 mm |
| Weight | • 150 g |
| Fixed port | • Uplink: 1 x 100/1000/2500Mbps auto-negotiated Ethernet uplink port (PoE powered); LAN: 1 x 10/100/1000 Mbps auto-negotiated Ethernet port |
| PoE | • Support 802.3af power supply |
| Case color | • White (default). Black, gold, grey (optional) |
| Built-in antenna | • Built-in omni-directional antenna (2.4GHz 3dBi; 5GHz: 4dBi) |
| Radio frequency & MIMO | • Radio1: 5G, 2x2, 2402Mbps; Radio2: 2.4G, 2x2, 574Mbps |
| Working frequencies | • 2.400 to 2.4835 GHz ISM; 5.150 to 5.250 GHz U-NII-1; 5.250 to 5.350 GHz U-NII-2A; 5.470 to 5.725 GHz U-NII-2C; 5.725 to 5.850 GHz U-NII-3/ISM; Note: The available operating band varies according to the country of use of the device, depending on the country of final use of the device |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSX@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| Modulation mode | • 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM; 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM; 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Transmit power | • 2.4G: 18 dBm; 5G: 17 dBm; Note: Antenna gain is not included, the actual power is adjusted according to different national regulations |
| Adjustable power granularity | • 10% |
| Operating temperature/storage temperature | • 0°C ~ 40°C / -40°C ~ 70°C |
| Operating humidity/storage humidity | • 5% to 95% (non-condensing) / 5% to 95% (non-condensing) |
| Power consumption | • ≤ 11 W |
| MTBF | • >613200 hrs at 25°C |
| Certification | • CE, CB, RoHS |
| Software Specifications | |
| 802.11 protocol | • 802.11 a; 802.11 b; 802.11 d; 802.11 e; 802.11 g; 802.11 h; 802.11 i; 802.11 n; 802.11 ac; 802.11 ax; 802.11 k; 802.11 v |
| WLAN security | • RSN; WPA3; WPA2; WPA; TKIP; CCMP; Open system |
| Wireless services | • PSK; MAC address Blacklist; MAC address whitelist; Blacklist of domain names; SSID configuration; Hide SSID configuration; RF binding wireless service; Bind service template to VLAN; User rate Limiting; Country code configuration |
| Radio frequency management | • Power Settings; Channel Settings; DFS; RF switch; RF mode |
| WRRM | • 5G first; 802.11g protection; 802.11n protection |
| RRM | • Automatic optimization, manual optimization |
| User isolation | • VLAN-based user isolation |
| Weak signal optimization | • Disable weak signal clients access; Actively triggers re-association of weak-signal clients |
| Wireless optimization | • Roaming sensitivity adjustment; Maximum number of clients based on Radio |
| Network protocols | • ARP; ARP SNOOPING; ICMP; NTP client; DNS client; TCP/UDP; DHCP Wi-Fi Server; DHCP Client; DHCP option 43; HTTP; IPV6 (only support IP address acquisition and data forwarding); LLDP; 802.1q |
| VLAN | • SSID-based VLAN; Port-based VLAN |
| Forwarding | • Layer 2 forwarding |
| Self-organizing network | • Self-organizing Network |
| Maintenance | • Firmware brick recovery; Configuration and log collection; Port-based rate statistics; Terminal trend statistics based on wireless services; Traffic statistics based on wireless services; Radio-based terminal trend statistics; Radio-based Wi-Fi channel utilization statistics; Displays the IP addresses of all VLANs; PING tool; Traceroute; Connectivity Detection; Quickly detect gateway address |
| Equipment management | • Change login password; AP indicator switch; Flashing light for AP; Configuration Import; Factory restore; Reboot; Timed reboot; Configure Aolynkcloud address and port; Self-unbind function; Set the date time and time zone; Self-organizing network switch; Change IP address of VLAN where the management Wi-Fi resides |
| Firmware upgrade | • Online Upgrade; Offline upgrade; New firmware alert |
| User interface | • Cloud management; Local Web management |
| Performance specifications | • Maximum number of wireless terminal access is 256 (theoretical value); Maximum SSID supported by all RFs is 8 (including 1 managed Wi-Fi); Radio1: 0~8; Radio2: 0~8; Note: Users can freely combine the number of SSIDs supported under each radio frequency according to their actual needs.; Maximum number of network management devices in Self-organizing network is 32 (TM is AP) |
