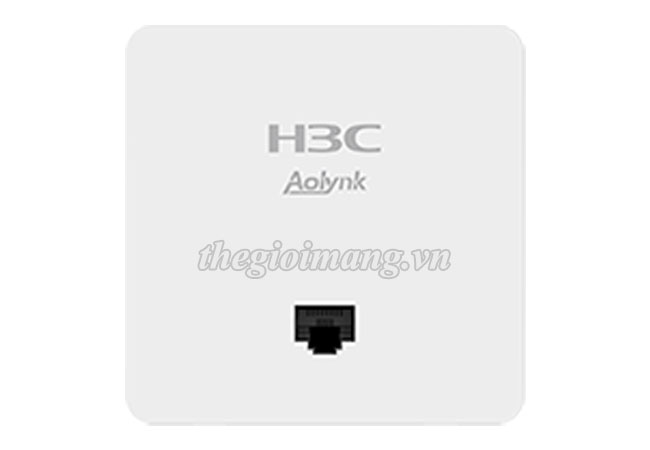

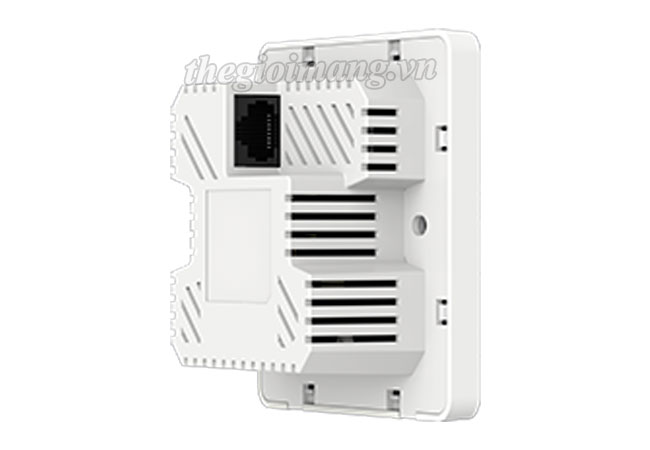

Bộ phát Wi-Fi 5 gắn tường H3C Aolynk UAP512G-AC13
H3C Aolynk UAP512G-AC13 là bộ truy cập không dây Access Point Wi-Fi 5 (802.11ac) dạng tấm tường siêu mỏng, với thiết kế dual-radio và bốn luồng dữ liệu, UAP512G-AC13 đạt tốc độ truy cập tối đa lên đến 1267 Mbps. Sản phẩm có thiết kế nhỏ gọn với độ dày chỉ 7,9 mm (phần nhô ra khỏi tường), kích thước chuẩn 86 mm x 86 mm, phù hợp với hộp âm tường tiêu chuẩn. Vỏ ngoài có bốn tùy chọn màu sắc (trắng, đen, vàng, xám), dễ dàng hòa hợp với phong cách trang trí nội thất. UAP512G-AC13 được thiết kế tối ưu cho các môi trường như ký túc xá trường học, phòng bệnh viện, phòng khách sạn, biệt thự, giúp giải quyết vấn đề chất lượng tín hiệu kém trong các mô hình triển khai AP truyền thống. Sản phẩm dễ dàng lắp đặt, không làm hỏng cấu trúc trang trí hiện có, đồng thời giảm đáng kể chi phí triển khai và vận hành.
Thông số kỹ thuật
| Model | UAP512G-AC13 |
| Hardware specifications | |
| Dimensions | • 86mm × 86mm × 37mm |
| Weight | • 150g |
| Fixed port | • Uplink: 1 × 10/100/1000Mbps auto-negotiated Ethernet uplink port (PoE powered) • LAN: 1 × 10/100/1000Mbps auto-negotiated Ethernet port |
| PoE | • Support 802.3af power supply |
| Case color | • White (default). Black, gold, grey (optional) |
| Built-in antenna | • Built-in omni-directional antenna (2.4GHz: 3dBi; 5GHz: 4dBi) |
| Radio frequency & MIMO | • Radio1: 5G, 2x2, 866.7Mbps • Radio2: 2.4G, 2x2, 400Mbps |
| Working frequencies | • 2.400 to 2.4835GHz ISM • 5.150 to 5.250GHz U-NII-1 • 5.250 to 5.350GHz U-NII-2A • 5.470 to 5.725GHz U-NII-2C • 5.725 to 5.850GHz U-NII-3/ISM |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| Modulation mode | • 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| Transmit power | • 2.4G: 18 dBm • 5G: 17 dBm (antenna gain not included) |
| Adjustable power granularity | • 10.00% |
| Operating temperature / storage temperature | • 0ºC ~ 40ºC / -40ºC ~ 70ºC |
| Operating humidity / storage humidity | • 5% to 95% (non-condensing) / 5% to 95% (non-condensing) |
| Power consumption | • ≤11.65 W |
| MTBF | • >613,200 hrs at 25ºC |
| Certification | • CE, CB, RoHS |
| Software Specifications | |
| 802.11 protocol | • 802.11 a / b / d / e / g / h / i / n / ac / k / v |
| WLAN security | • RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address Blacklist, MAC address Whitelist, Blacklist of domain names |
| Wireless services | • SSID configuration, Hide SSID configuration, RF binding wireless service, Bind service template to VLAN, User rate Limiting, Country code configuration |
| Radio frequency management | • Power Settings, Channel Settings, DFS, RF switch, RF mode, WRRM, 5G first, 802.11g protection, 802.11n protection, RRM (Automatic optimization, Manual optimization) |
| User isolation | • VLAN-based user isolation |
| Weak signal optimization | • Disable weak signal clients access, Actively triggers re-association of weak-signal clients |
| Wireless optimization | • Roaming sensitivity adjustment, Maximum number of clients based on Radio |
| Network protocols | • ARP, ARP SNOOPING, ICMP, NTP client, DNS client, TCP/UDP, DHCP Wi-Fi Server, DHCP Client, DHCP option 43, HTTP, IPV6 (only support IP address acquisition and data forwarding), LLDP, 802.1q |
| VLAN | • SSID-based VLAN, Port-based VLAN |
| Forwarding | • Layer 2 forwarding |
| Self-organizing network | • Self-organizing Network |
| Maintenance | • Firmware brick recovery, Configuration and log collection, Port-based rate statistics, Terminal trend statistics based on wireless services, Traffic statistics based on wireless services, Radio-based terminal trend statistics, Radio-based Wi-Fi channel utilization statistics, Displays the IP addresses of all VLANs |
| Tools | • PING tool, Traceroute, Connectivity Detection, Quickly detect gateway address |
| Equipment management | • Change login password, AP indicator switch, Flashing light for AP, Configuration Import, Factory restore, Reboot, Timed reboot, Configure Aolynkcloud address and port, Self-unbind function, Set the date time and time zone, Self-organizing network switch, Change IP address of VLAN where the management Wi-Fi resides, Firmware upgrade (Online & Offline), New firmware alert |
| User interface | • Cloud management, Local Web management |
| Performance specifications | - Max wireless terminal access: 256 (theoretical value) - Max SSID supported by all RFs: 8 (including 1 managed Wi-Fi) - SSIDs can be flexibly distributed across radios - Max devices in Self-organizing network: 32 (APs) Note: Specifications are evaluated in lab environments and may vary in real deployments. |
