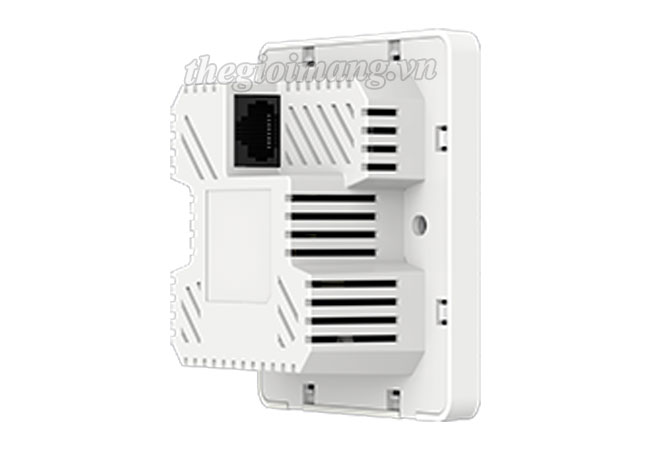

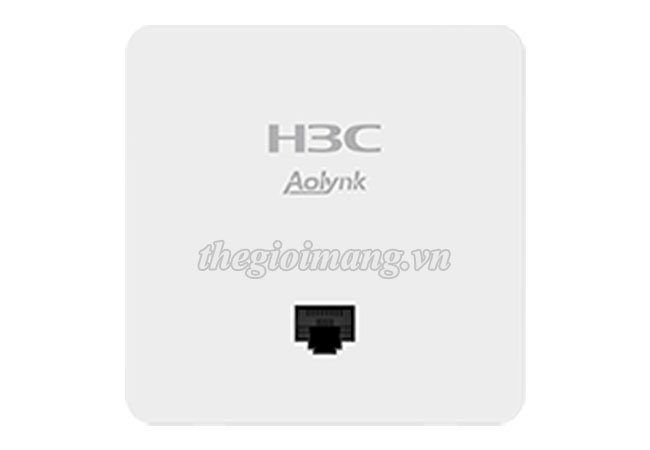

Bộ phát Wi-Fi 6 gắn tường H3C Aolynk UAP612G-AX15
H3C Aolynk UAP612G-AX15 là bộ truy cập không dây Access Point Wi-Fi 6 (802.11ax) dạng gắn tường, với thiết kế siêu mỏng 7,9mm, kích thước chuẩn 86mm và vỏ ngoài đa màu sắc (trắng, đen, vàng, xám), sản phẩm dễ dàng hòa hợp với các phong cách trang trí nội thất. UAP612MG-AX30 phù hợp cho các không gian như ký túc xá trường học, bệnh viện, khách sạn hay biệt thự, giải quyết vấn đề tín hiệu yếu trong các bố trí AP truyền thống, đồng thời giảm chi phí lắp đặt và vận hành. Điểm truy cập này hỗ trợ tốc độ tối đa 2976Mbps nhờ thiết kế hai băng tần (dual-radio) và bốn luồng (four-stream), cùng với các chế độ quản lý linh hoạt như quản lý đám mây và web cục bộ.
Thông số kỹ thuật
| Model | UAP612G-AX15 |
| Hardware specifications | |
| Dimensions | • 86mm×86mm×37mm |
| Weight | • 150g |
| Fixed port | • Uplink: 1 x 10/100/1000Mbps auto-negotiated Ethernet uplink port (PoE powered) • LAN: 1 x 10/100/1000Mbps auto-negotiated Ethernet port |
| PoE | • Support 802.3af power supply |
| Case color | • White (default). Black, gold, grey (optional) |
| Built-in antenna | • Built-in omni-directional antenna (2.4GHz: 3dBi; 5GHz: 4dBi) |
| Radio frequency & MIMO | • Radio 1: 5G, 2x2, 1201Mbps • Radio 2: 2.4G, 2x2, 300Mbps |
| Working frequencies | • 2.400 to 2.4835GHz ISM • 5.150 to 5.250GHz U - NII - 1 • 5.250 to 5.350GHz U - NII - 2A • 5.470 to 5.725GHz U - NII - 2C • 5.725 to 5.850GHz U - NII - 3/ISM |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| Modulation mode | • 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n/ac/ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM (11ax also includes 1024QAM) |
| Transmit power | • 2.4G: 18 dBm • 5G: 17 dBm (Antenna gain not included) |
| Adjustable power granularity | • 10.00% |
| Operating temp / storage temp | • 0ºC ~ 40ºC / -40ºC ~ 70ºC |
| Operating humidity / storage humidity | • 5% to 95% (non-condensing) |
| Power consumption | • ≤11.65 W |
| MTBF | • >613200 hrs at 25ºC |
| Certification | • CE, CB, RoHS |
| Software Specifications | |
| 802.11 Protocol | • 802.11 a, b, d, e, g, h, i, n, ac, ax, k, v |
| WLAN Security | • RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK |
| MAC Control | • MAC address blacklist, MAC address whitelist |
| Domain Control | • Blacklist of domain names |
| Wireless Services | • SSID configuration, Hide SSID, RF binding wireless service, Bind service template to VLAN, User rate limiting, Country code configuration |
| Radio Frequency Management | • Power settings, Channel settings, DFS, RF switch, RF mode, WRRM, 5G first, 802.11g/n protection, RRM (auto/manual optimization) |
| User Isolation | • VLAN-based user isolation |
| Weak Signal Optimization | • Disable weak signal clients access, Actively triggers re-association of weak-signal clients |
| Wireless Optimization | • Roaming sensitivity adjustment, Max number of clients based on Radio |
| Network Protocols | • ARP, ARP SNOOPING, ICMP, NTP client, DNS client, TCP/UDP, DHCP Server/Client, DHCP option 43, HTTP, IPv6 (only address acquisition and data forwarding), LLDP |
| VLAN | • SSID-based VLAN, Port-based VLAN |
| Forwarding | • Layer 2 forwarding |
| Self-organizing Network | • Supported |
| Maintenance | • Firmware brick recovery, Config & log collection, Rate statistics (port-based), Terminal trend stats (wireless), Traffic stats, Channel utilization stats, VLAN IP display, PING, Traceroute, Connectivity Detection, Gateway detection |
| Equipment Management | • Change password, AP LED switch, Flashing light for AP, Config import, Factory reset, Reboot, Timed reboot, AolynkCloud address config, Self-unbind, Date/time/timezone settings, Management VLAN IP change |
| Firmware Upgrade | • Online upgrade, Offline upgrade, New firmware alert |
| User Interface | • Cloud management, Local Web management |
