EWP-WA6628X-FIT - H3C WA6628X Wi-Fi 6 Outdoor Access Point :

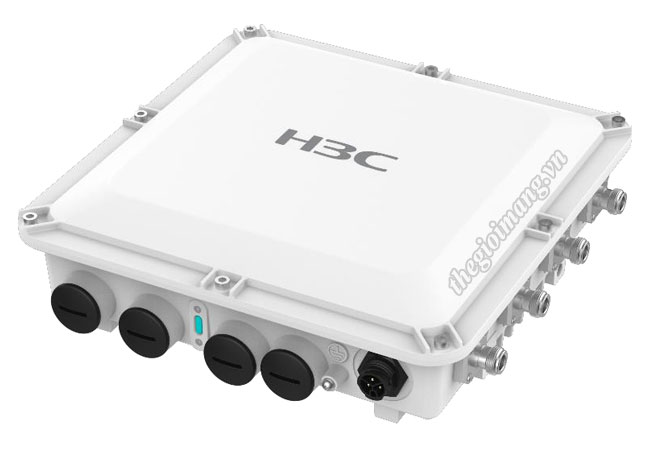

Thiết bị Wi-Fi 6 H3C WA6628X Outdoor Access Point (EWP-WA6628X-FIT)
| Model | EWP-WA6628X-FIT |
| Weight(excluding mounting accessories) | • 3.2kg |
| Dimensions(H×W×D, excluding mounting accessories) | • 280mm×280mm×85mm |
| Fixed port | • 1×100M/1000M Ethernet port, support IoT Expansion & PSE, 802.3af • 2xSFP+ • 1×Console port (RJ45) |
| Antenna | • External antenna support 8xN type interface |
| Operating frequencies | • 802.11ax/ac/n/a : 5.725GHz-5.850GHz; 5.47～5.725GHz; 5.15~5.35GHz • 802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM (11n): MCS 0-31 • MIMO-OFDM (11ac): MCS 0-9 • MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | • 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power | • 2.4GHz: 30dBm • 5GHz: 30dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power | • 1dBm |
| Power Source | • Local Power Supply(100-264V AC) |
| Power consumption | • ≤52W(Including PSE) |
| Operating temperature/storage temperature | • Operating Tem: -30ºC～55ºC(Recommended); -40 ºC～65ºC • Storage Tem: -40ºC～85ºC |
| Operating humidity/storage humidity | • 0% to 100% (non-condensing) |
| Safety compliance | • GB4943, EN/IEC/UL 60950-1, EN/IEC/UL 62386-1 |
| EMC | • EN301 489-1, EN301 489-17, EN50121-4:2016/IEC62236-4:2018, EN 50121-3-2-2006, GB/T 24338.4-2009, GB/T 24338.5-2009, GB/T9254-2008 |
| Radio frequency certification | • FCC Part 15、EN 300 328、EN 301 893 |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree | • IP67 |
| MTBF | • >850000 hours |
EWP-WA6628X-FIT : H3C WA6628X External Antennas 12 Streams dual or triple Radio 802.11ax/ac/n Access Point, FIT
