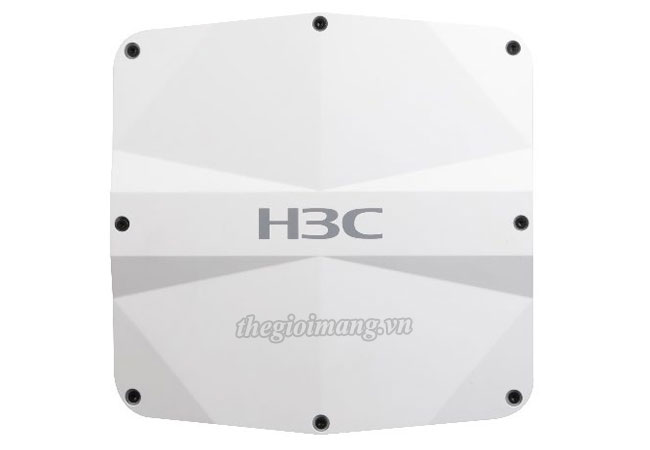

EWP-WA6620X-FIT - H3C WA6620X Wi-Fi 6 Outdoor Access Point :
Thiết bị Wi-Fi 6 H3C WA6620X Outdoor Access Point (EWP-WA6620X-FIT)
| Model | EWP-WA6620X-FIT |
| Weight (excluding mounting accessories) | • 1.8kg |
| Dimensions (H×W×D, excluding mounting accessories) | • 250mm x 250mm x 79.5mm |
| Fixed port | • 2×100M/1000M Ethernet port, one support IoT extension & PSE ,802.3af • Network ports support link aggregation (LACP) for redundancy and increased capacity • 1xSFP • 1×Console port (RJ45) |
| Antenna | • Internal directional antenna, antenna gain: 11dBi@2.4G/11dBi@5G/ Horizontal beamwidth (HBW): 65 degrees Vertical beamwidth (VBW): 30 degrees • Support extended external antenna |
| Operating frequencies | • 802.11ax/ac/n/a: 5.725GHz-5.850GHz; 5.47～5.725GHz; 5.15~5.35GHz • 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM (11n): MCS 0-31 • MIMO-OFDM (11ac): MCS 0-9 • MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | • 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power | • 2.4GHz: 27dBm • 5GHz: 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power | • 1dBm |
| Power Source | • PoE Injector+55V DC Adapter (Optional) • Adapted to 47~57V DC |
| Power consumption | • ≤25W (Not included PSE) |
| Operating temperature/storage temperature | • Operating Tem: -30ºC～55ºC (Recommended); -40 ºC～65ºC • Storage Tem: -40ºC～85ºC |
| Operating humidity/storage humidity | • 0% to 100% (non-condensing) |
| Safety compliance | • IEC 60950-1, EN 60950-1, IEC 60950-22, EN 60950-22 |
| EMC | • EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 |
| Radio frequency certification | • EN 300 328, EN 301 893, FCC Part 15 |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree | • IP68 |
| MTBF | • >500000 hours |
EWP-WA6620X-FIT : H3C WA6620X Integrated Internal and External Antennas 4 Streams Dual Radio 802.11ax/ac/n Industrial Access Point, FIT
