EWP-WA6528X-E-FIT - H3C WA6528X-E Wi-Fi 6 Outdoor Access Point :

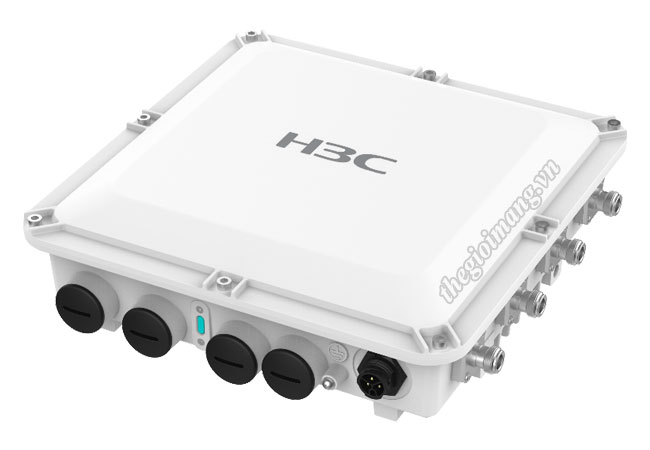

Thiết bị Wi-Fi 6 H3C WA6528X-E Outdoor Access Point (EWP-WA6528X-E-FIT)
| Model | EWP-WA6528X-E-FIT |
| Weight (excluding mounting accessories) | • 3.2kg |
| Dimensions (excluding mounting accessories) | • 280 mm (W) x 280 mm (D) x 85 mm (H) |
| Uplink Ethernet ports | • 1x100M/1000M/2.5G/5G Ethernet port • 2x100/1000M/10G SFP+ |
| Console port | • 1×Console port (RJ45) |
| Antenna | • External antenna support 8xN type interface can extend with omni & directional antenna |
| Operating frequencies | • 802.11ax/ac/n/a: 5.725GHz-5.850GHz; 5.47-5.725GHz; 5.15-5.35GHz • 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM (11n): MCS 0-31 • MIMO-OFDM (11ac): MCS 0-9 • MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | • 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power | • 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power | • 1dBm |
| BLE | • BLE 5.1 |
| Power Source | • 5GE 802.3bt/at/af • POE injector |
| Power consumption | • AC powered: ≤43W (110-240V) • POE powered: ≤43W (802.3bt) |
| Operating temperature/storage temperature | • Operating Temperature: -30ºC～55ºC • Storage Temperature: -40ºC～70ºC |
| Operating humidity/storage humidity | • 0% to 100% (non-condensing) |
| Safety compliance | • GB4943, EN/IEC/UL 60950-1, EN/IEC/UL 62386-1 |
| EMC | • EN301 489-1, EN301 489-17, EN50121-4:2016/IEC62236-4:2018，EN 50121-3-2-2006, GB/T 24338.4-2009, GB/T 24338.5-2009, GB/T9254-2008 |
| Radio frequency certification | • FCC Part 15, EN 300 328, EN 301 893 |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree | • IP68 |
| MTBF | • >850000 hours |
EWP-WA6528X-E-FIT : H3C WA6528X-E External Antennas 8 Streams Dual Radio 802.11ax/ac/n Industrial Access Point,FIT
