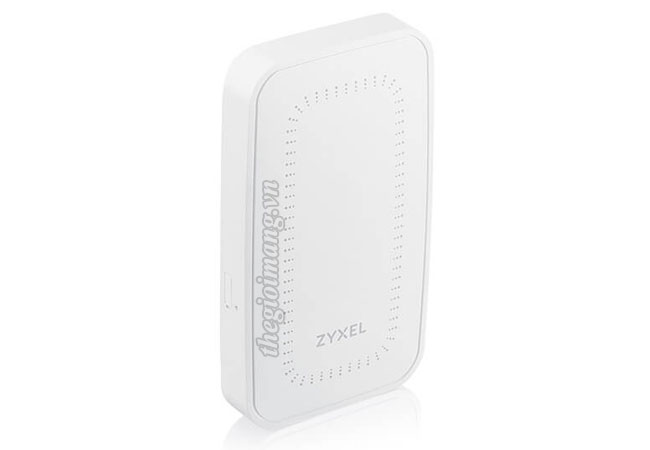

Zyxel WAX300H AX3000 Dual-Radio Wall-Plate Unified Access Point :
Thiết bị Wi-Fi 6 Zyxel WAX300H Wall-Plate Access Point
| Model | WAX300H |
| Wireless | |
| Standard | • IEEE802.11 ax/ac/n/g/b/a |
| MIMO | • MU-MIMO |
| Wireless speed | • 2.4GHz: 575 Mbps • 5GHz: 2400 Mbps |
| Frequency band | • 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz • 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| Bandwidth | • 20-, 40- ,80- and 160-MHz |
| Conducted typical transmit output power | • US (2.4GHz/5GHz): 23/23 dBm • EU (2.4GHz/5GHz): 19/23 dBm |
| RF Design | |
| Antenna type | • Internal Antenna |
| Antenna gain | • 2.4 GHz: 3 dBi, 2X2:2SS • 5 GHz: 4 dBi, 2x2:2SS |
| Minimum receive sensitivity | • Min. Rx sensitivity up to -99 dBm |
| WLAN Feature | |
| Band steering | • Yes |
| WDS/Mesh*2 | • Yes |
| Fast roaming | • Pre-authentication, PMK caching and 802.11r/k/v |
| DCS | • Yes |
| Load balancing | • No |
| Advanced Cellular Coexistence | • Yes |
| Security | |
| Encryption | • WPA • WPA2 • WPA3 |
| Authentication | • IEEE 802.1X • RADIUS anthentication |
| Access management | • L2-isolation • MAC filtering • Rogue AP detection |
| Networking | |
| IPv6 | • Yes |
| VLANs | • Yes |
| WMM | • Yes |
| U-APSD | • Yes |
| Management | |
| Operating mode | • Nebula cloud managed • Controller-managed • Standalone |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations: • IP configuration • IP renew • Device reboot • Device locating • Web GUI access • Firmware upgrade • Password configuration |
| Web UI/CLI | • Yes |
| SNMP | • No |
| Physical Specifications | |
| Item | • Dimensions (WxDxH)(mm): 173 x 97 x 29 • Weight (g): 310 |
| Packing | • Dimensions (WxDxH)(mm): 195 x 120 x 53 • Weight (g): 483 |
| Included accessories | • Multi-purpose mounting bracket with screws |
| Optional accessories (Sold separately) | • WAC500H-DMNT10F: Desktop mount Kit (10 sets) |
| MTBF (hr) | • 750,816 |
| Physical Interfaces | |
| Ethernet port | • 1x 10/100/1000M uplink • 3x 10/100/1000M downlink(including one PoE PSE) |
| Power | • PoE (802.3at): power draw 19 W (include 5W for PoE PSE) |
| PoE modes | • IEEE802.3af: Not supported • IEEE802.3at: Unrestricted • IEEE802.3bt: - |
| Environmental Specifications | |
| Operating | • Temperature 0°C to 50°C/32°F to 122°F • Humidity 10% to 90% (non-condensing) |
| Storage | • Temperature -40°C to 70°C/-40°F to 158°F • Humidity 10% to 90% (non-condensing) |
| Certifications | |
| Radio | • FCC Part 15C • FCC Part 15E • ETSI EN 300 328 • EN 301 893 • LP0002 • EN 60601-1-2 |
| EMC | • FCC Part 15B • EN 301 489-1 • EN 301 489-17 • EN55022 • EN55024 • EN61000-3-2/-3 • BSMI CNS13438 |
| Safety | • EN 60950-1 • IEC 60950-1 • BSMI CNS14336-1 |
