Thiết bị Wireless Zyxel WAC5302D-S
| Model | WAC5302D-S |
| RF Specifications | |
| Antenna gain | 5 dBi/5 dBi |
| Support data rate | 802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40 MHz; GI = 400 ns) 802.11ac: up to 866 Mbps in MCS9 (80 MHz; 2 spatial streams; GI = 400 ns) |
| Receive sensitivity | Min. Rx sensitivity to -98 dBm |
| LAN | |

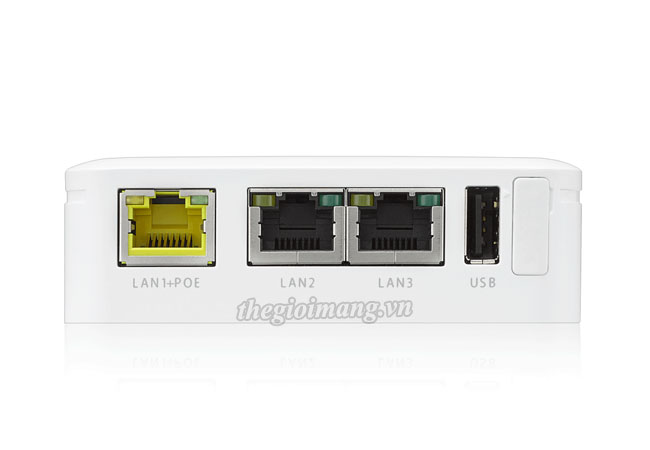

| Number of LAN ports | 1 x 100/1000 Mbps POE port (PD) 3 x 100/1000 Mbps RJ-45 (including one PoE PSE) |
| PoE | Yes |
| PoE power draw | • 802.3at PoE: 20W (include 7W for PoE PSE) • 802.3af PoE: 12W (PoE PSE disabled) |
| WLAN Features | |
| WEP | Yes |
| WPA/WPA2-PSK | Yes |
| WPA2 | Yes |
| WPA/WPA2-Enterprise | Yes |
| Fast roaming | Pre-authentication and PMK caching |
| EAP types | TLS, TTLS, PEAP, FAST, AKA and SIM |
| Number of multiple SSID | 16 |
| IEEE 802.1x | Yes |
| MAC filtering | Yes |
| WDS/Mesh | Yes |
| Layer-2 isolation | Yes, multiple profiles |
| RADIUS authentication | Yes |
| Network | |
| VLANs | Yes |
| DHCP client | Yes |
| QoS | |
| WMM | Yes |
| WMM power saving | Yes |
| Heat dissipation (BTU/hr) | 81.9 |
| Zyxel One Network | |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations ■ IP configuration ■ IP renew ■ Device reboot ■ Device locating ■ Web GUI access ■ Firmware upgrade ■ Password configuration ■ One-click quick association with Zyxel AP Configurator (ZAC) |
| Smart Connect | • Discover neighboring devices • One-click remote management access to the neighboring Zyxel devices |
| Management | |
| ZAC | • Batch AP configuration • Batch AP firmware upgrade • Batch AP profile backup |
| Standalone AP Mode | Yes |
| Managed AP Mode | Yes |
| CLI | Yes |
| Web GUI | Yes |
| SNMP | Yes |
| Physical Specifications | |
| Item | Dimensions (WxDxH)(mm/in.) 90 x 170 x 29/3.54 x 6.69 x 1.14 Weight (g/lb.) 0.32/0.71 |
| Packing | Dimensions (WxDxH)(mm/in.) 190 x 110 x 55/7.48 x 4.33 x 2.16 Weight (g/lb.) 0.54/1.19 |
| Included accessories | Multi-purpose mounting bracket with screws |
| Environmental Specifications | |
| Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) |
| Storage | Temperature -30°C to 70°C/-22°F to 158°F Humidity 10% to 90% |
