Trang chủ > Sản phẩm > Thiết bị mạng giá rẻ > Thiết bị mạng Draytek > VigorSwitch Q2200x

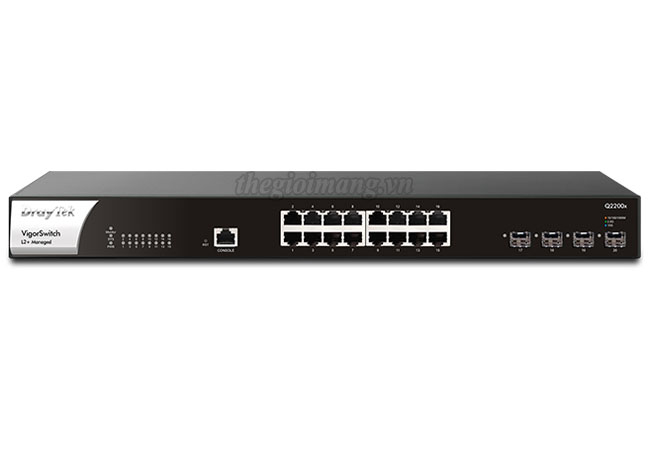

VigorSwitch Q2200x

DrayTek VigorSwitch Q2200x - Full 2.5GbE L2+ Managed Switch

  • 16 × 2.5G ports
  • 4 × 10G fiber SFP+
  • L2+ Managed
  • Switching Capacity: 160G
  • 1U Rackmount
  • Quản lý tập trung bằng SWM / VigorConnect / VigorACS 3.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch DrayTek VigorSwitch Q2200x

Sản phẩm VigorSwitch Q2200x
Interface

LAN Port

16x 10/100/1000/2500Mbps Ethernet, RJ-45
4x 1000Mbps/10Gbps SFP+ slot
Console Port 1x RJ-45
Button 1x Factory Reset Button
Capacity
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10 KB
L3 Routing Table 6k static route + 512 prefix route
Physical
Power Input AC 100-240V @ 0.9A
Dimension (mm) 440(W) x 205(D) x 44(H)
Weight 2.8 kg (6.0 lb)
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Management
  • Web Interface: HTTP, HTTPS
  • Command Line Interface: Telnet, SSH v2
  • OpenVPN Client: Certificate-based authentication
  • User Authentication: Local Database, RADIUS, TACACS+
  • sFlow: Có
  • SNMP: v1, v2c, v3
  • Private MIB: Có
  • RMON Group: 1, 2, 3, 9
  • LLDP: LLDP-MED, Media Endpoint Discovery Extension
  • Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
  • Syslog: Có
  • 2-Level Admin Privilege: Có
  • Multiple Admin Accounts: Có
  • Managed by VigorRouter SWM: Có
  • Managed by VigorConnect: Có
  • Managed by VigorACS 3: Có
  • Config File Export/Import: Có
  • Dual Image: Có
  • SNTP (Simple Network Time Protocol): Có
  • Diagnostics Tools: Port Mirroring, Ping, Cable Test

Sản phẩm liên quan

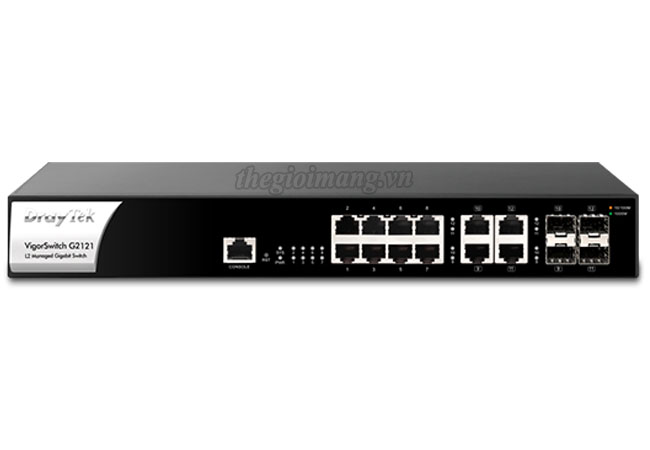

VigorSwitch G2121
DrayTek VigorSwitch G2121: 12-Port Layer 2 Managed Gigabit Switch. ...

Liên hệ để có giá tốt

VigorSwitch G2540x
DrayTek VigorSwitch G2540x: 54-Port Layer 2+ Managed 10G Switch. ...

Liên hệ để có giá tốt

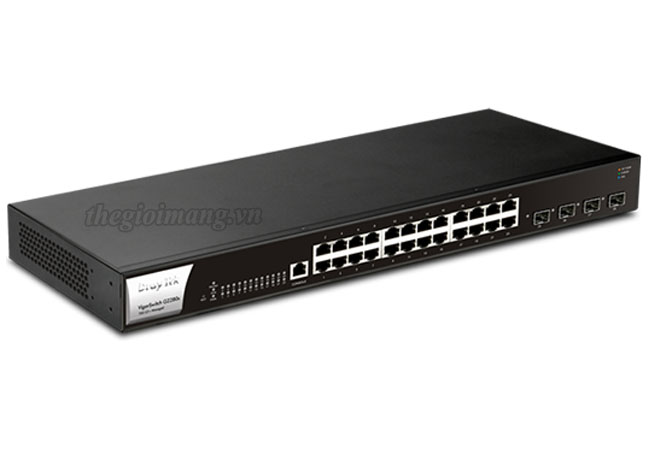

VigorSwitch G2280x
DrayTek VigorSwitch G2280x: 28-Port Layer2+ Managed Gigabit Switch...

Liên hệ để có giá tốt

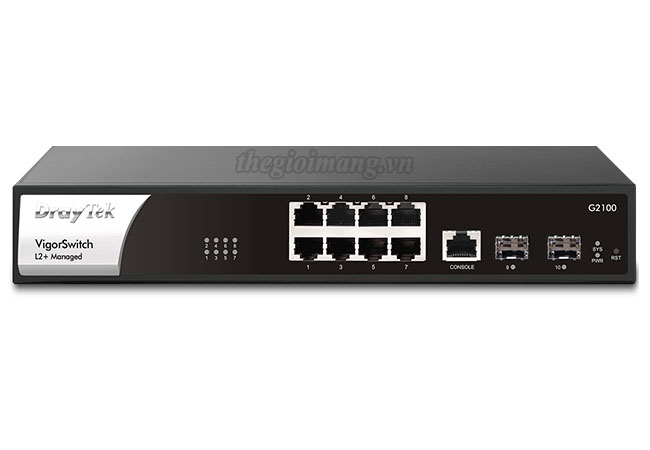

VigorSwitch G2100
