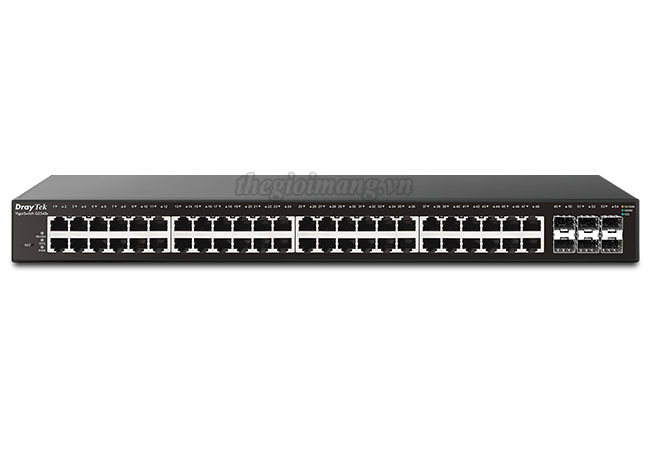

Thiết bị chuyển mạch DrayTek VigorSwitch G2540xs
| Sản phẩm |
VigorSwitch G2540xs |
|
PHẦN CỨNG
|
| Port |
48 x 10/100/1000Mbps Ethernet, RJ-45
6 x 1/10 Gbps SFP+ slot |
| Nguồn |
Power Voltage: 100 ~ 240VAC, 50 ~ 60 Hz |
| Nút |
1 x Factory Reset |
| Kích thước |
441(W) x 270(D) x 45(H) |
| Trọng lượng |
3.97 kg (8 lb) |
|
PHẦN MỀM
|
| Operation Mode |
- Web Interface: HTTP, HTTPS
- Command Line Interface:Telnet, SSH
- OpenVPN Client: Certificate-based authentication
- User Authentication: Local Database, RADIUS, TACACS+
- sFlow
- OpenFlow: 1.3, Table size: 1920
- SNMP: v1, v2c, v3
- Private MIB: Có
- RMON Group: 1, 2, 3, 9
- LLDP: LLDP-MED, Media Endpoint Discovery Extension
- Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
- Syslog: Có
- 2-Level Admin Privilege: Có
- Multiple Admin Accounts: Có
- Managed by Vigor Router SWM: Có
- Config File Export/Import: Có
- Dual Image: Có
- SNTP (Simple Network Time Protocol)
- Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test
- Layer 3 Features: Static Route, VLAN Route
|
| Chuẩn tương thích |
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- IEEE802.3ae 10GBase-X
- 802.3x Flow Control
- 802.3 Auto-Negotiation
- 802.1q Tag-based VLAN
- 802.1p Class of Service
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- 802.3ad LACP
- 802.1ad QinQ
- 802.1x Port Access Control
- 802.1AB LLDP
- 802.3az EEE
|
| Management |
- Multiple User Account
- Two-level Security (Admin/User)
- HTTP(s) Web User Interface
- Simple Network Time Protocol
- Link Layer Discovery Protocol
- LLDP-MED, Media Endpoint Discovery Extension
- Simple Network Management Protocl v1/v2c/v3
- Support Generic Traps
- Command Line Interface (CLI) via Telnet/SSH
- DrayTek Switch Management
|
| Tính năng nâng cao |
VLAN:
- Max.Number of VLAN: 256
- VLAN Type:
- 802.1q Tag-based
- MAC-based
- 802.1v Protocol-Based
- Management VLAN
- Voice VLAN
- Surveillance VLAN
QoS:
- Number of QoS Queues: 8
- Queue Scheduling: SPQ, WRR
- QoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
- Rate Limit & Shaping: yes
Security:
- Access Control List: MAC, IPv4, IPv6
- Storm Control: Broadcast, Unknown Multicast, Unknown Unicast
- DoS Defense: yes
- 802.1x Port Access Control: yes
- IP Source Guard
- IP Conflict Prevention
- Loop Protection
- Dynamic ARP Inspection
- DHCP Snooping with Option 82
|
|
THÔNG SỐ KHÁC
|
| Môi trường |
- Operating Temperature: 0 to 45°C
- Storage Temperature: -40 to 70°C
- Operating Humidity: 10 to 90% non-condensing
- Storage Humidity: 5 to 90% non-condensing
|
