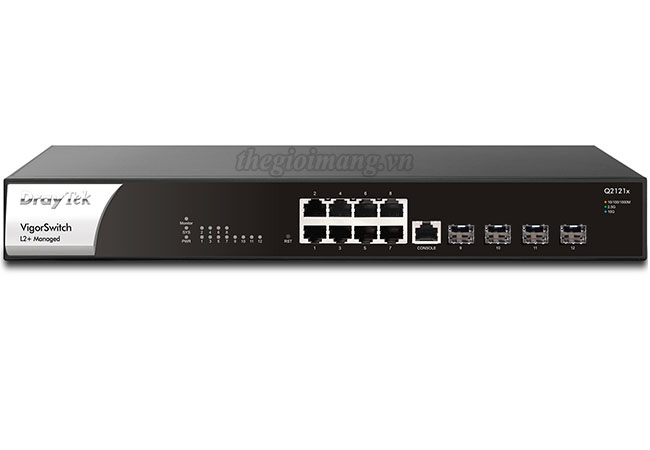

VigorSwitch Q2121x

DrayTek VigorSwitch Q2121x - 2.5GbE L2+ Managed Switch

  • 8 × 2.5G Ethernet RJ-45 ports
  • 4 × 10G SFP+ slot
  • L2+ Managed
  • Switching Capacity: 120G
  • 1U Rackmount
  • Managed by SWM / VigorConnect / VigorACS 3.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch DrayTek VigorSwitch Q2121x

Sản phẩm VigorSwitch Q2121x
Interface

LAN Port

8x 10/100/1000/2500Mbps Ethernet, RJ-45
4x 1000Mbps/10Gbps SFP+ slot
Console Port 1x RJ-45
Button 1x RST Button
Capacity
Buffer Size 12 Mbit
Switching Capacity 120 Gbps
Forwarding Rate 89.28 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10 KB
L3 Routing Table 6k static route + 512 prefix route
Physical
19-inch Rack Mountable Mouting Kit Included
Power Input AC 100-240V @ 0.6A
Max. Power Consumption 25.4 watts
Dimension (mm) 355(W) x 205(D) x 44(H)
Operating Temperature 0 to 45°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Management
  • Web Interface: HTTP, HTTPS
  • Command Line Interface: Telnet, SSH v2
  • OpenVPN Client: Certificate-based authentication
  • User Authentication: Local Database, RADIUS, TACACS+
  • sFlow
  • SNMP: v1, v2c, v3
  • Private MIB
  • RMON Group: 1, 2, 3, 9
  • LLDP: LLDP-MED, Media Endpoint Discovery Extension
  • Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
  • Syslog
  • 2-Level Admin Privilege
  • Multiple Admin Accounts:
  • Managed by VigorRouter SWM
  • Managed by VigorConnect
  • Managed by VigorACS 3
  • Config File Export/Import
  • Dual Image
  • SNTP (Simple Network Time Protocol)
  • Diagnostics Tools: Port Mirroring, Ping, Cable Test

Sản phẩm liên quan

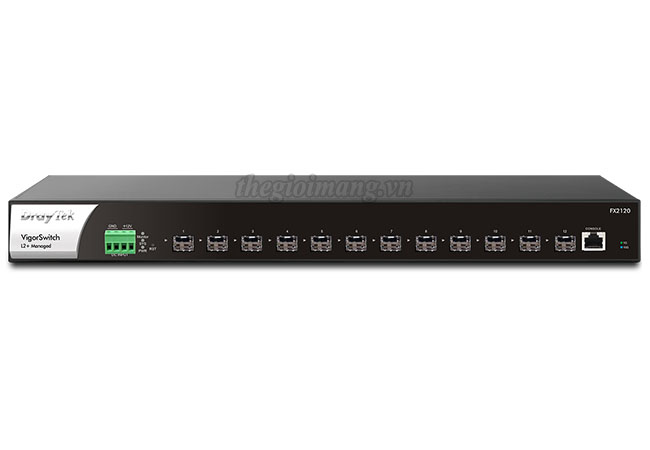

VigorSwitch FX2120

DrayTek VigorSwitch FX2120: 12-SFP+ Port Layer 2+ Managed...

Liên hệ để có giá tốt

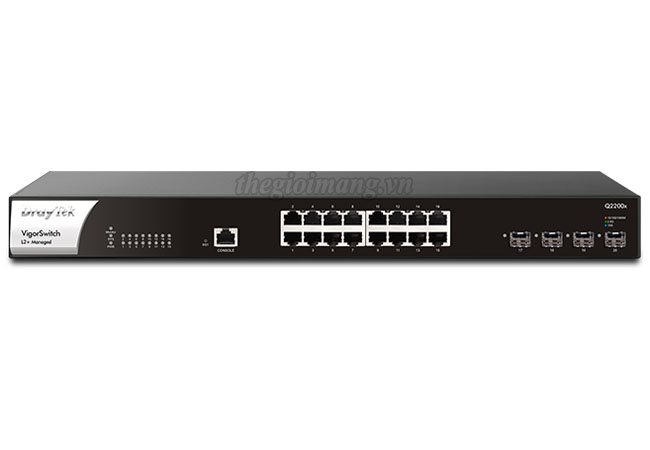

VigorSwitch Q2200x

DrayTek VigorSwitch Q2200x - Full 2.5GbE L2+ Managed Switch

  • 16...

Liên hệ để có giá tốt

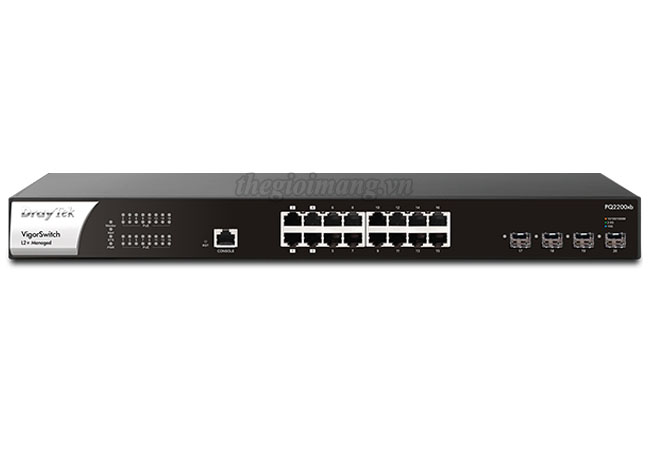

VigorSwitch Q2200xb
