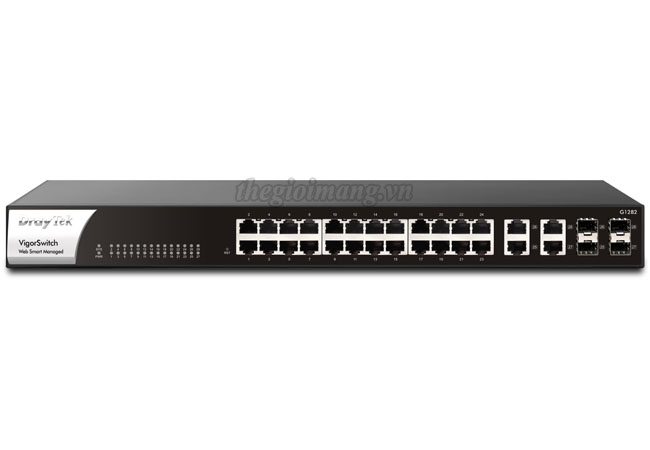

VigorSwitch G1282

DrayTek VigorSwitch G1282: 24 Port Web Smart Gigabit Switch with 4 Gigabit Lan/SFP combo uplink ● 24-port LAN Gigabit ● 4-port combo LAN Gigabit + slot SFP quang Gigabit ● Cấu hình bằng giao diện web và dòng lệnh ● Quản lý tập trung bằng SWM / VigorConnect / VigorACS2 / Cloud DrayTek Free

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị mạng DrayTek VigorSwitch G1282

Product VigorSwitch G1282

Physical Interfaces

24 RJ-45 Ethernet Ports – 10/100/1000Mbps
Factory Reset Button
4 Selectable Ports (Nos. 25-28), use as either:
 ● 10/100/1000BaseT (Gigabit) Ethernet
 ● or SFP (1000M) Ports for Uplink / Fibre
VLAN 802.1q Tag-based VLAN
Port-based & MAC-based VLANs
Up to 255 VLANs (out of 4096 VLAN IDs)
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Management VLAN
Port Isolation (Protected Ports
QoS Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
 ● 802.1p CoS
 ● DSCP
 ● CoS-DSCP
 ● IP Precedence ToS
Network Security IP Source Guard with ARP inspection
IP Conflict Prevention
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
Protected Port / Port Isolation
Static Port Security
Loop Detection & Prevention
Access Control Lists (ACL)
 ● Up to 512 ACL Entries
 ● Source and destination MAC
 ● VLAN ID
 ● IPv4/v6 address
 ● Protocol
 ● TCP/UDP port
Spanning Tree Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Link Aggregation Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing
Management Central Management
 ● VigorACS
 ● VigorConnect
 ● Vigor Router Switch Management (requires router firmware support)
IPv4 & IPv6 Dual-Stack
Web User Interface
Firmware Upgrade/Backup
Configuration Backup/Restore
Factory Default
System Reboot
2-level Admin Privileges
Multiple Admin Accounts
Command Line Interface (CLI) via SSH/Telnet
OpenVPN Client with Certificate-based auth SNMP v1, v2c, v3 (with Generic Traps)
SNTP (Simple Network Time Protocol)
LLDP(802.1ab) + MED
Diagnostics Port Status & Usage display
CPU/RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
 ● Port Status
 ● Port Speed Change
 ● System Restart
 ● Device Check
 ● IP Conflict
 ● ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test
IPv4 Features DHCP Client
DNS Client
IPv6 Features Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client
Operating Requirements Power Input Requirements: 100-240VAC
Power supply: Internal
Maximum Input Power Consumption: 36 Watts
Cooling: Passively cooled, no fan
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 10% to 90% RH (non-condensing)
Physical Specifications Dimensions: 441 x 206 x 44 mm (W x D x H)
Rack mountable: 1U
Weight: 2.8 kg

DrayTek VigorSwitch G1282
24 Port Web Smart Gigabit Switch with 4 Gigabit Lan/SFP combo uplink

  • 24 port LAN Gigabit
  • 4 port combo LAN Gigabit + slot SFP quang Gigabit
  • Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, VoIP VLAN
  • Tính năng LACP giúp gộp băng thông đường truyền
  • Tính năng Spanning Tree giúp tăng cường độ ổn định hệ thống
  • IGMP Snooping, QoS tối ưu cho dịch vụ âm thanh và video
  • Tính năng Storm Control, DoS Attack Prevention
  • Cấu hình bằng giao diện web và dòng lệnh
  • Quản lý tập trung bằng SWM tích hợp trên Router DrayTek / phần mềm VigorConnect (miễn phí), hoặc phần mềm VigorACS2 (phí hằng năm) hoặc cloud DrayTek Free

Sản phẩm liên quan

VigorSwitch G1085
DrayTek VigorSwitch G1085: 8-Port Web Smart Gigabit Switch. ...

Liên hệ để có giá tốt

VigorSwitch G2121
DrayTek VigorSwitch G2121: 12-Port Layer 2 Managed Gigabit Switch. ...

Liên hệ để có giá tốt

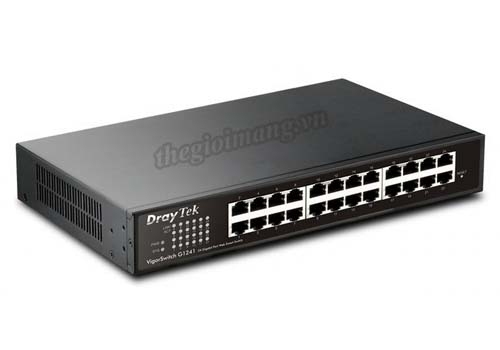

VigorSwitch G1241
