Mô tả sản phẩm

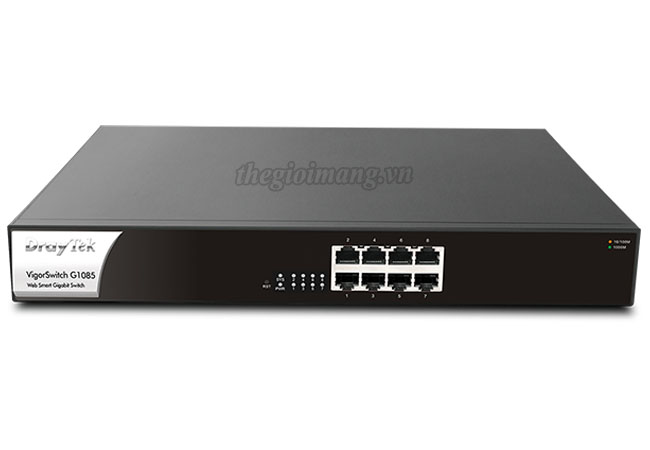

Thiết bị mạng DrayTek VigorSwitch G1085

Interface
LAN Port	8x 10/100/1000 Mbps Gigabit Ethernet, RJ-45
Factory Reset Button	1
Capacity
Buffer Size	4.1 Mbit
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps (64 bytes)
MAC Address Table	8k
Jumbo Frame	Up to 9KB
Networking Standards
IP Version	IPv4, IPv6
Ethernet Standards	802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE
VLAN
Max.Number of VLAN	256
VLAN Type	802.1q Tag-based MAC-based Management VLAN Voice VLAN Surveillance VLAN
Port Isolation	✔
QoS
Number of QoS Queues	8
Queue Scheduling	SPQ, WRR
CoS (Class of Service)	802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit/Shaping	✔
Security
Access Control List	MAC, IPv4, IPv6
Storm Control	Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense	✔
IP Source Guard	✔
IP Conflict Detection	✔
IP Conflict Prevention	✔
Loop Protection	✔
Link Aggregation
Max. Number of Group	8
Max. Number of Member in Each Group	8
Type	Static, LACP
Traffic Load Balancing	MAC Address, IP/MAC Address
Management
Web Interface	HTTP, HTTPS
Command Line Interface	Telnet, SSH v2
OpenVPN Client	Certificate-based authentication
SNMP	v1, v2c, v3
Mail Alert	Port Status, Port Speed, System Restart, IP Conflict
Managed by VigorRouter SWM	✔
Managed by VigorConnect	✔
Managed by VigorACS 2	✔
Diagnostics Tools	Port Mirroring, Ping, Cable Test
Physical
19-inch Rack Mountable	Mouting Kit Included
Power Input	AC 100-240V @ 1A
Max. Power Consumption	9 watts
Dimension	330mm x 230mm x 44mm
Weight	1.83 kg (4.03 lb)
Operating Temperature	0 to 45°C
Operating Humidity	10 to 90% non-condensing
