Name: Trendnet TPE-TG82ES
Brand: Trendnet
SKU: TPE-TG82ES
Rating: 5 (25 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

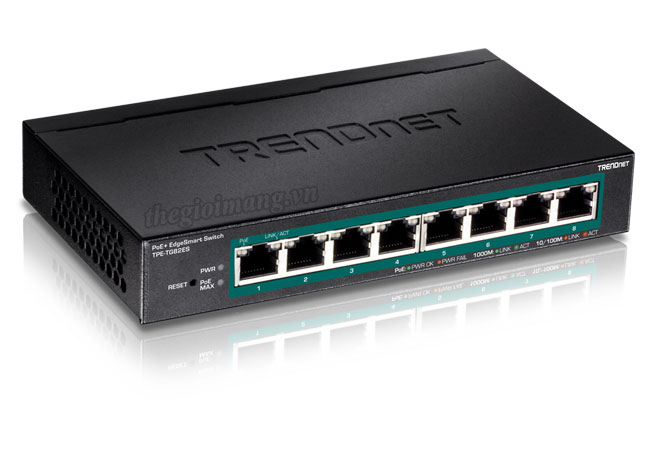

Thiết bị mạng Switch Trendnet TPE-TG82ES

Model	TPE-TG82ES
Device Interface	8 x Gigabit PoE+ ports LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 16Gbps RAM buffer: 192KB MAC Address Table: 4K entries Jumbo Frames: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE+ support Enable/disable 802.3az Power Saving Wall mountable
Power	Input: 100 – 240V AC, 50/60Hz, 1.2A Output: 54V DC, 1.67A external power adapter Max. consumption: 68.6W
PoE	PoE budget: 64W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan / Acoustics	Fanless design
MTBF	730,455 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.)
Weight	423g (14.92 oz.)
Certifications	CE FCC
