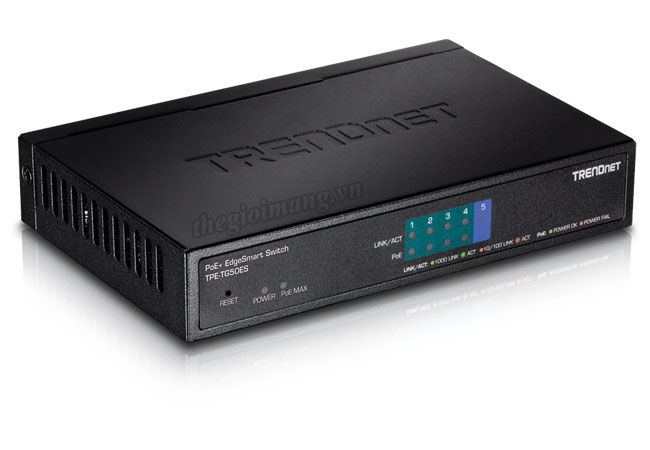

Thiết bị mạng Switch Trendnet TPE-TG50ES
| Model |
TPE-TG50ES |
| Device Interface |
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- LED indicators
- Reset button
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
| Performance |
- Packet Buffer: 125KB
- Switch Fabric: 10Gbps
- MAC Address Table: 2K entries
- Forwarding rate: 7.44Mpps (64-byte packet size)
- Jumbo Frame: 9KB
|
| Management |
- HTTP Web based GUI
- SNMP v1, v2c
- Cable diagnostic test
- Backup/Restore Configuration
- Upload Firmware
|
| Spanning Tree |
- IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
|
| Link Aggregation |
- Static link aggregation (only 1 group)
- Quality of Service (QoS)
- Port-based QoS
- 802.1p Class of Service (CoS)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
| VLAN |
- Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1/2/3
- Block unknown multicast source
- Up to 32 multicast groups
|
| Port Mirror |
|
| Storm Control |
- Broadcast (Min. Limit: 8Kbps)
- Multicast (Min. Limit: 8Kbps)
- Loopback Detection
|
| Special Features |
- PoE+ support
- Enable/disable 802.3az Power Saving
- Wall mountable
|
| Power |
- Input: 110-240V AC, 50/60Hz, 0.75A
- Output: 48V DC, 0.8A external power adapter
- Max. consumption: 34W
|
| PoE |
- PoE budget: 31W
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
|
| MTBF |
|
| Operating Temperature |
- 0° – 40° C (32° – 104° F)
|
| Operating Humidity |
|
| Dimensions |
- 150 x 98 x 28mm (5.9 x 3.86 x 1.1 in.)
|
| Weight |
|
| Certifications |
|
