Model	Ruijie RG-AP180
Hardware specifications
Radio	• Dual-radio dual-band: - Radio 1: 2.4G 11ax: 2×2 MIMO - Radio 2: 5G 11ax: 2x2 MIMO
Protocol	• Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax
Operating Bands	• 802.11b/g/n/ax: 2.4G ~ 2.483GHz • 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries)
Spatial Streams	• 4 spatial streams, 2x2 MIMO
Max Throughput	• Maximum throughput of 2.4G: 574Mbps • Maximum throughput of 5G: 1.2Gbps • Maximum throughput per AP: 1.775Gbps
Modulation	• 11b: DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps • 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BP SK@6/9Mbps • 11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM • 11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM • 11ax: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
Transmit Power	• ≤100mw (20dBm, radio transmit power only)
Dimensions	• 116mm * 86mm *40mm
Weight	• 0.37kg
Service Ports	• Front: 4 10/100/1000Mbps Ethernet ports • Rear: 1 10/100/1000Mbps uplink port
Power Supply	• Support PoE • Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)
11ax Feature	• Support 802.11ax • Support MU-MIMO
Management Port	• 1 Micro USB port (hidden)
Reset	• Support (hidden)
LED indicator	• Support (hidden) The indicator can be switched off
Built-in Antenna	• Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)
IoT Protocol	• Support Bluetooth5.0 (BLE), Zigbee
Power Consumption	• <10W
IP Rating	• IP41
MTBF	• 250,000 hours
Anti-theft	• Standard: ordinary screws
Color of AP Enclosure	• White
Wi-Fi Alliance	• Wi-Fi CERTIFIED™ a, b, g, n, ac • Wi-Fi CERTIFIED 6™ • WPA3™-Enterprise, Personal • Wi-Fi Enhanced Open™ • Wi-Fi Agile Multiband™ • WMM®
Relevant Standard
Safety Standard	• EN/IEC 62368-1
EMC Standard	• EN301 489, EN55032, EN55035
Health Standard	• EN 62311
Radio Standard	• EN300 328, EN301 893
Environment	• Operating temperature: 0°C~45°C • Storage temperature: -40°C~70°C • Operating humidity: 5%~95% (non-condensing) • Storage humidity: 5%~95% (non-condensing)
Installation Mode	• Compatible with UK/US/EU • Junction box *Universal Mount Kit need to purchase separately for US/EU junction box
Software Specifications
WLAN
Maximum clients per AP	• 1024
BSSID capacity	• 8 (recommended to configure a maximum of 5 BSSIDs per radio in actual application)
SSID hiding	• Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID	• Support
Remote Intelligent Perception Technology (RIPT)	• Support
Intelligent load balancing based on the number of users or traffic	• Support
STA control	• SSID/radio-based
Bandwidth control	• STA/SSID/AP-based speed control
Security
PSK, Web, and 802.1x authentication	• Support
Data encryption	• WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
QR code authentication	• Support (integration with RG-WS series wireless controller)
SMS authentication	• Support (integration with RG-WS series wireless controller)
PEAP authentication	• Support (integration with RG-WS series wireless controller)
Data frame filtering	• Whitelist, static/dynamic blacklist
User isolation	• Support
Rogue AP detection and countermeasure	• Support
Dynamic ACL assignment	• Support
RADIUS	• Support
CPU Protection Policy (CPP)	• Support
Network Foundation Protection Policy (NFPP)	• Support
Wireless Intrusion Detection System (WIDS)	• Support
Routing
IPv4 address	• Static IP address or DHCP
IPv6	• Support
Multicast – IGMP Snooping	• Support
Management and Maintenance
Supported wireless LAN controllers	• Ruijie WS Series Wireless Controller • Ruijie MACC-Base Software Controller • Ruijie Cloud (Public Cloud)
Management protocol	• Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS)	• Support
SNMP	• SNMPV1,V2c,V3
Syslog / Debug	• Support
FAT/FIT/MACC mode switching	• Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

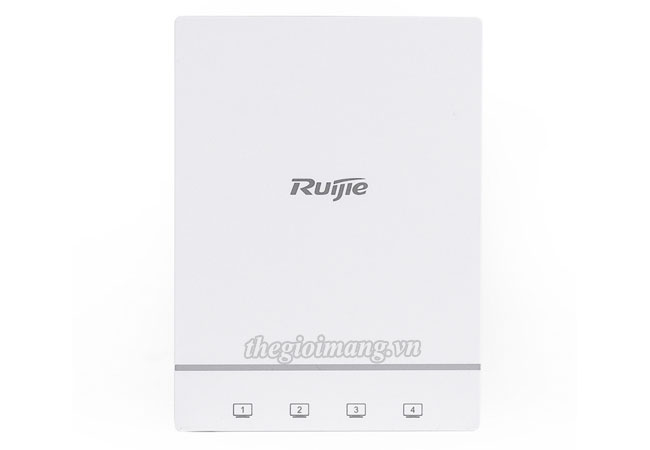

RG-AP180 : Wall Plate Wi-Fi 6 (802.11ax) Access Point, standard size of 86-type faceplate, built-in antenna, dual-radio dual-band, support 574.5Mbps @2.4G and 1.2Gbps @5G, up to 4 spatial streams and 1774.5Mbps access rate per AP, support concurrent 802.11a/b/g/n/ac and 802.11ax, FAT/FIT mode, PoE and local power supply, bundled with Ruijie Cloud Service lifetime license.

Data sheet Ruijie RG-AP180 Wireless Wall Plate AP
