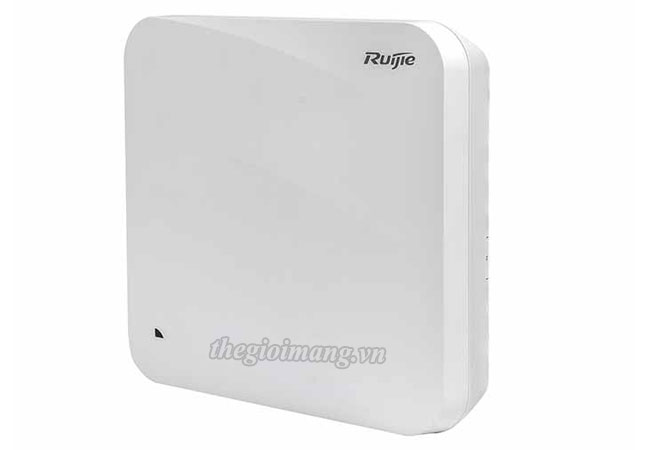

Ruijie RG-AP840-I

Ruijie RG-AP840-I Indoor High-density Wi-Fi 6 Enterprise Access Point :

Concurrent dual-band, dual-radio (2x2:2 in 2.4GHz, 4x4:4 in 5GHz)
Up to 6 total spatial streams and maximum 5.2Gbps wirelessthroughput
3 Gigabit Ethernet ports (LAN3 port supports IoT sensor extension)
Integrated with BLE
Ruijie Cloud Service lifetime license

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị Wi-Fi 6 Indoor Enterprise Access Point Ruijie RG-AP840-I

Model	Ruijie RG-AP840-I
Hardware specifications
Radio	• Dual-radio dual-band (2.4G+5G): 2.4G 2×2 MIMO + 5G 4×4 MIMO
Protocol	• Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands	• 802.11b/g/n: 2.4G ~ 2.483GHz • 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries)
Spatial Streams	• Up to 6: 2×2:2 in 2.4GHz , 4×4:4 in 5GHz
Max Throughput	• Maximum throughput of 2.4G: 400Mbps • Maximum throughput of 5G: 4.8Gbps • Maximum throughput per AP: 5.2Gbps
Modulation	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM)
Receiver Sensitivity	• 11b: -96dBm (1Mbps), -93dBm (5Mbps), -89dBm (11Mbps) • 11a/g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) • 11n: -90dBm (MCS0), -70dBm (MCS7), -89dBm (MCS8), -68dBm (MCS15) • 11ac HT20: -88dBm (MCS0), -63dBm (MCS9) • 11ac HT40: -85dBm (MCS0), -60dBm (MCS9) • 11ac HT80: -82dBm (MCS0), -57dBm (MCS9) • 11ax HT80: -82dBm (MCS0), -57dBm (MCS9), -52dBm (MCS11) • 11ax HT160: -80dBm (MCS0), -49dBm (MCS11)
Antenna	• Integrated antenna design
Antenna Gain	• 2.4G: 3dBi • 5G: 3dBi
Service Ports	• 3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out)
Management Port	• 1 console port
USB	• 1 USB 2.0 port
IoT Capability	• BLE
Reset Button	• Support
Anti-theft Lock	• Support
LED Indicator	• 1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)
Transmit Power	• ≤100mw (20dBm) (vary depending on different countries)
Adjustable Power	• 1dBm
Power Supply	• Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed.) • PoE+ (802.3at) • PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled
Power Consumption	• <25.4W
Physical Specifications
Temperature	• Operating Temperature: -10°C to 50°C • Storage Temperature: -40°C to 70°C
Humidity	• Operating Humidity: 5% to 95% (non-condensing) • Storage Humidity: 5% to 95% (non-condensing)
Installation Mode	• Ceiling/wall-mountable
Dimensions (W x D x H)	• 220mm ×220mm x48.85mm (Height of the AP only, excluding the mount kit)
Weight	• 1.30kg
IP Rating	• IP41
Certifications and Compliance
Safety Standard	• GB4943, EN/IEC 60950-1
EMC Standard	• GB9254, EN301 489, EN 55032, EN 61000, EN 55035
Health Standard	• EN 62311
Radio Standard	• SRRC, EN300 328, EN301 893
Software Specifications
WLAN
Maximum clients per AP	• 1024
BSSID capacity	• Up to 32
SSID hiding	• Support
5G Priority (Band Steering)	• Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID	• Support
Remote Intelligent Perception Technology (RIPT)	• Support
Intelligent device recognition technology	• Support
Intelligent load balancing based on the number of users or traffic	• Support
STA control	• SSID/radio-based
Bandwidth control	• STA/SSID/AP-based bandwidth control
Data encryption	• WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits)
PSK and web authentication	• Support
PPSK authentication (For Employee)	• Support (require wireless controller)
802.1x authentication	• Support
PEAP authentication	• Support
Data frame filtering	• Whitelist, static/dynamic blacklist
User isolation	• Support
Rogue AP detection and countermeasure	• Support
Dynamic ACL assignment	• Support
RADIUS	• Support
CPU Protection Policy (CPP)	• Support
Network Foundation Protection Policy (NFPP)	• Support
IP
IPv4 and IPv6 address	• Support
Multicast routing	• Multicast to unicast conversion
DHCP service	• DHCP Snooping, Option 82, Server, Client
Management and Maintenance
Supported wireless LAN controllers	• Ruijie WS Series Wireless Controller • Ruijie MACC-Base Software Controller • Ruijie Cloud (Public Cloud)
Management protocol	• Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS)	• Support
SNMP	• SNMPV1,V2c,V3
Syslog / Debug	• Support
FAT/FIT/MACC mode switching	• Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

RG-AP840-I : High-density Wi-Fi 6 (802.11ax) indoor wireless access point, concurrent dual-band dual-radio (2x2:2 in 2.4GHz, 4x4:4 in 5GHz), up to 6 total spatial streams and maximum 5.2Gbps wireless throughput, 3 Gigabit Ethernet ports (LAN3 port supports IoT sensor extension), integrated with BLE,support PoE+ and local power supply.

Data sheet Ruijie RG-AP840-I Wireless Access Point
