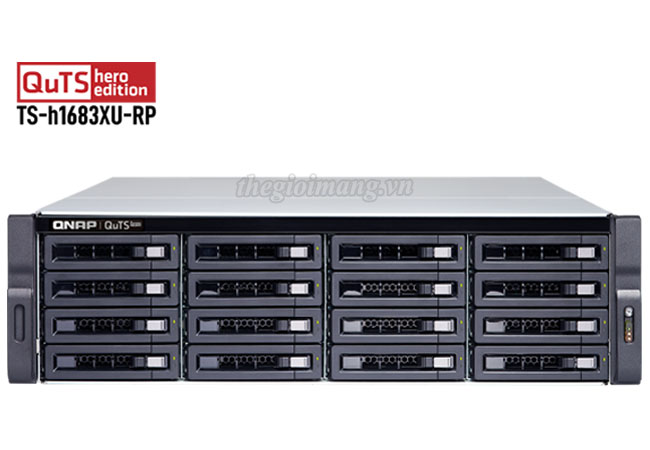

Thiết bị lưu trữ QNAP TS-h1683XU-RP
| Mã sản phẩm |
TS-h1683XU-RP-E2236-128G
|
||
| CPU | Intel® Xeon® E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz) | ||
| CPU Architecture | 64-bit x86 | ||
| Floating Point Unit | ✔ | ||
| Encryption Engine | ✔ (AES-NI) | ||
| System Memory | 128 GB UDIMM DDR4 ECC (4 x 32GB) | ||
| Maximum Memory | 128 GB (4 x 32 GB) | ||
| Memory Slot | 4 x Long-DIMM DDR4 | ||
| Flash Memory | 5GB (Dual boot OS protection) | ||
| Drive Bays | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility | 3.5-inch bays: - 3.5-inch SATA hard disk drives - 2.5-inch SATA hard disk drives - 2.5-inch SATA solid state drives |
||
| Hot-swappable | ✔ | ||
| SSD Cache Acceleration Support | ✔ | ||
| Gigabit Ethernet Port (RJ45) | 4 | ||
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port | ||
| PCIe Slot | 4 - Slot 1: PCIe Gen 2 x4 (PCH) - Slot 2: PCIe Gen 3 x8 (CPU) - Slot 3: PCIe Gen 3 x4 (CPU) - Slot 4: PCIe Gen 3 x4 (CPU) |
||
| USB 3.2 Gen 2 (10Gbps) Port | - 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps - 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
||
| Form Factor | 3U Rackmount | ||
| LED Indicators | HDD 1-16, Status, LAN, storage expansion port status | ||
| Buttons | Power, Reset | ||
| Dimensions (HxWxD) | 130 × 481 × 573.5 mm | ||
| Weight (Net) | 13.76 kg | ||
| Operating temperature | 0 - 40 °C (32°F - 104°F) | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Supply Unit | 500W(x2), 100-240V | ||
| Power Consumption | 130.43 W | ||
| Fan | System fan: 4 x 92mm, 12VDC | ||
| Kensington Security Slot | Yes | ||
| Max. Number of Concurrent Connections (CIFS) |
700 | ||
16-Bays, Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), 128 GB DDR4 ECC memory (4 x 32 GB), redundant power supply.
QNAP TS-h1277XU-RP: 12-Bays, AMD Ryzen™ 7 3700X 8 cores/16...
Liên hệ để có giá tốt
