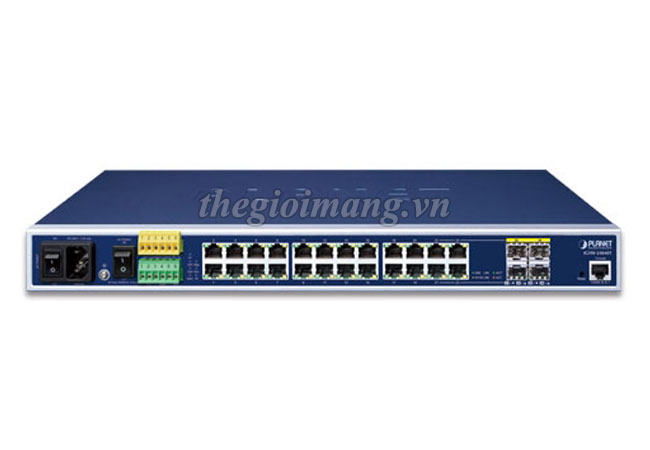

Bộ chuyển mạch công nghiệp L2+ 24 cổng 1G Planet IGSW-24040T
Planet IGSW-24040T là thiết bị chuyển mạch Gigabit công nghiệp quản lý L2+, có 24 cổng 10/100/1000Mbps và 4 cổng SFP Combo, IGSW-24040T có khả năng hoạt động trong dải nhiệt độ từ -40 đến 75 độ C, phù hợp cho các ứng dụng tự động hóa nhà máy, hệ thống giám sát giao thông, năng lượng, thành phố thông minh và mạng viễn thông.
Thông số kỹ thuật
| Model | IGSW-24040T |
| Hardware Specifications | |
| Hardware Version | • 4 |
| Copper Ports | • 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | • 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24 • Compatible with 100BASE-FX SFP transceiver |
| Console | • 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| SDRAM | • 128Mbytes |
| Flash Memory | • 64Mbytes |
| Reset Button | • < 5 sec: System reboot • > 5 sec: Factory default |
| Connector | • Removable 6-pin terminal block for power input • Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 • Removable 6-pin terminal block for DI/DO interface • Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | • One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| DI/DO | • 2 Digital Input (DI): Level 0: -24~2.1V Level 1: 2.1~24V Max. input current: 10mA • 2 Digital Output (DO): Open collector to 24VDC, 100mA |
| Dimensions (W x D x H) | • 444 x 200 x 44.2 mm, 1U height |
| Weight | • 2788g |
| Power Consumption | • Max. 19.7 watts/67.2 BTU |
| Power Requirements – AC | • AC 100~240V, 50/60Hz 0.5A |
| Power Requirements – DC | • DC 36~60V, 0.7A |
| EFT Protection | • 6KV DC |
| ESD Protection | • 6KV DC |
| LED | • System: AC (Green), DC1 (Green), DC2 (Green), Fault (Red) Ring (Green), R.O. (Green), DI/DO (Red) • 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Orange) • 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000Mbps LNK/ACT (Green) 100Mbps LNK/ACT (Orange) |
| Switching Specifications | |
| Switch Architecture | • Store-and-Forward |
| Switch Fabric | • 48Gbps/non-blocking |
| Throughput | • 35.71Mpps@64Bytes |
| Address Table | • 8K entries, automatic source address learning and aging |
| Shared Data Buffer | • 4M bits |
| Flow Control | • IEEE 802.3x pause frame for full-duplex • Back pressure for half-duplex |
| Jumbo Frame | • 9K bytes |
| Layer 2 Management Functions | |
| Port Configuration | • Port disable/enable • Auto-negotiation 10/100/1000Mbps full and half duplex mode selection • Flow control disable/enable |
| Port Status | • Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | • TX/RX/Both • Many-to-1 monitor |
| VLAN | • 802.1Q tagged based VLAN • Q-in-Q tunneling • Private VLAN Edge (PVE) • MAC-based VLAN • Protocol-based VLAN • Voice VLAN • IP Subnet-based VLAN • MVR (Multicast VLAN registration) • Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | • IEEE 802.3ad LACP/static trunk • 12 groups with 8 port per trunk |
| Spanning Tree Protocol | • IEEE 802.1D Spanning Tree Protocol (STP) • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| IGMP Snooping | • IGMP (v1/v2/v3) snooping • IGMP querier mode support • Up to 255 multicast groups |
| MLD Snooping | • MLD (v1/v2) snooping • MLD querier mode support • Up to 255 multicast groups |
| Bandwidth Control | • Per port bandwidth control • Ingress: 100Kbps~1000Mbps • Egress: 100Kbps~1000Mbps |
| QoS | • Traffic classification based, strict priority and WRR • 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tag DSCP/ToS field in IP packet |
| Ring | • Supports ERPS, and complies with ITU-T G.8032 • Supports Major ring and sub-ring • Recovery time < 10ms @ 3 units • Recovery time < 50ms @ 16 units |
| Synchronization | • IEEE 1588v2 PTP(Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock |
| Security Functions | |
| Access Control List | • IPv4/IPv6 IP-based ACL/MAC-based ACL • IPv4/IPv6 IP-based ACE/MAC-based ACE • Up to 256 entries |
| Port Security | • IEEE 802.1X – Port-based authentication • Built-in RADIUS client to co-operate with RADIUS server • RADIUS/TACACS+ user access authentication |
| MAC Security | • IP-MAC port binding • MAC filter • Static MAC address |
| Enhanced Security | • DHCP Snooping and DHCP Option82 • STP BPDU guard, BPDU filtering and BPDU forwarding • DoS attack prevention • ARP inspection • IP source guard |
| Layer 3 Functions | |
| IP Interfaces | • Max. 8 VLAN interfaces |
| Routing Table | • Max. 32 routing entries |
| Routing Protocols | • IPv4 software static routing • IPv6 software static routing |
| Management | |
| Basic Management Interfaces | • Console/Telnet/Web browser/SNMP v1, v2c |
| Secure Management Interfaces | • SSHv2, TLS v1.2, SNMP v3 |
| System Management | • Firmware upgrade by HTTP/TFTP protocol through Ethernet network • LLDP protocol • SNTP • PLANET Smart Discovery Utility • PLANET NMS System/CloudViewer |
| Event Management | • Remote/Local Syslog • System log |
| SNMP MIBs | • RFC 1213 MIB-II • RFC 1493 Bridge MIB • RFC 1643 Ethernet MIB • RFC 2863 Interface MIB • RFC 2665 Ether-Like MIB • RFC 2819 RMON MIB (Group 1, 2, 3 and 9) • RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB • RFC 2863 IF-MIB • RFC 2933 IGMP-STD-MIB • RFC 3411 SNMP-Frameworks-MIB • RFC 4292 IP Forward MIB • RFC 4293 IP MIB • RFC 4836 MAU-MIB • IEEE 802.1X PAE • LLDP |
| Standards Conformance | |
| Regulatory Compliance | • FCC Part 15 Class A, CE |
| Standards Compliance | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX/100BASE-FX • IEEE 802.3z Gigabit SX/LX • IEEE 802.3ab Gigabit 1000T • IEEE 802.3x flow control and back pressure • IEEE 802.3ad port trunk with LACP • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree Protocol • IEEE 802.1s Multiple Spanning Tree Protocol • IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging • IEEE 802.1x Port Authentication Network Control • IEEE 802.1ab LLDP • IEEE 1588v2 • RFC 768 UDP • RFC 783 TFTP • RFC 793 TCP • RFC 791 IP • RFC 792 ICMP • RFC 2068 HTTP • RFC 1112 IGMP version 1 • RFC 2236 IGMP version 2 • RFC 3376 IGMP version 3 • RFC 2710 MLD version 1 • RFC 3810 MLD version 2 • ITU G.8032 ERPS Ring |
| Environment | |
| Operating | • Temperature: -10 ~ 60 degrees C for AC power input -40 ~ 75 degrees C for DC power input • Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | • Temperature: -40 ~ 80 degrees C • Relative Humidity: 5 ~ 95% (non-condensing) |
