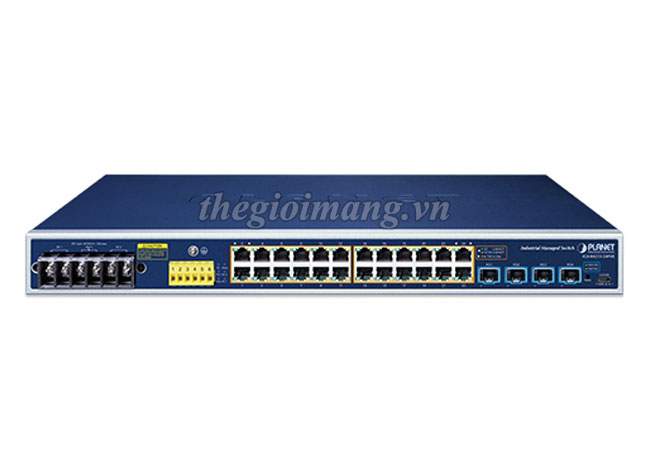

Bộ chuyển mạch công nghiệp L2+ 24 cổng 1G PoE+ Planet IGS-R4215-24P4X
Planet IGS-R4215-24P4X là switch công nghiệp L2+, tích hợp chức năng cấp nguồn PoE+ 802.3at. Với thiết kế 1U không quạt, phù hợp cho các môi trường công nghiệp khắc nghiệt. Hỗ trợ định tuyến tĩnh L3 và bộ xử lý chuyển mạch mạnh mẽ, mang lại nhiều tính năng linh hoạt cho hệ thống công nghiệp. IGS-R4215-24P4X có 24 cổng 10/100/1000BASE-T với mỗi cổng cấp nguồn lên đến 36W, 4 khe cắm SFP+ 10GBASE-X, đảm bảo hiệu suất hoạt động ổn định. Với thiết kế chắc chắn, khả năng chống chịu nhiệt độ và nhiễu điện từ tốt, IGS-R4215-24P4X phù hợp để triển khai trong các hệ thống giám sát, tự động hóa công nghiệp và ứng dụng IoT.
Thông số kỹ thuật
| Model | IGS-R4215-24P4X |
| Hardware Specifications | |
| Copper Ports | • 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24) |
| PoE Injector Port | • 24 ports with 802.3at PoE+ injector function (Ports 1 to 24) |
| SFP+ Ports | • 4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4) • Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers |
| Console | • 1 x USB Type-C to RS232 serial port (115200, 8, N, 1) |
| Reset Button | • < 5 sec: System reboot • > 5 sec: Factory default |
| Terminal Block | • Fixed 6-pin terminal block for power input Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 • Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | • One relay output for port breakdown and power failure. • Alarm relay current carry ability: 3A @ 24V DC |
| Digital Input (DI) | • 2 digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. |
| Digital Output (DO) | • 2 digital output (DO) Open collector to 24V DC, 100mA max. |
| Enclosure | • IP30 metal case |
| Installation | • Rack-mount kit |
| Dimensions (W x D x H) | • 444 x 200 x 44.2 mm, 1U height |
| Weight | • 3250g |
| Power Requirements | • Dual 48-54V DC, 12A max. |
| Power Consumption/ Dissipation | • Max. 10.7 watts / 36.6 BTU (system on) • Max. 486 watts / 1658.4 BTU (Full loading) |
| EFT Protection | • 6KV DC |
| ESD Protection | • 6KV DC |
| LED | • System: DC1 (Green) DC2 (Green) Alarm (Red) Ring (Green) R.O. (Green) I/O (Red) • Per 10/100/1000T RJ45 PoE+ Ports: Left: 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber) Right: 802.3at (Amber) • Per 10G SFP+ Interface: 1G/2.5G LNK/ACT (Green) 100/10G LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | • Store-and-forward |
| Switch Fabric | • 128Gbps/non-blocking |
| Switch Throughput@64Bytes | • 95.23Mpps @64Bytes |
| Address Table | • 16K MAC address table with auto learning function |
| Shared Data Buffer | • 12Mbits |
| Flow Control | • IEEE 802.3x pause frame for full duplex • Back pressure for half duplex |
| Jumbo Frame | • 12KBytes |
| Power over Ethernet | |
| PoE Standard | • IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | • End-span |
| PoE Power Output | • IEEE 802.3af Standard Per port 48V~54V DC (depending on the power supply), max. 15.4 watts • IEEE 802.3at Standard Per port 50V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | • 1/2(+), 3/6(-) |
| Power Power Budget | • Single Power input: 240W maximum • Dual Power input: 440W maximum ※Dual power input must be the same as DC voltage, like dual 54V. |
| Max. Number of Class 2 PDs | • 24 |
| Max. Number of Class 3 PDs | • 24 |
| Max. Number of Class 4 PDs | • 16 |
| PoE Management Functions | |
| PoE Management | • PD Alive Check • Scheduled Power Recycling • PoE Schedule • PoE Usage Monitoring • PoE Extension |
| Enhanced PoE Mode | • Standard/ Legacy/ Force |
| Active PoE Device Live Detection | • Yes |
| PoE Power Recycling | • Yes, daily or predefined schedule |
| PoE Schedule | • 4 schedule profiles |
| PoE Extend Mode | • Yes, max. up to 250 meters |
| Layer 2 Functions | |
| Port Mirroring | • TX/RX/both • Many-to-1 monitor • Up to 4 sessions |
| VLAN | • 802.1Q tag-based VLAN • 802.1ad Q-in-Q tunneling (VLAN stacking) • Voice VLAN • Protocol VLAN • Private VLAN (Protected port) • GVRP • Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | • IEEE 802.3ad LACP/Static Trunk Static Port Trunking, (Max. 8 groups with 8 ports for each group) Dynamic LACP (Max. 8 groups with 8 ports for each group) |
| Spanning Tree Protocol | • IEEE 802.1D Spanning Tree Protocol (STP) • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) • STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | • IPv4 IGMP (v2/v3) Snooping • IGMP Querier • Up to 256 multicast groups |
| MLD Snooping | • IPv6 MLD snooping v2, v3, up to 256 multicast groups |
| QoS | • 8 mapping ID to 8 level priority queues Port number 802.1p priority 802.1Q VLAN tag DSCP/IP precedence of IPv4/IPv6 packets • Traffic classification based, strict priority and WRR • Ingress/Egress Rate Limit per port bandwidth control |
| Ring | • Supports ERPS, and complies with ITU-T G.8032 • Recovery time < 450ms |
| Layer 3 Functions | |
| IP Interfaces | • Max. 64 VLAN interfaces |
| Routing Table | • Max. 32 routing entries |
| Routing Protocols | • IPv4 hardware static routing • IPv6 hardware static routing |
| Security Functions | |
| Access Control List | • IPv4/IPv6 IP-based ACL/MAC-based ACL • IPv4/IPv6 IP-based ACE/MAC-based ACE • Max. 256 ACL entries |
| Port Security | • Built-in RADIUS client to co-operate with RADIUS server • RADIUS/TACACS+ user access authentication |
| MAC Security | • IP-MAC port binding • MAC filter • Static MAC address, max. 256 static MAC entries |
| Enhanced Security | • DHCP Snooping and DHCP Option82 • STP BPDU guard, BPDU filtering and BPDU forwarding • DoS attack prevention • ARP inspection • IP source guard |
| Management Functions | |
| Basic Management Interfaces | • Console/ Telnet/ Web browser/ SNMP v1, v2c |
| Secure Management Interfaces | • SSHv2, TLS v1.2, SNMP v3 |
| System Management | • Firmware upgrade by HTTP/TFTP protocol through Ethernet network • LLDP protocol • SNTP • PLANET Smart Discovery Utility • PLANET NMS System, NMSViewerPro and CloudViewerPro App |
| Event Management | • Remote/Local Syslog • System log |
| SNMP MIBs | • RFC 1213 MIB-II • RFC 1215 Generic Traps • RFC 1493 Bridge MIB • RFC 2674 Bridge MIB Extensions • RFC 2737 Entity MIB (Version 2) • RFC 2819 RMON (1, 2, 3, 9) • RFC 2863 Interface Group MIB • RFC 3635 Ethernet-like MIB • RFC 3621 Power Ethernet MIB |
| Environment | |
| Operating | • Temperature: -40 ~ 75 degrees C • Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | • Temperature: -40 ~ 85 degrees C • Relative Humidity: 5 ~ 95% (non-condensing) |
