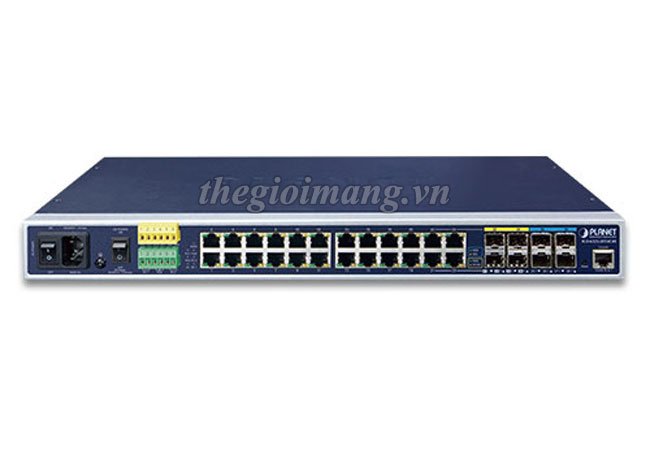

Bộ chuyển mạch công nghiệp L3 Planet IGS-6325-20T4C4X 24x1G RJ-45, 4xSFP Combo, 4xSFP+
Planet IGS-6325-20T4C4X là switch công nghiệp hiệu suất cao với 20 cổng Gigabit, 4 cổng combo Gigabit và 4 khe cắm 10G SFP+. Thiết bị hỗ trợ Layer 3, quản lý mạng thông minh (Web, CLI, SNMP), bảo mật mạnh mẽ và QoS tối ưu. Thiết kế chắc chắn, chịu nhiệt từ -40°C đến 75°C, đạt chuẩn IP30, phù hợp cho tự động hóa công nghiệp, giao thông và giám sát an ninh.
Thông số kỹ thuật
| Model | IGS-6325-20T4C4X |
| Hardware Specifications | |
| Copper Ports | • 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | • 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24 • Compatible with 100BASE-FX SFP transceiver |
| SFP+ Slots | • 4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28) • Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver |
| Console | • 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | • Store-and-Forward |
| Switch Fabric | • 128Gbps/non-blocking |
| Throughput | • 95.2Mpps@64Bytes |
| Address Table | • 16K entries, automatic source address learning and aging |
| Shared Data Buffer | • 32M bits |
| Flow Control | • IEEE 802.3x pause frame for full duplex • Back pressure for half duplex |
| Jumbo Frame | • 10K bytes |
| Reset Button | • < 5 sec: System reboot • > 5 sec: Factory default |
| Dimensions (W x D x H) | • 444 x 200 x 44.2 mm, 1U height |
| Weight | • 2980g |
| LED Indicators | • System: AC (Green), DC1 (Green), DC2 (Green), Fault (Red) Ring (Green), R.O. (Green), DI/DO (Red) • 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) • 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000Mbps LNK/ACT (Green) 100Mbps LNK/ACT (Amber) • 1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28): 1G/2.5G LNK/ACT (Green) 10G LNK/ACT (Amber) |
| Power Consumption | • AC input: Max. 36 watts/122.8 BTU • DC input: Max. 38 watts/130 BTU |
| Power Requirements – AC | • AC 100~240V, 50/60Hz 1A |
| Power Requirements – DC | • DC 24~60V, 1.5A |
| DI & DO | • 2 Digital Input (DI): Level 0: -24~2.1V Level 1: 2.1~24V • Max. input current: 10mA • 2 Digital Output (DO): Open collector to 24VDC, 100mA |
| EFT Protection | • 6KV DC |
| ESD Protection | • 6KV DC |
| Layer 2 Management Functions | |
| Port Configuration | • Port disable/enable • Auto-negotiation 10/100/1000Mbps full and half duplex mode selection • Flow control disable/enable |
| Port Status | • Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | • TX/RX/Both • Many-to-1 monitor • Rmirror – Remote Switch Port Analyzer (Cisco RSPAN) |
| VLAN | • IEEE 802.1Q tagged based VLAN • IEEE 802.1ad Q-in-Q tunneling • Private VLAN Edge (PVE) • MAC-based VLAN • Protocol-based VLAN • Voice VLAN • IP Subnet-based VLAN • MVR (Multicast VLAN registration) • Up to 4K VLAN groups, out of 4096 VLAN IDs • GVRP |
| Link Aggregation | • IEEE 802.3ad LACP/static trunk • 14 groups with 16 port per trunk |
| Spanning Tree Protocol | • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree Protocol • IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS | • Traffic classification based, strict priority and WRR • 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
| IGMP Snooping | • IGMP (v1/v2/v3) Snooping, up to 255 multicast groups • IGMP Querier mode support |
| MLD Snooping | • MLD (v1/v2) Snooping, up to 255 multicast groups • MLD Querier mode support |
| Bandwidth Control | • Per port bandwidth control • Ingress: 100Kbps~1000Mbps • Egress: 100Kbps~1000Mbps |
| Ring | • Supports ERPS, and complies with ITU-T G.8032 • Recovery time < 10ms @ 3 units • Recovery time < 50ms @16 units |
| Layer 3 Functions | |
| IP Interfaces | • Max. 128 VLAN interfaces |
| Routing Table | • Max. 128 routing entries |
| Routing Protocols | • IPv4 hardware static routing • IPv6 hardware static routing • OSPFv2 dynamic routing |
| Management | |
| Basic Management Interfaces | • Console/Telnet/Web browser/SNMP v1, v2c |
| Secure Management Interfaces | • SSHv2, TLSv1.2, SNMPv3 |
| System Management | • Firmware upgrade by HTTP protocol through Ethernet network • Configuration upload/download through HTTP • Remote syslog • System log • LLDP protocol • NTP • PLANET Smart Discovery Utility • PLANET CloudViewer app |
| Event Management | • Remote syslog • Local system log • SMTP |
| SNMP MIBs | • RFC 1213 MIB-II • RFC 1493 Bridge MIB • RFC 1643 Ethernet MIB • RFC 2863 Interface MIB • RFC 2665 Ether-Like MIB • RFC 2819 RMON MIB (Group 1, 2, 3 and 9) • RFC 2737 Entity MIB • RFC 2618 RADIUS Client MIB • RFC 2863 IF-MIB • RFC 2933 IGMP-STD-MIB • RFC 3411 SNMP-Frameworks-MIB • RFC 4292 IP Forward MIB • RFC 4293 IP MIB • RFC 4836 MAU-MIB • IEEE 802.1X PAE • LLDP |
| Environment | |
| Operating | • Temperature: -10 ~ 60 degrees C for AC power input • Temperature: -40 ~ 75 degrees C for DC power input • Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | • Temperature: -40 ~ 80 degrees C • Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Package Contents | • IGS-6325-20T4C4X • Quick installation guide • AC power cord • RJ45 dust cap • 19”rack mounting kit • RJ45 to RS232 cable |
