Bộ chuyển mạch công nghiệp L3 Planet IGS-6325-24UP4X 24x1G PoE++, 4xSFP+

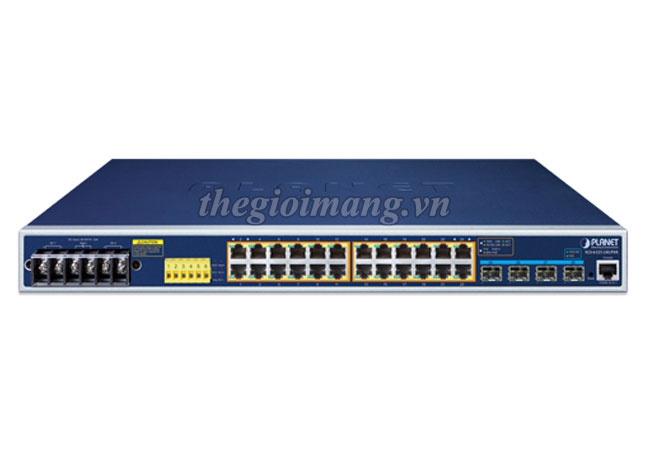

Planet IGS-6325-24UP4X là switch công nghiệp PoE++ hiệu suất cao, được thiết kế để cung cấp mạng tốc độ cao và cấp nguồn mạnh mẽ cho các thiết bị. Thiết bị hỗ trợ 24 cổng 10/100/1000BASE-T PoE++ và 4 khe cắm 10G SFP+, phù hợp với các ứng dụng công nghiệp yêu cầu băng thông cao, như giám sát an ninh, tự động hóa, IoT và hệ thống giao thông thông minh.
Thông số kỹ thuật
| Model | IGS-6325-24UP4X |
| Hardware Specifications | |
| Copper Ports | • 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | • 4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28) • Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers |
| PoE Injector Port | • 24 ports with 802.3bt PoE++ injector function from Port-1 to Port-24 |
| Console | • 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button | • < 5 sec: System reboot • > 5 sec: Factory default |
| ESD Protection | • Contact 4KVDC; Air 8KVDC |
| Connector | • 6-contact barrier terminal block for power input • Contact 1/2 for Power 1, Contact 3/4 for fault alarm, Contact 5/6 for Power 2 • Removable 6-pin terminal block for DI/DO interface • Pin 1/2 for DI 0 & 1, Pin 3/4 for DO 0 & 1, Pin 5/6 for GND |
| Alarm | • One relay output for power failure. Alarm relay current carry ability: 3A @ 24V DC |
| Digital Input (DI) | • 2 digital input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24VDC, 10mA max. |
| Digital Output (DO) | • 2 digital output (DO): Open collector to 24V DC, 100mA max. |
| Enclosure | • IP30 metal case |
| Installation | • Rack-mount kit |
| SDRAM | • 512Mbytes |
| Flash Memory | • 64Mbytes |
| Dimensions (W x D x H) | • 443.7 x 301.5 x 44 mm, 1U height |
| Weight | • 4,051g |
| Power Requirements | • Dual 48~54V DC, 32A max. |
| Power Consumption | • 52VDC Input: No Loading: 20.74W/70.8BTU/hr; Full Loading: 1,522W/5,262.9BTU/hr • 54VDC Input: No Loading: 20.78W/70.9BTU/hr; Full Loading: 1,522W/5,193.3BTU/hr |
| LED Indicators | • System: DC 1 (Green) DC 2 (Green) Alarm (Red) Ring (Green) Ring Owner (Green) DIDO (Red) • 10/100/1000T RJ45 PoE++ Interfaces (Port 1 to Port 24): bt PoE++ (Green) af/at PoE (Amber) 1000 LNK/ACT (Green) 100 LNK/ACT (Amber) • 1G/2.5G/10Gbps Fiber Interfaces (Port 25 to Port 28): 1G/2.5Gbps LNK/ACT (Green) 10Gbps LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | • Store-and-Forward |
| Switch Fabric | • 128Gbps/non-blocking |
| Throughput (packet per second) | • 95.2Mpps@ 64 bytes packet |
| Address Table | • 16K entries, automatic source address learning and aging |
| Shared Data Buffer | • 32M bits |
| Flow Control | • IEEE 802.3x pause frame for full duplex • Back pressure for half duplex |
| Jumbo Frame | • 10K bytes |
| Power Over Ethernet | |
| PoE Standard | • IEEE 802.3bt PoE++ Type-4 |
| PoE Power Supply Type | • End-span • Mid-span • BT |
| PoE Power Output | • Per port 48V ~ 54VDC 802.3bt Type-4 mode: maximum 95 watts 802.3bt Type-3 mode: maximum 60 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts Force mode: maximum 95 watts |
| Power Pin Assignment | • 802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • 802.3at PoE: End-span: 1/2(-), 3/6(+) • 802.3at PoE: Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | • Single power input: 720W maximum (depending on power input) • Dual power input: 1,440W maximum (depending on power input) Note: The DC voltage of the dual power input must match, such as dual 54V. |
| Number of 90W 802.3bt Type-4 PDs | • 16 |
| Number of 60W 802.3bt Type-3 PDs | • 24 |
| Number of 30W 802.3at Type-2 PDs | • 24 |
| PoE Management Functions | |
| Enhanced PoE Mode | • Standard/Legacy/Force |
| PoE Management | • PD Alive Check • Scheduled Power Recycling • PoE Schedule • PoE Usage Monitoring • PoE Extension |
| Active PoE Device Live Detection | • Yes |
| PoE Power Recycling | • Yes, daily or predefined schedule |
| PoE Schedule | • 4 schedule profiles |
| PoE Extend Mode | • Yes, max. up to 160 meters |
| Layer 3 Function | |
| IP Interfaces | • Max. 128 VLAN interfaces |
| Routing Table | • Max. 128 static routing entries • Max. 4K routing table entries |
| Routing Protocols | • IPv4 RIPv1/v2 dynamic routing • IPv4 OSPFv2 dynamic routing • IPv6 OSPFv3 dynamic routing • IPv4 hardware static routing • IPv6 hardware static routing |
| Layer 2 Function | |
| Port Configuration | • Port disable/enable • Auto-negotiation 10/100/1000Mbps full and half duplex mode selection • Flow control disable/enable • Port link capability control |
| Port Status | • Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | • TX / RX / Both • Many-to-1 monitor • RMirror – Remote Switched Port Analyzer (Cisco RSPAN) • Supports up to 5 sessions |
| VLAN | • IEEE 802.1Q tag-based VLAN • IEEE 802.1ad Q-in-Q tunneling • Private VLAN Edge (PVE) • MAC-based VLAN • Protocol-based VLAN • Voice VLAN • MVR (Multicast VLAN Registration) • GVRP (GARP VLAN Registration Protocol) • Up to 4K VLAN groups, out of 4096 VLAN IDs |
| Link Aggregation | • IEEE 802.3ad LACP/static trunk • Supports 14 trunk groups with 16 ports per trunk group |
| Spanning Tree Protocol | • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree Protocol • IEEE 802.1s Multiple Spanning Tree Protocol • Supports 7 MSTP instances • BPDU Guard, BPDU filtering and BPDU transparent • Root Guard |
| IGMP Snooping | • IPv4 IGMP (v1/v2/v3) snooping • IPv4 IGMP querier mode support • Up to 2K multicast groups |
| MLD Snooping | • IPv6 MLD (v1/v2) snooping • IPv6 MLD querier mode support • Up to 512 multicast groups |
| Bandwidth Control | • Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 100Kbps~13000Mbps |
| Ring | • Supports ERPS, and complies with ITU-T G.8032 • Recovery time < 10ms @ 3 nodes • Recovery time < 50ms @ 16 nodes • Supports Major ring and sub-ring |
| Synchronization | • IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock |
| QoS | • Traffic classification based, strict priority and WRR • 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
| Security Functions | |
| Access Control List | • IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority • Up to 512 entries |
| Security | • Port security • IP source guard, up to 512 entries • Dynamic ARP inspection, up to 1K entries • Command line authority control based on user level • Static MAC address, up to 64 entries |
| AAA | • RADIUS client • TACACS+ client |
| Network Access Control | • IEEE 802.1x port-based network access control • MAC-based authentication • Local/RADIUS authentication |
| Management | |
| Basic Management Interfaces | • Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | • SSHv2, TLSv1.2, SNMP v3 |
| System Management | • Firmware upgrade by HTTP protocol through Ethernet network • Configuration upload/download through HTTP • Remote Syslog • System log • LLDP protocol • NTP • PLANET Smart Discovery Utility • PLANET CloudViewer app |
| SNMP MIBs | • RFC 1213 MIB-II • RFC 1493 Bridge MIB • RFC 1643 Ethernet MIB • RFC 2863 Interface MIB • RFC 2665 Ether-Like MIB • RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) • RFC 2737 Entity MIB • RFC 2618 RADIUS Client MIB • RFC 2863 IF-MIB • RFC 2933 IGMP-STD-MIB • RFC 3411 SNMP-Frameworks-MIB • RFC 4292 IP Forward MIB • IEEE 802.1X PAE • RFC 4293 IP MIB • RFC 4836 MAU-MIB • IEEE 802.1X PAE • LLDP • PowerEthernet MIB |
| Environment | |
| Operating Temperature | • -40 ~ 75 degrees C |
| Storage Temperature | • -40 ~ 85 degrees C |
| Humidity | • 5 ~ 95% (non-condensing) |
