Switch Planet GSW-2620VHP: 24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch with LCD PoE Monitor ● 6-port GbE RJ45 ● 1-port GigBASE-X mini-GBIC SFP ● Up to 24 ports of IEEE 802.3af/802.3at ● PoE budget: 300-watt ● Standard, VLAN and Extend operation mode selection.

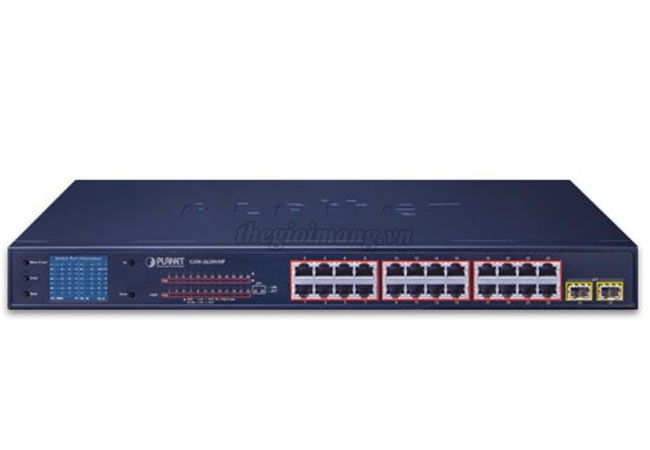

Thiết bị chuyển mạch Planet GSW-2620VHP
| Model | GSW-2620VHP |
|---|---|
| Hardware Specifications | |
| 10/100/1000BASE-T MDI/MDIX Ports | 24 |
| 802.3af/802.3at PoE Injector Port | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/ non-blocking |
| Switch Throughput@64 bytes | 38.7Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Maximum Frame Size | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| Màn hình LCD (W x D) | 40,6mm x 30,5mm, 2 inch |
| Nút bấm | Menu, Enter, Back, Up và Down |
| Kích thước (W x D x H) | 440 x 233 x 44 mm (1U) |
| Vỏ bọc | Kim loại |
| Weight | 3.5kg |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 330 watts/1132 BTU |
| Thermal Fan | 3 |
| ESD Protection | - Contact discharge of ±6KV DC - Air discharge of ±8KV DC |
| Surge Protection | ±6KV |
| Power over Ethernet | |
| Chuẩn PoE | - IEEE 802.3af Power over Ethernet/PSE - IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | - Mỗi cổng 53V-54V DC, 300mA. tối đa 15,4 watt (IEEE 802.3af) - Mỗi cổng 53V-54V DC, 600mA. tối đa 30 watt (IEEE 802.3at) |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| Total PoE Power Budget | 300 watts |
| Môi trường | |
| Hoạt động | Nhiệt độ: -10 ~ 60 độ C Độ ẩm tương đối: 10 ~ 90% (không ngưng tụ) Nhiệt độ: <40 độ C; Độ ẩm: <90% Nhiệt độ:> 40 độ C; Độ ẩm: <50% |
| Lưu trữ | Nhiệt độ: -10 ~ 70 độ C Độ ẩm tương đối: 5 ~ 90% (không ngưng tụ) |
| Tuân thủ tiêu chuẩn quy định | FCC Phần 15 Lớp A, CE |
Planet GSW-2620VHP
24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch with LCD PoE Monitor
Physical Port
• 24 10/100/1000BASE-T Gigabit RJ45 copper ports
• 2 1000BASE-X mini-GBIC SFP interfaces
Power over Ethernet
• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 32 watts for each PoE port
• Each port supports 54V DC power to PoE powered device
• 300-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m in standard mode and 250m in extend mode
Smart LCD
• The LCD switch features “Standard”, “VLAN” and “Extend” modes; the “Extend” mode features 20-watt PoE transmission distance of 250m at speed of 10Mbps and VLAN isolation
• The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
• Power low-voltage, power over-voltage and PSE over-temperature protection
• Screen saver, fan control, factory default and save configuration
• PoE management
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– PD alive check
Switching
• Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• 9216bytes packet size
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• IEEE 802.1Q VLAN transparency
• Automatic address learning and address aging
Hardware
• 19-inch desktop size, 1U height, rack mountable
• 2-inch color LCD with smart management functions
• LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
• 3 silent fans to provide stable and efficient power performance
• Supports Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
• Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
• Supports ±6KV surge immunity
