Switch Planet GSW-2401: 24-Port 24-Port 10/100/1000BASE-T Gigabit Ethernet Switch ● 24 10/100/1000BASE-T Gigabit Ethernet ports ● Switch Fabric: 48Gbps, Throughput: 35.7Mpps ● DIP switch for standard/flow control off/VLAN/Extend mode.

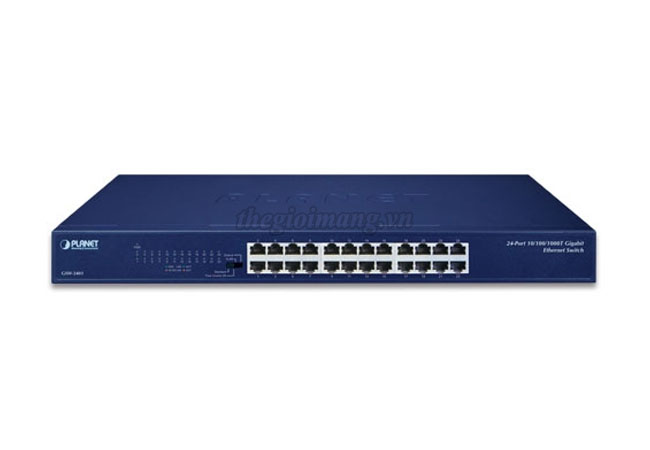

Thiết bị chuyển mạchSwitch Planet GSW-2401
| Model | GSW-2401 |
|---|---|
| Hardware Specifications | |
| Hardware Version | 9 |
| 10/100/1000Base-T MDI/MDIX Ports | 24 |
| DIP Switch | Operation mode selection - Standard - Flow control off - VLAN - Extend |
| Weight | 1.9kg |
| Power Consumption / Dissipation | 14.6 watts/49 BTU |
| Power Requirements | 100~240V AC, 0.17A, 50-60Hz |
| Dimensions (W x D x H) | 440 x 208 x 44mm, 1U height |
| Switching | |
| Switch Proccessing Scheme | Store-and-Forward |
| Throughput (packet per second) | 35.7Mpps |
| Switch Fabric | 48Gbps |
| Address Table | 8K entries |
| Jumbo Packet Size | 9K |
| Flow Control | Back pressure for half duplex IEEE 802.3x Pause frame for full duplex |
| Environment | |
| Operating | Operating Temperature: 0~50 degrees C Relative Humidity: 5% to 95% (non-condensing) |
| Storage | Temperature: -10~70 degrees C Relative Humidity: 5% to 95% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Data sheet Planet GSW-2401 | ||
|---|---|---|
 |
 |
|
| DIP Switch Mode | Function | |
| Standard (default) | This mode makes the Gigabit Ethernet Switch operate as a general switch and all ports operate at 10/100/1000Mbps auto-negotiation. | |
| Flow Control Off | This mode disables the Gigabit Ethernet Switch flow control function. | |
| VLAN | This mode makes the GSW-2401 operate as a VLAN isolation switch and 1. Port 1 to port 22 will isolate respectively. 2. Port 1 to port 22 can only communicate with port 15 and port 16 (uplink port). |
|
| Extend | This mode makes the GSW-2401 operate as a distance extension switch and port 1 to port 8 can only transmit distance of 200m at speed of 10Mbps. | |
