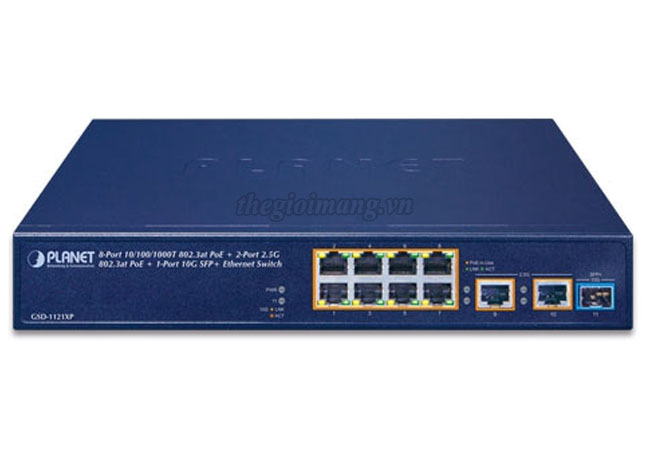

Planet GSD-1121XP: 8-Port 10/100/1000T 802.3at PoE + 2-Port 2.5G 802.3at PoE + 1-Port 10G SFP+ Ethernet Switch (120 Watts)
Thiết bị chuyển mạch Planet GSD-1121XP
| Model | GSD-1121XP |
|---|---|
| Hardware Specifications | |
| Copper Ports | 8 x 10/100/1000BASE-T RJ45 - With 802.3at/af PoE+ injector function - Auto-MDI/MDI-X, auto-negotiation 2 x 100/1000/2500BASE-T RJ45 - With 802.3at/af PoE+ injector function - Auto-MDI/MDI-X, auto-negotiation |
| SFP+ Port | 1 x 10GBASE-X SFP+ interface |
| Dimensions (W x D x H) | 280 x 213 x 45mm |
| Weight | 1711g |
| Power Requirements | 100 ~ 240V AC, 50 / 60Hz |
| Installation | Desktop or rack-mount installation |
| Power Consumption / Dissipation | 124 watts @ AC 110V 125 watts @ AC 240V |
| ESD Protection | 6KV contact / 8KV air |
| EFT Protection | 1KV |
| Switching Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 46Gbps |
| Throughput (packet per second) | 34.2Mpps @64 bytes |
| Address Table | 16K entries |
| Jumbo Frame | 9600 Bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at PoE Plus, PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 52V DC, max. 30 watts |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Environment & Standards | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class B, CE |
