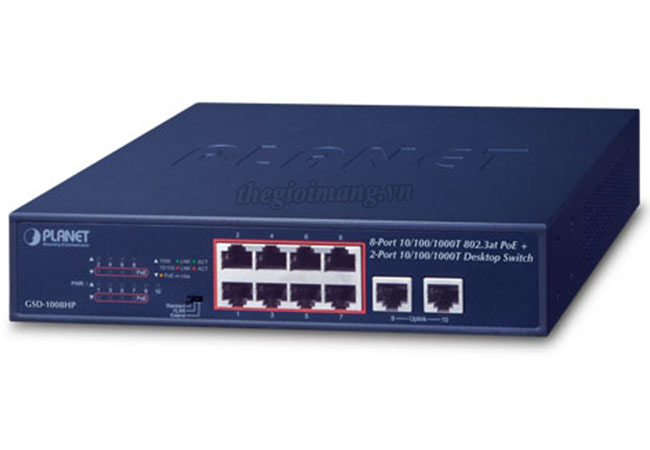

Planet GSD-1008HP: 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts) ● 10-port 10/100/1000BASE-T RJ45 copper ● 8-port IEEE 802.3af/at PoE ● PoE Power Budget: 120 watts (max).

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị chuyển mạch Planet GSD-1008HP

Model	GSD-1008HP
Hardware Specifications
Copper Port	10 10/100/1000BASE-T MDI/MDIX Ports
PoE Injector Port	8-port with 802.3af/at PoE injector function with Port-1 to Port-8
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps
Switch Throughput@64 bytes	13.4Mpps@64 bytes
MAC Address Table	2K entries, automatic source address learning and aging
Maximum Frame Size	9K bytes
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
DIP Switch	Selectable operation mode Standard VLAN Extend
Dimensions (W x D x H)	220 x 150 x 43 mm (1U height)
Enclosure	Metal
Weight	1205 g
Power Requirements	AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/ Dissipation	System On: Max. 4.1 watts/13.9 BTU PoE Full Loading: Max. 124 watts/423.1 BTU
ESD Protection	Contact discharge of 6KV DC Air discharge of 8KV DC
Thermal Fan	1
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 600mA. max. 32 watts
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Budget	120 watts
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Data sheet Planet GSD-1008HP v2

Những tính năng chính Switch Planet GSD-1008HP

Physical Port

10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
8-port IEEE 802.3af/at PoE Injector (Port-1 to Port-8)

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 32 watts for each PoE port
Each port supports 54V DC power to PoE powered device
120-watt PoE budget
Auto detects powered device (PD)
Supports PD alive check
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode with 250m in extended mode

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 2K absolute MAC addresses
9K jumbo frame supports all speeds (10/100/1000Mbps)
Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 20-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

9-inch desktop size, 1U height, rack mountable
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
1 silent fan to provide stable and efficient power performance
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
