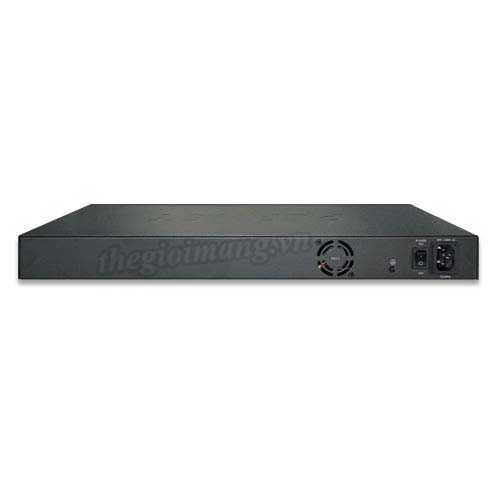

Thiết bị mạng chuyển mạch Planet FGSW-2624HPS4
| Product | FGSW-2624HPS4 |
|---|---|
| Hardware Specifications | |
| Copper Ports | 24 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports |
| PoE Injector Port | 24 802.3af/802.3at PoE+ injector ports |
| Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26 |
| Console | 1 RS232-to-RJ45 serial port (115200, N, 8, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Thermal Fan | 2 |
| Power Requirements | 100~240V AC, 50/60Hz, 6.5A (max.) |
| Power Consumption/Dissipation | Max.413 watts/1409BTU |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | 2787g |
| Enclosure | Metal |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps / non-blocking |
| Switch Throughput@64bytes | 6.55Mpps @64bytes |
| MAC Address Table | 16K entries |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 16K bytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | Per Port 53 DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 53 DC, 600mA. Max. 30 watts (IEEE 802.3at) |
| PoE Power Output | Contact Discharge 4KV DC Air Discharge 8KV DC |
| PoE Power Budget | 370 watts |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor |
| VLAN | Port-based VLAN, up to 26 VLAN groups IEEE 802.1Q tagged VLAN - Up to 256 VLAN groups, out of 4094 VLAN IDs Protocol VLAN Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) GVRP Voice VLAN |
| Link Aggregation | IEEE 802.3ad LACP supports one 2-port trunk group; static trunk supports one 2-port trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU filtering, BPDU Guard |
| IGMP Snooping | IPv4 IGMP snooping v1/ v2 and v3 |
| MLD Snooping | IPv6 MLD snooping v1, v2 |
| QoS | Ingress/Egress Rate Limit per port bandwidth control Storm Control support Broadcast/ Multicast /DLF (Destination Lookup Failure)/ARP/ICMP Traffic classification - IEEE 802.1p Qos/CoS - TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
| MAC Security | Port-MAC-IP Address Binding Port-MAC-IP Port Setting Port-MAC-IP Entry Setting MAC Address Binding Static MAC |
| Management Functions | |
| System Configuration | Console and Telnet command line interface Web browser SNMP v1, v2c |
| Secure Management Interfaces | SNMP v3, SSH, SSL |
| System Management IPv4 and IPv6 dual stack management | BOOTP and DHCP for IP address assignment System maintenance - Firmware upgrade via HTTP - Configuration upload/download through web interface - Hardware-based reset button for system reset to factory default SNTP Network Time Protocol Link Layer Discovery Protocol (LLDP) PLANET smart discovery utility |
| Standards Conformance | FCC Part 15 Class A, CE |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
