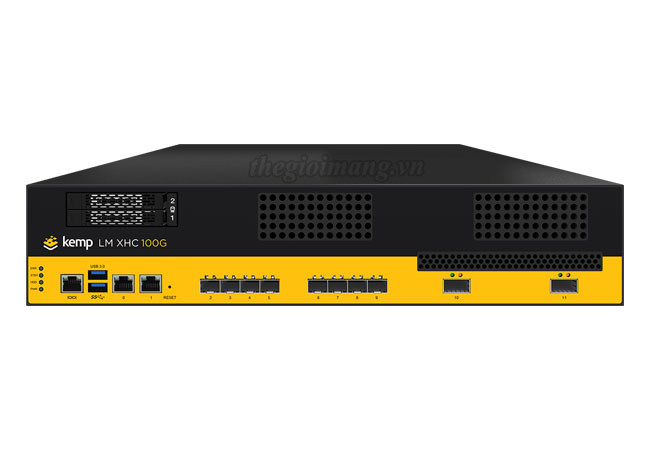

Kemp LM-XHC-100G

The LoadMaster XHC 100G - The integrated hardware acceleration delivers up to 40,000 SSL transactions per second and an overall system throughput of 90 Gbit/sec. With 8x 10Gbit SFP+ ports and 2x 100 Gbit QSFP28 ports, this load balancer can easily integrate with the most complex and demanding network environments.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị cân bằng tải Kemp LM-XHC-100G

Model LM-XHC-100G
Support Subscription Tiers  All
Performance
Application throughput (Layer 4)  91 Gbps
Application throughput (Layer 7)  90 Gbps
Bulk Encryption  25 Gbps
SSL TPS (2K Keys)  40,000
Concurrent Layer 4 Connections  75,800,000
Concurrent Layer 7 Connections  525,000
Layer 7 HTTP requests/sec  1,250,000
Layer 4 requests/sec  2,600,000
Layer 4 connections/sec  825,000
Hardware Platform
CPU  2x Intel Xeon 6136 Gold @3.0GHz, 12C/24T
Memory (RAM Size)  64GB
Storage  2 x 1TB HDD (RAID 1)
Hardware SSL Acceleration  Yes
Gigabit Ethernet Ports  2
10 Gigabit Ports (SFP+)  8
25 Gigabit Ports (SFP28)  0
40 Gigabit Ports (QSFP+)  0
100 Gigabit Ports (QSFP28)  2
VGA Ports  1
Console Ports  1 RJ45
Rack Size  2U
Dimensions (with Bezel)  437 x 570 x 88mm
(17.2 x 22.5 x 3.5 in)
Weight  35.2lbs / 16kg
Storage Temperature  -4 to 167 °F (-20 to 75 °C)
Operating Temperature  32 to 104 °F (0 to 40 °C)
Storage Humidity  10% to 90% non-condensing
Operating Relative Humidity  10% to 90% non-condensing
Max Altitude in Operational Mode  16,404 feet (5,000 meters)
Max Altitude in Non-Operational Mode  30,000 feet (9,144 meters)
Input Voltage and Frequency  100-240VAC, 50-60Hz
Hot-Swap, Redundant Power Supply  Yes
Max power supply (W)  2 x 700
Average Power Consumption (W)  479,6
Total Amp Drawn (A)  5.8 Max
Heat Output (BTU)  1635.5 Max
Acoustic Noise (dB)  71,4
