The LoadMaster X40M enables secure and scalable delivery of enterprise applications and workloads with support for over 300 million L4 concurrent connections and 3 million L7 concurrent connections. It offers the best quality of experience for connected users with throughput of 40Gbps and advanced application delivery features that maintain performance by intelligently adapting to changing network environments.

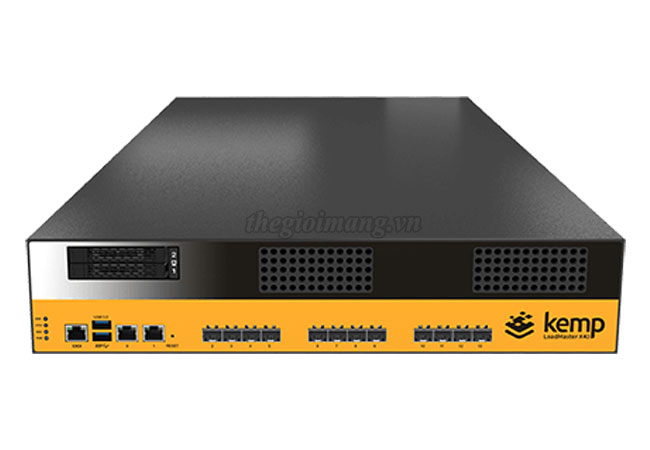

Thiết bị cân bằng tải Kemp LM-X40M
| Model | LM-X40M |
| Support Subscription Tiers | All |
| Performance | |
| Application throughput (Layer 4) | 42.2 Gbps |
| Application throughput (Layer 7) | 40 Gbps |
| Bulk Encryption | 20 Gbps |
| SSL TPS (2K Keys) | 35,000 |
| Concurrent Layer 4 Connections | 300,000,000 |
| Concurrent Layer 7 Connections | 3,000,000 |
| Layer 7 HTTP requests/sec | 1,250,000 |
| Layer 4 requests/sec | 2,600,000 |
| Layer 4 connections/sec | 825,000 |
| Hardware Platform | |
| CPU | 2x Intel Xeon 6136 Gold @3.0GHz, 12C/24T |
| Memory (RAM Size) | 256GB |
| Storage | 2 x 1TB HDD (RAID 1) |
| Hardware SSL Acceleration | Yes |
| Gigabit Ethernet Ports | 2 |
| 10 Gigabit Ports (SFP+) | 12 |
| VGA Ports | 1 |
| Console Ports | 1 RJ45 |
| Rack Size | 2U |
| Dimensions | 437 x 570 x 88mm (17.2 x 22.5 x 3.5 in) |
| Weight | 35.2lbs / 16kg |
| Storage Temperature | -4 to 167 °F (-20 to 75 °C) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Humidity | 10% to 90% non-condensing |
| Operating Relative Humidity | 10% to 90% non-condensing |
| Max Altitude in Operational Mode | 16,404 feet (5,000 meters) |
| Max Altitude in Non-Operational Mode | 30,000 feet (9,144 meters) |
| Input Voltage and Frequency Ranges | 100-240VAC, 50-60Hz |
| Hot-Swap, Redundant Power Supply | Yes |
| Max power supply (W) | 2 x 700 |
| Average Power Consumption (W) | 479,6 |
| Total Amp Drawn (A) | 5.8 Max |
| Heat Output (BTU) | 1635.5 Max |
| Acoustic Noise (dB) | 71,4 |
