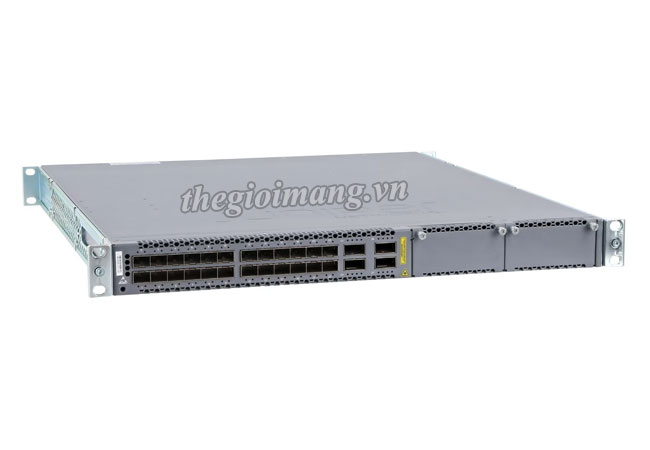

Juniper EX4600-40F-AFO

Thiết bị chuyển mạch Switch Juniper EX4600-40F-AFO :

  • 24 x SFP+/SFP ports
  • 4 x QSFP+ ports
  • 2 expansion slots
  • Redundant fans
  • 2 AC power supplies
  • Front to back airflow
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Juniper EX4600-40F-AFO

Model EX4600-40F-AFO
Hardware • Switching capacity: 720 Gbps (unidirectional)/1.44 Tbps (bidirectional)
• Layer 2/Layer 3 throughput (maximum with 64 byte packets): 1,071 Mpps
• Weight: 9.84 kg with PSUs and fans installed
• Dimensions (HxWxD): 4.37 x 44.09 x 52.02 cm
• Switching mode: Cut-through and store-and-forward
• Front-to-back airflow
• Management and rear console port connections
• Predicted mean time between failures (MTBF): 150,000 hours
• Predicted FIT rate: 4,987
Interface Options • 1GbE SFP: 24(40) (with 10GbE expansion modules)
• 10GbE SFP+: 24(40/72) (with 10GbE expansion modules/with fixed 40GbE ports using breakout cables)
• 40GbE QSFP+: 4(12) (with expansion modules)
 ₀ Each fixed QSFP+ port can be configured as a 4x10GbE interface
 ₀ Each QSFP+ port can be configured as a 40 Gbps port
 ₀ USB port
 ₀ Console port
 ₀ 2 management ports: 1 RJ-45 and 1 SFP
 ₀ Supported transceiver and direct attach cable
 ₀ SFP+ 10GbE optical modules
 ₀ SFP+ DAC cables: 1/3/5 m direct-attached copper and 1/3/5/7/10 m active direct-attached copper
 ₀ SFP GbE optical and copper module
 ₀ QSFP+ to SFP+ 10GbE direct attach break-out copper (1/3 m direct-attached copper cable)
Rack Installation Kit • Versatile four post mounting options for 19-in server rack or datacom rack
Airflow • Front-to-back and back-to-front cooling
• Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules • Dual redundant (1+1) and hot-pluggable power supplies
• 110-240 V single phase AC power
• Redundant (N+1) and hot-pluggable fan modules for front-to-back airflow
Performance Scale (Unidimensional) • MAC addresses per system: 288,000
• VLAN IDs: 4,091
• Number of ports per LAG: 32
• FCoE scale: Number of FCoE VLANs/FC virtual fabrics: 4,095
• Firewall filters: 4,000
• IPv4 unicast routes: 128,000 prefixes; 208,000 host routes
• IPv4 multicast routes: 104,000
• IPv6 multicast routes: 52,000
• IPv6 unicast routes: 64,000 prefixes
• Address Resolution Protocol (ARP) entries: 48,000
• Jumbo frame: 9,216 bytes
Environmental Ranges • Operating temperature: 0° to 40° C
• Storage temperature: -40° to 70° C
• Operating altitude: up to 2,000
• Relative humidity operating: 5% to 90% (noncondensing)
• Relative humidity nonoperating: 0% to 95% (noncondensing)

Tùy chọn Module cho Switch Juniper EX4600-40F-AFO

QFX-EM-4Q 4-port QSFP+ expansion module for EX4600
EX4600-EM-8F 8-port SPF+/SFP expansion module for EX4600

EX4600-40F-AFO : 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 AC power supplies, 2 power cords, 4-post rack mount kit, and front to back airflow

Data sheet Juniper EX4600 Ethernet Switch
