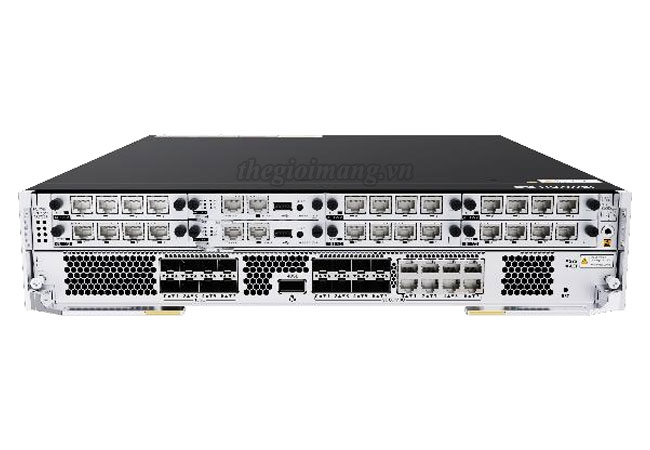

Huawei NetEngine AR8700-8 Enterprise Router :
Thiết bị định tuyến Router Huawei NetEngine AR8700-8
| Model | NetEngine AR8700-8 |
| System parameters | |
| Processor | ARM64 (16-core) |
| SD-WAN service performance (IMIX) | 20Gbps |
| Fixed WAN ports | 8 x GE combo, 8 x 10GE SFP+, 1 x 40GE QSFP+, (All WAN ports can be configured as LAN) |
| SIC slots | 8 |
| WSIC slots (default/maximum) | 0/4 |
| Auxiliary or console port | 1 x RJ45 console port |
| USB port | 1 x USB |
| Memory (SPU) | 16GB |
| Memory (MPU) | 8 GB |
| Flash (MPU) | 4 GB |
| Hot swapping | Only MPU Supported |
| Software Features and Protocols | |
| Basic function | DHCP server/client/relay, NAT, and sub-interface management |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC management, STP/RSTP/MSTP |
| IPv4 unicast routing | Routing policies, static routes, RIP, OSPF, IS-IS, BGP, IP FRR |
| IPv6 unicast routing | Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Basic IPv6 function | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
| Tunneling | GRE tunnel, NAT STUN |
| VPN | GRE VPN,SD-WAN EVPN |
| QoS | Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC) |
| Security | ACL (v4/v6), domain-based stateful firewall, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, attack source tracing |
| Management and maintenance | Upgrade management, device management, GTL, SNMP (v1/v2c/v3), RMON, NTP, Auto-Config, USB-based/DHCP deployment, NETCONF/YANG, CLI, TCP FPM, NQA |
| Dimensions and Weight | |
| Dimensions without mounting brackets (H x W x D) | 88.1 mm x 442 mm x 470.0 mm |
| Dimensions with mounting brackets (H x W x D) | 205mm x 760 mm x 585mm |
| Rack | IEC |
| Occupied rack space | 2U |
| Power specifications, power consumption, and heat dissipation | |
| High-Voltage DC input | 240 V DC |
| AC input | 110V AC/220 V AC, 50 Hz/60 Hz |
| DC input | -48 V DC/-60 V DC |
| Typical power consumption(W) | 221W |
| Maximum power consumption(W) | 288W |
| Redundant power supply | Support double AC power supply (1+1 backup) Support double DC power supply (1+1 backup) |
| Fan modules | Built-in pluggable fan modules |
| Airflow | Left or front to rear |
| Maximum noise | 72 dB |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | < 5000 m |
| Storage temperature | –40°C to + 70°C |
| Storage altitude | < 5000 m |
NetEngine AR8700-8 : 1*40GE QSFP+, 8*10GE SFP+, 8*GE Combo, 1*USB, 8*SIC
Data sheet Huawei NetEngine AR8700 Series Enterprise Routers
