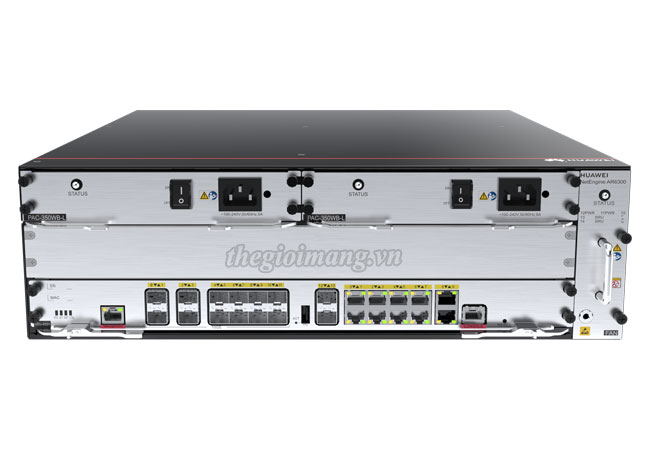

Thiết bị định tuyến Router Huawei NetEngine AR6300
Model | NetEngine AR6300 |
System Parameters | |
Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX) | SRU-400H: 10 Gbps SRU-600H: 12 Gbps |
SD-WAN Typical Scenarios Throughput | SRU-400H: 1Gbps(1 tunnel), 3Gbps(Tunnels > 16) SRU-600H: 1Gbps(1 tunnel), 4Gbps(Tunnels > 16) |
SD-WAN Basic Scenarios Throughput | SRU-400H: 1Gbps(1 tunnel), 4Gbps(Tunnels > 16) SRU-600H: 1Gbps(1 tunnel), 6Gbps(Tunnels > 16) |
Ipsec performance (IMIX) | SRU-400H: 6 Gbps SRU-600H: 7.5 Gbps |
Ipsec performance (1400 bytes) | SRU-400H: 10 Gbps SRU-600H: 10 Gbps |
5G uplink | Support 5G SIC |
SIC slots | 4 |
WSIC slots | 2 (default)/8 (maximum) |
XSIC slots | 4 (default)/6 (maximum) |
USB port | 1*USB2.0 |
Auxiliary or console port | 1 x RJ45 console port |
Memory | SRU-400H: 8 GB SRU-600H: 16 GB |
Flash memory | SRU-400H: 2 GB SRU-600H: 4 GB |
Hot swapping | Supported |
Dimensions and Weight | |
Router dimensions, With no mounting bracket installed (H x W x D) | 130.5 mm x 442 mm x 470 mm |
Router dimensions, With mounting bracket installed (H x W x D) | 130.5 mm x 482.6 mm x 470 mm |
Weight | 11.00 kg |
Rack | IEC |
Occupied rack space | 3U |
Power Specifications, Power Consumption, and Heat Dissipation | |
Rated input voltage range (AC) | 100 V to 240 V |
Rated input frequency (AC) | 50 Hz/60 Hz |
Maximum input voltage range (AC) | 90 V to 264 V |
Maximum input current (AC) | 5A |
Maximum output power (AC) | 350 W |
Rated input voltage range (DC) | –48 V DC to –60 V DC |
Maximum input voltage range (DC) | –38.4 V DC to –72 V DC |
Maximum input current (DC) | 9.6 A |
Maximum output power (DC) | 350 W |
Typical power consumption | 130 W |
Maximum power consumption | 275 W |
Power supply redundancy | Hot supplies -swappable dual power |
Fan module | Independent pluggable fan modules |
Airflow | Left to right |
Noise level | 66.1 dB |
Environment Parameters | |
Operating temperature | 0 ºC to 45 ºC |
Operating humidity | 5% to 95% (non-condensing) |
Operating altitude | < 5000 m (16404.2 ft.) |
Storage temperature | –40 ºC to +70 ºC |
Storage altitude | < 5000 m (16404.2 ft.) |
NetEngine AR6300 AR6300 integrated chassis, 2*SRU slot, 4*SIC slot, 2*WSIC slot, 4*XSIC slot, 2*power slot
Data sheet Huawei NetEngine AR6000 Series Enterprise Routers
