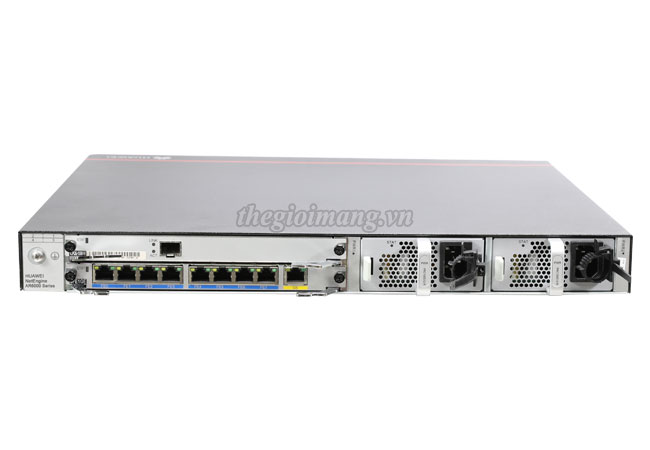

Thiết bị định tuyến Router Huawei NetEngine AR6140-16G4XG
| Item | NetEngine AR6140-16G4XG |
| System Parameters | |
| Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX) | 6 Gbps |
| SD-WAN Typical Scenarios Throughput | 1 Gbps |
| SD-WAN Basic Scenarios Throughput | 1.4 Gbps |
| Ipsec performance (IMIX) | 5 Gbps |
| Ipsec performance (1400 bytes) | 8 Gbps |
| Fixed WAN ports | 4 x GE, 4 x 10GE SFP+ (compatible with GE optical ports) |
| Fixed LAN ports | 12 x GE (can be configured as WAN) |
| 5G uplink | Support 5G SIC |
| SIC slots | 4 |
| WSIC slots | 0 (default)/2 (maximum) |
| XSIC slots | - |
| USB port | 1*USB2.0 |
| Auxiliary or console port | 1 x RJ45 console port |
| Memory | 4 GB |
| Flash memory | 1 GB |
| Hot swapping | Supported |
| Dimensions and Weight | |
| Router dimensions, With no mounting bracket installed (H x W x D) | 44.5 mm x 442 mm x 420 mm |
| Router dimensions, With mounting bracket installed (H x W x D) | 44.5 mm x 482.6 mm x 572.5 mm |
| Weight | 7.9 kg |
| Rack | IEC |
| Occupied rack space | 1U |
| Power Specifications, Power Consumption, and Heat Dissipation | |
| Rated input voltage range (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V |
| Maximum input current (AC) | 3A |
| Maximum output power (AC) | 150W |
| Rated input voltage range (DC) | - |
| Maximum input voltage range (DC) | - |
| Maximum input current (DC) | - |
| Maximum output power (DC) | - |
| Typical power consumption | 65W |
| Maximum power consumption | 97W |
| Power supply redundancy | Supported |
| Fan module | Built-in unpluggable fan modules |
| Airflow | Left to right |
| Noise level | 55.8 dB |
| Environment Parameters | |
| Operating temperature | 0 ºC to 45 ºC |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | < 5000 m (16404.2 ft.) |
| Storage temperature | –40 ºC to +70 ºC |
| Storage altitude | < 5000 m (16404.2 ft.) |
NetEngine AR6140-16G4XG : AR6140-16G4XG, 4*GE WAN, 4*SFP+, 12*GE LAN, 1*USB2.0, 4*SIC
Data sheet Huawei NetEngine AR6000 Series Enterprise Routers
