Huawei AirEngine 5762-16W Wi-Fi 6 (802.11ax) Wall Plate Access Point :

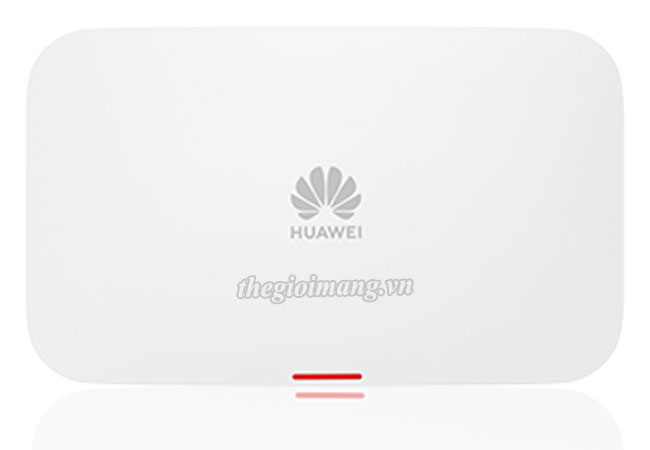

Thiết bị Wireless Huawei AirEngine 5762-16W Wi-Fi 6 Wall Plate Access Point
| Model | AirEngine 5762-16W |
| Technical specifications | |
| Dimensions (H x W x D) | • 130 mm x 220 mm x 32 mm |
| Weight | • 1.09 kg |
| Interface type | • 1 x 10M/100M/1GE (RJ45) electrical port • 1 x USB 2.0 port NOTE : The GE electrical port supports PoE input. |
| Bluetooth | • BLE 5.0 |
| LED indicator | • Indicates the power-on, startup, running, alarm, and fault states of the system. |
| Power specifications | |
| Power input | • DC: 12 V ± 10% • PoE power supply: in compliance with 802.3at/af NOTE : In 802.3af power supply mode, some functions of the AP may be restricted, for example, the USB port is unavailable. For details, see Info-Finder. |
| Maximum power consumption | • 17.1 W (excluding USB) NOTE : The actual maximum power consumption depends on local laws and regulations. |
| Environmental specifications | |
| Operating temperature | • 0°C to 40°C |
| Storage temperature | • -40°C to +70°C |
| Operating humidity | • 5% to 95% (non-condensing) |
| Altitude | • -60 m to +5000 m |
| Atmospheric pressure | • 53 kPa to 106 kPa |
| Radio specifications | |
| Antenna type | • Built-in butterfly-pattern smart antennas |
| Antenna gain | • 2.4 GHz: 4 dBi • 5 GHz: 6 dBi NOTE : - The gains above are the single-antenna peak gains. - The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi at 2.4 GHz or 4 dBi at 5 GHz. |
| Maximum number of SSIDs for each radio | • ≤ 16 |
| Maximum number of users | • ≤ 256 NOTE : The actual number of users varies according to the environment. |
| Maximum transmit power | • 2.4 GHz: 27 dBm (combined power) • 5 GHz: 27 dBm (combined power) NOTE : The actual transmit power depends on local laws and regulations. |
| Power increment | • 1 dBm |
| Maximum number of non overlapping channels | 2.4 GHz (2.412 GHz to 2.472 GHz) • 802.11b/g − 20 MHz: 3 • 802.11n − 20 MHz: 3 − 40 MHz: 1 • 802.11ax − 20 MHz: 3 − 40 MHz: 1 5 GHz (5.18 GHz to 5.825 GHz) • 802.11a − 20 MHz: 13 • 802.11n − 20 MHz: 13 − 40 MHz: 6 • 802.11ac − 20 MHz: 13 − 40 MHz: 6 − 80 MHz: 3 − 160 MHz: 1 • 802.11ax − 20 MHz: 13 − 40 MHz: 6 − 80 MHz: 3 − 160 MHz: 1 NOTE : The table uses the number of non-overlapping channels supported by China as an example. The number of non overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance. |
