Huawei AirEngine 5761-12 indoor Wi-Fi 6 (802.11ax) Access Point :

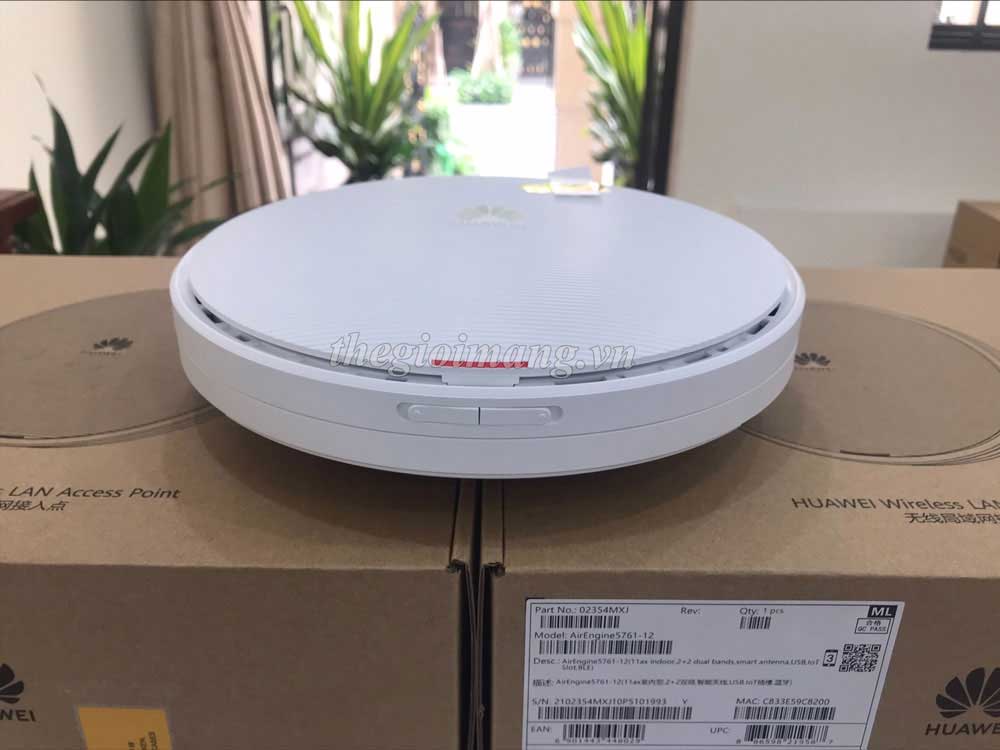

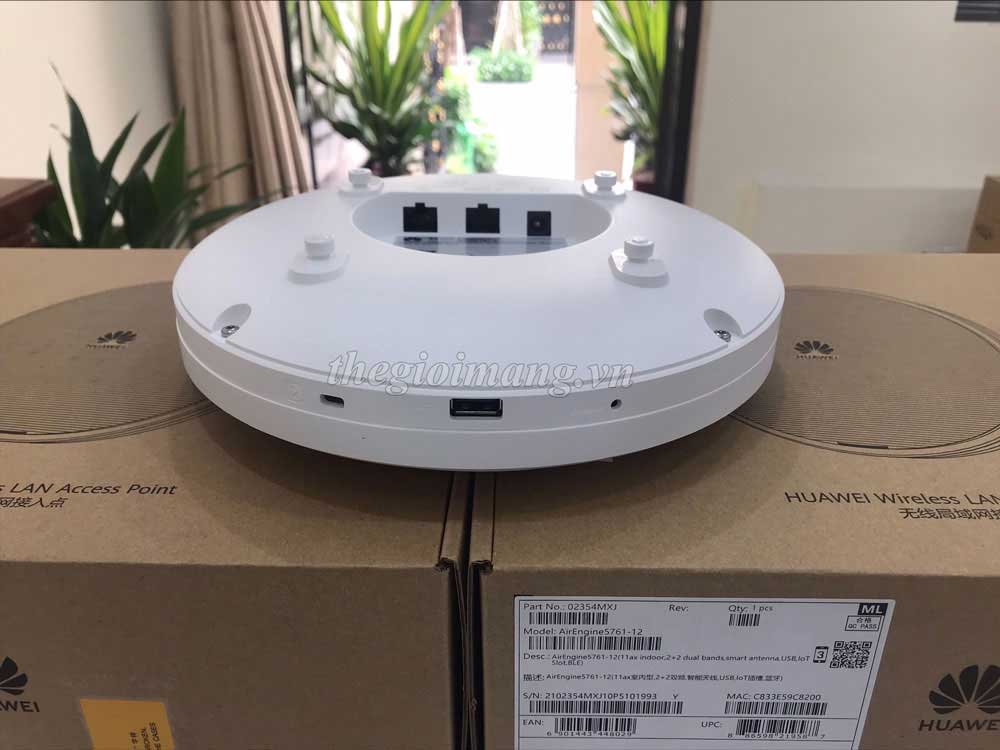

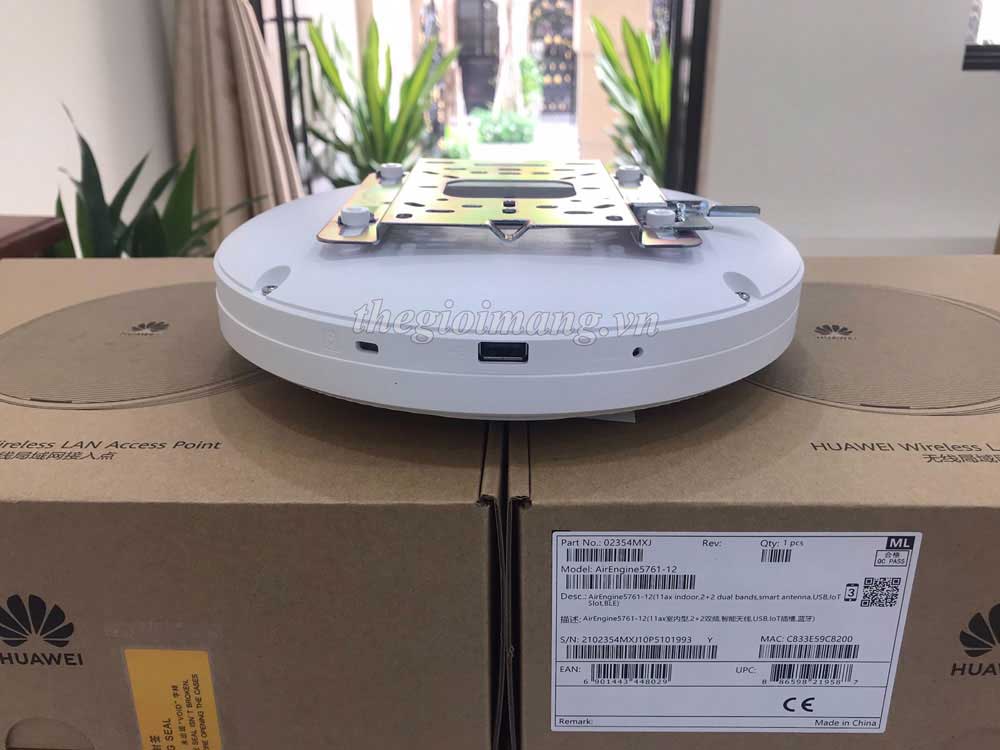

Thiết bị Wireless Huawei AirEngine 5761-12 indoor Wi-Fi 6 Access Point
| Model | AirEngine 5761-12 |
| Technical specifications | |
| Dimensions (Diameter x Height) Weight | Φ220 mm x 51 mm |
| Weight | 1.09 kg |
| Interface type | • 1 x 10M/100M/1GE (RJ45, PoE in) • 1 x 10M/100M/1GE (RJ45) • 1 x USB2.0 |
| IoT expansion | Built-in IoT slots (PCIe), supporting IoT expansion such as BLE 5.0, ZigBee, and RFID |
| Bluetooth | BLE 5.2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. |
| Power specifications | |
| Power input | • DC: 12 V ± 10% • PoE power supply: in compliance with 802.3at/af NOTE : When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is disabled. |
| Maximum power consumption | • 12.63 W (excluding USB) NOTE : The actual maximum power consumption depends on local laws and regulations. |
| Environmental specifications | |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Altitude | -60 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Radio specifications | |
| Antenna type | Built-in smart antennas |
| Antenna gain | • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi NOTE - The gains above are the single-antenna peak gains. - The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi in 2.4 GHz or 3 dBi in 5 GHz. |
| Maximum number of SSIDs for each radio | ≤ 16 |
| Maximum number of users | ≤ 1024 (512/Radio) NOTE : The actual number of users varies according to the environment. |
| Maximum transmit power | • 2.4 GHz: 23 dBm (combined power) • 5 GHz: 23 dBm (combined power) NOTE : The actual transmit power depends on local laws and regulations. |
| Power increment | 1 dBm |
| Maximum number of non overlapping channels | 2.4 GHz ( 2.412 GHz to 2.472 GHz) • 802.11b/g - 20 MHz: 3 • 802.11n - 20 MHz: 3 - 40 MHz: 1 • 802.11ax - 20 MHz: 3 - 40 MHz: 1 5 GHz (5.18 GHz to 5.825 GHz) • 802.11a - 20 MHz: 13 • 802.11n - 20 MHz: 13 - 40 MHz: 6 • 802.11ac - 20 MHz: 13 - 40 MHz: 6 - 80 MHz: 3 • 802.11ax - 20 MHz: 13 - 40 MHz: 6 - 80 MHz: 3 NOTE : The table uses the number of non-overlapping channels supported by China as an example. The number of non overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance. |
AirEngine5761-12 : AirEngine5761-12(11ax indoor,2+2 dual bands,smart antenna,USB,IoT Slot,BLE)
Data sheet Huawei AirEngine 5761-12 indoor Wi-Fi 6 (802.11ax) Access Point
