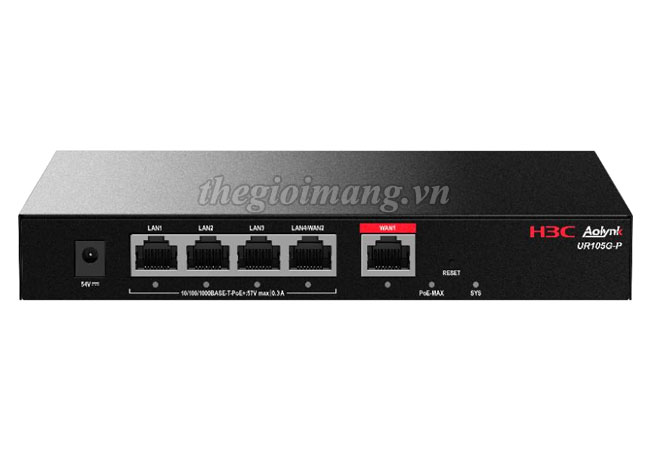

Bộ định tuyến Router PoE H3C Aolynk UR105G-P
H3C Aolynk UR105G-P là bộ định tuyến router PoE gateway hiệu suất cao, hướng đến các doanh nghiệp vừa và nhỏ (SMB). Sản phẩm được thiết kế để đáp ứng nhu cầu truy cập Internet tốc độ cao trong các môi trường như doanh nghiệp nhỏ, trường học, khách sạn, nhà hàng, bán lẻ, giải trí và biệt thự. Với bộ xử lý lõi kép hiệu suất cao và kiến trúc phần mềm tiên tiến, UR105G-P mang lại khả năng xử lý đồng thời gigabit, hỗ trợ VPN mạnh mẽ và trải nghiệm mạng tối ưu. Sản phẩm tích hợp quản lý thông minh qua nền tảng Aolynk Cloud, giúp giảm chi phí vận hành và nâng cao hiệu quả quản lý mạng.
Thông số kỹ thuật
| Model | UR105G-P |
| Hardware specifications | |
| Recommended number of clients | • 100 |
| Bandwidth | • 1Gbps |
| IPSec encryption performance | • 100Mbps |
| Number of IPSec VPN tunnels | • 100 |
| NAT sessions | • 40000 |
| NAT mapping entry | • 100 |
| Number of supported Aolynk APs | • 32 |
| Max number of supported VLAN | • 64 |
| CPU | • Dual Core 880MHz |
| RAM | • 256MB |
| Flash | • 128MB |
| WAN Ethernet port | • 1*GE |
| LAN Ethernet port | • 4*GE (PoE+, single port Max 30W, 1 LAN port can be switched to WAN port) |
| Power consumption of the whole machine | • 63W |
| PoE maximum power | • 58W |
| AC power supply | • Rated range: 100 to 240V 50/60Hz |
| Reset button | • Support |
| Overall dimensions (W x D x H, mm) | • 190 x 125 x 27 |
| Ambient temperature | • 0 to 40 ° C |
| Ambient humidity | • 5 to 95% (no condensation) |
| Certification | • CE, CB, RoHS |
| Software Specifications | |
| WAN Access | • Support static IP address, DHCP, PPPoE • Support link state detection, ICMP, DNS, NT • Support static routing and policy-based routing |
| LAN | • Support port-based VLAN configuration, MAC address learning, broadcast storm suppression, and traffic mirroring |
| QoS | • Support limiting traffic per IP • Support limiting traffic based on user groups |
| Security Features | • Defines firewall filtering policies based on source and destination IP addresses and ports |
| • Support MAC address filtering and MAC address whitelist | |
| • Support ARP scanning, ARP detection, and ARP protection | |
| • DDoS attack defense and statistics • Prevent WAN port Ping • Prevent TCP syn scanning • Prevent TCP Stealth FIN scanning • Prevent TCP Xmas Tree scanning • Prevent TCP Null scanning • Prevent UDP scanning features • Prevent Land attack function • Prevent Smurf attack function • Prevent WinNuke attacks • Prevent Ping of Death attacks • Prevent SYN Flood attacks • UDP Flood attack prevention function • Prevent ICMP Flood attack function • Prevent IP Spoofing • Prevent fragmented packet attacks • Prevent TearDrop attacks • Prevent Fraggle attack feature |
|
| • Support IP address-based and interface connection number limiting | |
| • Support abnormal host traffic protection | |
| • Support IP address traffic statistics and ranking | |
| • Multi-ssid configuration • The SSID can be bound to different Vlans |
|
| Multiple WAN load balancing | • Load balancing based on telecom operator destination address • Support load balancing based on link bandwidth • Load balancing by user (IP address) • Support PBR specified line forwarding • Support end-to-end link detection and backup |
| Network Features | • Support for DHCP Server • Support NTP Client • DDNS support • IPTV support • IPv6 support |
| VPN | • IPSec VPN support • Support 100 IPSec connections • Support AH and ESP protocols • IKE automatically establishes SA • The ESP Support 3DES and AES encryption algorithms • Support MD5 and SHA-1 authentication algorithms • IKE main mode and aggressive mode • NAT-T traversal • Support IPSec connection configuration by domain name (DDNS) • Support L2TP VPN (LAC and LNS) |
| Management and maintenance | • Support WEB management pages • Support AolynkCloud network management platform remote management |
