S5560S-52F-EI - H3C S5560S-EI Enhanced Gigabit Switch :

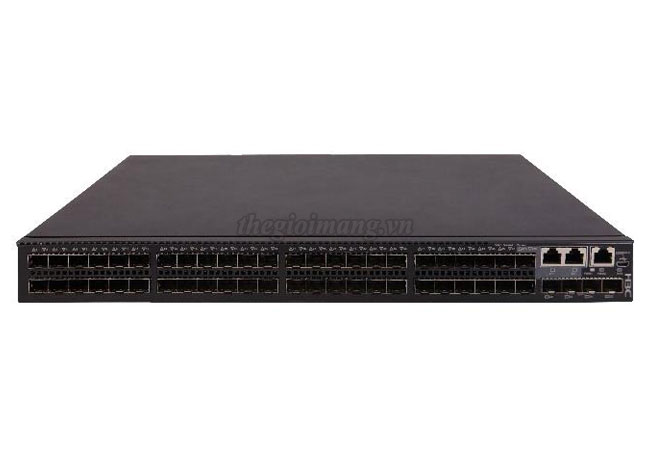

Thiết bị chuyển mạch Switch H3C S5560S-52F-EI
| Model | S5560S-52F-EI |
| Port Switching capacity | • 176Gbps |
| Box Switching capacity | • 598Gbps |
| Packet forwarding rate | • 132 Mpps |
| CPU | • 1 Core, 800MHz |
| Dimensions (H × W × D) | • 43.6 × 440 × 360 mm |
| Weight | • ≤ 8.5 kg |
| Flash/SDRAM | • 512MB/512MB |
| Management Ethernet ports | • 1 |
| Console ports | • 1 × RJ-45 console port • 1 × Micro-USB port • Only the Micro-USB port is available if you connect both ports. |
| Service ports | • 48 × 100/1000BASE-X SFP Ports • 4 × 10G SFP+ ports 4 × GE SFP ports |
| Stacking bandwidth | • 80Gbps |
| Rated input voltage | • AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz • DC: –36 VDC to –72 VDC |
| Min. power consumption | • Single 75 W AC input: 21 W • Dual 75 W AC inputs: 24 W • Single 150 W AC input: 25 W • Dual 150 W AC inputs: 30 W • Single 150 W DC input: 26 W • Dual 150 W DC inputs: 32 W |
| Max. power consumption | • Single 75 W AC input: 47 W • Dual 75 W AC inputs: 49 W • Single 150 W AC input: 49 W • Dual 150 W AC inputs: 56 W • Single 150 W DC input: 58 W • Dual 150 W DC inputs: 60 W |
| MTBF(Year) | • 153.41 |
S5560S-52F-EI : H3C S5560S-52F-EI Ethernet Switch with 48 100/1000 SFP Ports and 2 Combo Ports and 4*1G/10G BASE-X SFP Plus Ports
