S5560S-28S-PWR-EI - H3C S5560S-EI Enhanced Gigabit Switch :

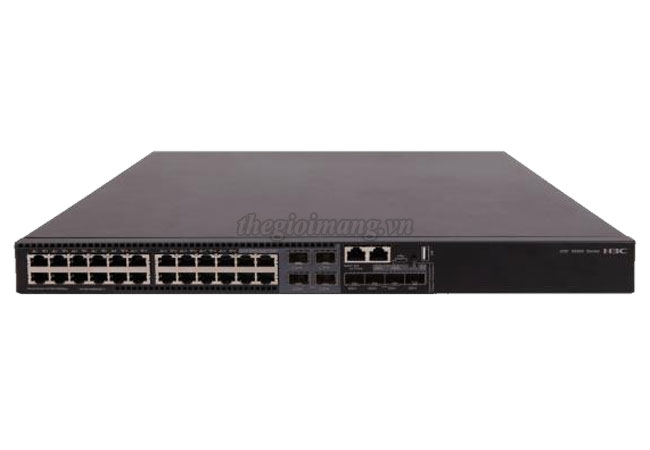

Thiết bị chuyển mạch Switch H3C S5560S-28S-PWR-EI
| Model | S5560S-28S-PWR-EI |
| Port Switching capacity | • 128Gbps |
| Box Switching capacity | • 598Gbps |
| Packet forwarding rate | • 96 Mpps |
| CPU | • 1 Core, 800MHz |
| Dimensions (H × W × D) | • 43.6 × 440 × 460 mm |
| Weight | • ≤ 8.5 kg |
| Flash/SDRAM | • 512MB/512MB |
| Management Ethernet ports | • 1 |
| Console ports | • 1 × RJ-45 console port • 1 × Micro-USB port • Only the Micro-USB port is available if you connect both ports. |
| Service ports | • 24 × 10/100/1000Base-T autosensing POE+ Ethernet ports (including 4 combo interfaces) • 4 × 10G SFP+ ports |
| Stacking bandwidth | • 80Gbps |
| Rated input voltage | • AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz • DC: –36 VDC to –72 VDC |
| Min. power consumption | • 27W |
| Max. power consumption | • Single 360 W AC input: 334 W (Including 280W POE) • Dual 360 W AC inputs: 678 W (Including 600W POE) • Single 560 W DC input: 573W (Including 480W POE) • Dual 560 W DC inputs: 918 W (Including 480W POE) • Single 720 W AC input: 676 W (Including 600W POE) • Dual 720 W AC inputs: 905W (Including 810W POE) • Single 1110 W AC input: 898W (Including 810W POE) • Dual 1110 W AC inputs: 905 W (Including 810W POE) |
| MTBF(Year) | • 89.35 |
S5560S-28S-PWR-EI : H3C S5560S-28S-PWR-EI Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*100/1000BASE-X SFP Combo Ports and 4*1G/10G BASE-X SFP Plus Ports
