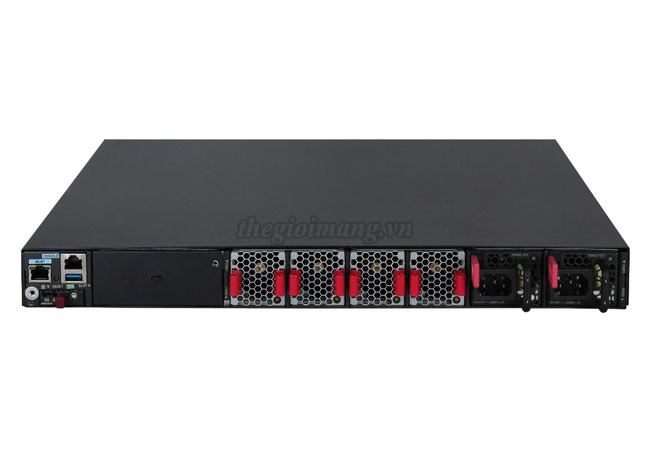

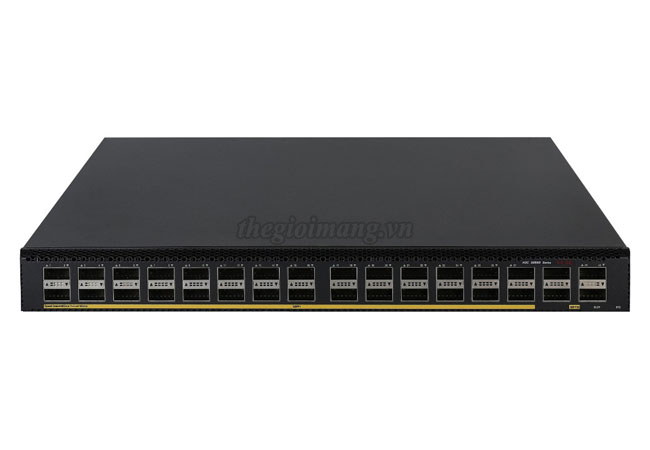

LS-6550X-32Q-HI - H3C S6550X-HI High-Density Switch :
Thiết bị chuyển mạch Switch H3C LS-6550X-32Q-HI
| Model | S6550X-32Q-HI |
| QSFP28 port | • 4 |
| QSFP+ port | • 28 |
| Port Switching Capacity | • 3.04T |
| Packet Forwarding Rate | • 2262Mpps |
| Weight (Full loaded) | • ≤ 9kg |
| Dimensions (H × W × D) | • 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
| CPU cores | • 4 |
| CPU frequency | • 2.0GHz |
| Packet Buffer | • 24M |
| Flash/SDRAM | • 4GB/8GB |
| Serial console port | • 1 |
| Out-of-band management port | • 1 × 10/100/1000Base-T |
| USB port | • 1 |
| Expansion slot | • 1 |
| AC-input voltage | • 100V to 240V |
| DC-input voltage | • 48V to 64V |
| Power consumption (static) | • Single AC: 81.54W • Single DC: 82.56W • Dual AC: 92.53W • Dual DC: 90.28W |
| Power consumption (at full load) | • Single AC: 325.7W • Single DC: 334.1W • Dual AC: 323.3W • Dual DC: 339.8W |
| Power module slot | • 2 |
| Fan tray slot | • 4 |
| Air flow direction | • From front to rear or from rear to front |
| Operating temperature | • -5~45℃ |
| Operating humidity | • 5%～ 95% |
| Performance Specification | |
| ARP entries | • 96K max |
| IPv4 routing entries | • 504K max |
| IPv6 unicast routing entries | • 252K max |
| MAC address entries | • 256K max |
| Jumbo frame length | • 10000 Bytes |
LS-6550X-32Q-HI : H3C S6550X-32Q-HI L3 Ethernet Switch with 28*QSFP Plus Ports,4*QSFP28 Ports and 1*Slot,Without Power Supplies
