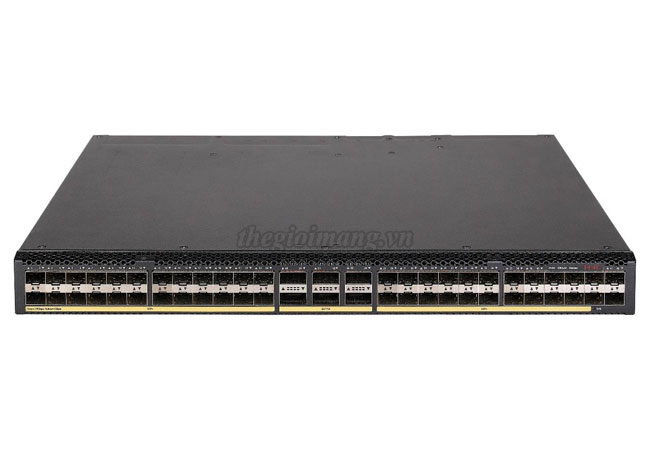

LS-6520X-54HF-HI - H3C S6520X-HI Aggregation 10GE Switch :
Thiết bị chuyển mạch Switch H3C LS-6520X-54HF-HI
| Model | LS-6520X-54HF-HI |
| Hardware Specifications | |
| CPU | • Dual Core, 1.6GHz |
| Port Switching capacity | • 2160G |
| Packet forwarding rate | • 1050Mpps |
| System Switching Capacity | • 2.56Tbps |
| Dimensions (H × W × D) | • 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | • ≤ 6.5 kg |
| Flash/SDRAM | • 1GB/2GB |
| Packet Buffer | • 12M |
| Console ports | • 1 |
| Management Ethernet ports | • 1 |
| USB ports | • 1 |
| Micro USB ports | • 1 |
| SFP+ | • 48 |
| QSFP+ | - |
| QSFP28 | • 6 |
| Expansion slots | N/A |
| Compatible interface modules | N/A |
| Input voltage range | • Rated voltage range: 100 to 240 VAC @ 50/60 Hz • Max voltage range: 90 to 264 VAC @ 47to 63 Hz |
| Power Supply slots | • 2 |
| Fan trays | • 3 hot swappable fan trays, invertible airflow |
| Power consumption | • MIN: Single AC: 36W Dual AC: 44W • MAX: Single AC: 177W Dual AC：176W |
| Operating temperature | • 0ºC to 45ºC (32°F to 113°F) • From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | • -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | • 5% RH to 95% RH, non-condensing |
| MTBF(Year) | • 60.8 |
| MTTR(Hour) | • 1 |
| Performance Specification | |
| MAC address entries(max) | • 262144 |
| VLAN table | • 4094 |
| VLAN interface | • 1024 |
| IPv4 routing entries(max) | • 131072 |
| IPv4 ARP entries(max) | • 131072 |
| IPv4 ACL entries | • Ingress: 4096 • Egress: 512 |
| IPv4 multicast L2 entries | • 4000 |
| IPv4 multicast L3 entries | • 4000 |
| IPv6 unicast routing entries(max) | • 65792 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 4096 • Egress: 512 |
| IPv6 ND entries(max) | • 65792 |
| IPv6 multicast L2 entries | • 2000 |
| IPv6 multicast L3 entries | • 2000 |
| Jumbo frame length | • 10000 |
| Max Stacking Member | • 9 |
| Max Stacking Bandwidth | • 480Gbps |
LS-6520X-54HF-HI : H3C S6520X-54HF-HI L3 Ethernet Switch with 48 SFP Plus Ports and 6 QSFP28 Ports,Without Power Supplies
Data sheet H3C S6520X-HI Series Advanced Aggregation 10GE Switches
