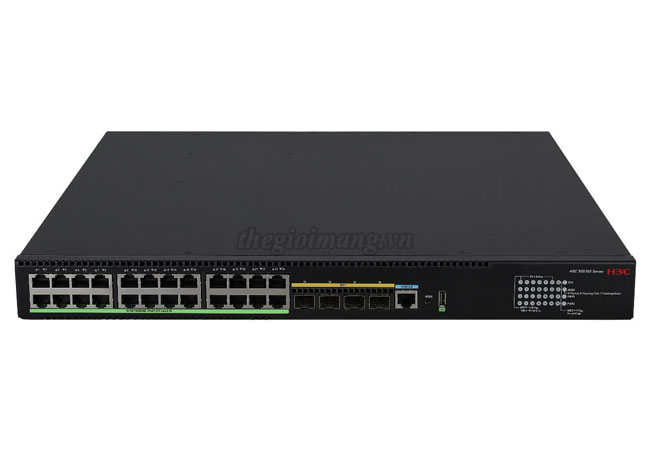

LS-5590-24UXM4YC-EI-GL - H3C S5590-24UXM4YC-EI L3 Ethernet Switch :
Thiết bị chuyển mạch Switch H3C LS-5590-24UXM4YC-EI-GL
| Model | S5590-24UXM4YC-EI |
| Hardware Specifications | |
| Port Switching Capacity | • 792Gbps |
| Packet Forwarding Capacity | • 462Mpps |
| Switching Capacity | • 2.4Tbps |
| Dimensions (W×D×H) (unit: mm ) | • 440 × 400 × 44 |
| weight | • ≤ 6.8kg |
| Console port | • 1 |
| Flash/SDRAM | • 4G/2G |
| Ethernet port for management | • 10/100/1000Base-T electrical port: 1 |
| USB port | • 1 |
| 10/100/1000BASE-T auto-sensing Ethernet port (PoE++) | • 16 |
| 1G/2.5G/5G/10G Base-T Ports (PoE++) | • 8 |
| 10G/25GBase-X SFP28 | • 4 |
| expansion card slot | • 1 |
| PoE | • PoE++ support |
| Expansion board | • 2-port 10G S FP+ interface card • 4-port 10G S FP+ interface card • 4-port 25GE SFP28 interface card • 2-port 40GE QSFP+ interface card |
| Input voltage | • AC: Rated voltage range: 100 to 240V AC: 50/60Hz |
| Machine leakage current | • Meet UL60950-1/EN60950-1/IEC60950-1 /GB4943 standard |
| Working temperature | • -5 ºC to 45 ºC |
| Relative humidity of working environment (non-condensing) | • 5 % to 95 % |
| Performance Specification | |
| MAC address entries | • max 320K |
| VLAN table | • 4K |
| VLAN interface | • 4093 |
| IPv4 routing entries | • max 80K |
| IPv4 ARP entries | • 65015 |
| IPv4 ACL entries | • Ingress: 3.75K • Egress: 512 |
| IPv4 multicast L2 entries | • 8K |
| IPv4 multicast L3 entries | • 4K |
| IPv6 unicast routing entries | • 32K |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 1.87K • Egress: 256 |
| IPv6 ND entries | • 32K |
| IPv6 multicast L2 entries | • 8K |
| IPv6 multicast L3 entries | • 4K |
| Jumbo frame length | • 13312 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 480Gbps |
LS-5590-24UXM4YCEI-GL : H3C S5590-24UXM4YC-EI L3 Ethernet Switch with 16*10/100/1000Base-T Ports (PoE++), 8*1G/2.5G/5G/10G Base-T Ports (PoE++), 4*10G/25GBase-X SFP28 Ports, and 1 Slot, Without Power Supplies
Data sheet H3C S5590-EI Series Converged Hybrid Multigiga Switches
