LS-S5590-48P6XC-EI-GL - H3C S5590-EI Layer 3 Gigabit Switch :

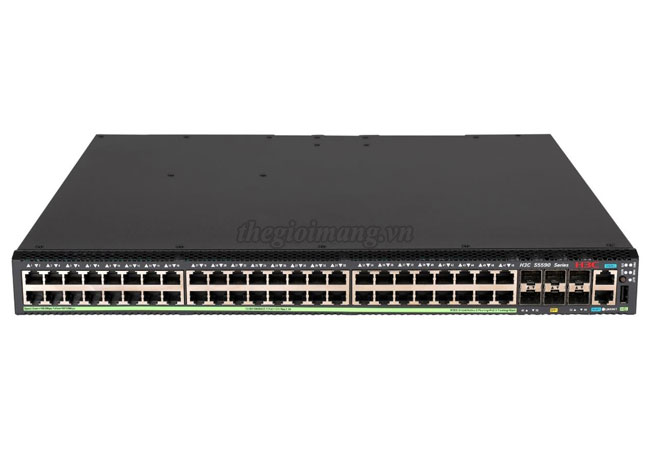

Thiết bị chuyển mạch Switch H3C LS-S5590-48P6XC-EI-GL
| Model | LS-S5590-48P6XC-EI-GL |
| Hardware Specifications | |
| CPU | • Dual Core, 1.2GHz |
| Flash/SDRAM | • 4G/2G |
| Switching Capacity | • 2.4Tbps |
| Latency (64byte/µs) | • GE: < 5µs • 10GE < 3µs |
| Port Switching Capacity | • 616Gbps |
| Packet Forwarding Rate | • 462Mpps |
| Dimensions (W×D×H) (unit: mm ) | • 440×400×44 |
| Weight | • ≤ 7kg |
| Console Port | • 1 |
| Ethernet Port for Management | • 10/100/1000Base-T electrical port: 1 |
| USB Port | • 1 |
| 10/100/1000BASE-T auto-sensing Ethernet Port | • 48 |
| SFP port | - |
| SFP+ port | • 6 |
| Expansion Card Slot | • 1 |
| PoE | • PoE + Support |
| Input Voltage | • AC: - Rated voltage range: 100 to 240V AC: 50/60Hz - Maximum voltage range: 90V～290V AC, 47～63Hz • HVDC: - Rated voltage: 240V DC - Maximum voltage range: 180V～320V DC |
| 80PLUSPlatinum | • Y (80 PLUS Platinum) |
| Power Consumption | • MIN - Single AC：52W - Dual AC: 59W • MAX - Single AC：945W (PoE 770W) - Dual AC: 1745W (PoE 1440W) |
| MTBF(Year) | • 28.62 |
| MTTR(Hour) | • 1 |
| Machine Leakage Current | • Meet UL60950-1/EN60950-1/IEC60950-1 /GB4943 standard |
| Working Temperature | • -5 ºC to 45 ºC |
| Relative Humidity of Working Environment | • 5 % to 95 % (non-condensing)) |
| Performance Specification | |
| MAC address entries(maximum) | • 320K |
| VLAN table（Active VLAN） | • 4K |
| VLAN interface | • 4093 |
| IPv4 routing entries(maximum) | • 80K |
| IPv4 ARP entries(maximum) | • 64K |
| IPv4 ACL entries | • IN: 3.75K • EG: 512 |
| IPv4 multicast L2 entries | • 8K |
| IPv4 multicast L3 entries | • 4K |
| IPv6 unicast routing entries(maximum) | • 32K |
| IPv6 ND entries | • 32K |
| IPv6 multicast L2 entries | • 8K |
| IPv6 multicast L3 entries | • 4K |
| QOS forward queues | • 8 |
| Jumbo frame length | • 13312 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 480Gbps |
LS-S5590-48P6XC-EI -GL : H3C S5590-48P6XC-EI L3 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports,6*1G/10G BASE-X SFP Plus Ports,and 1*Slot,Without Power Supplies Switch
